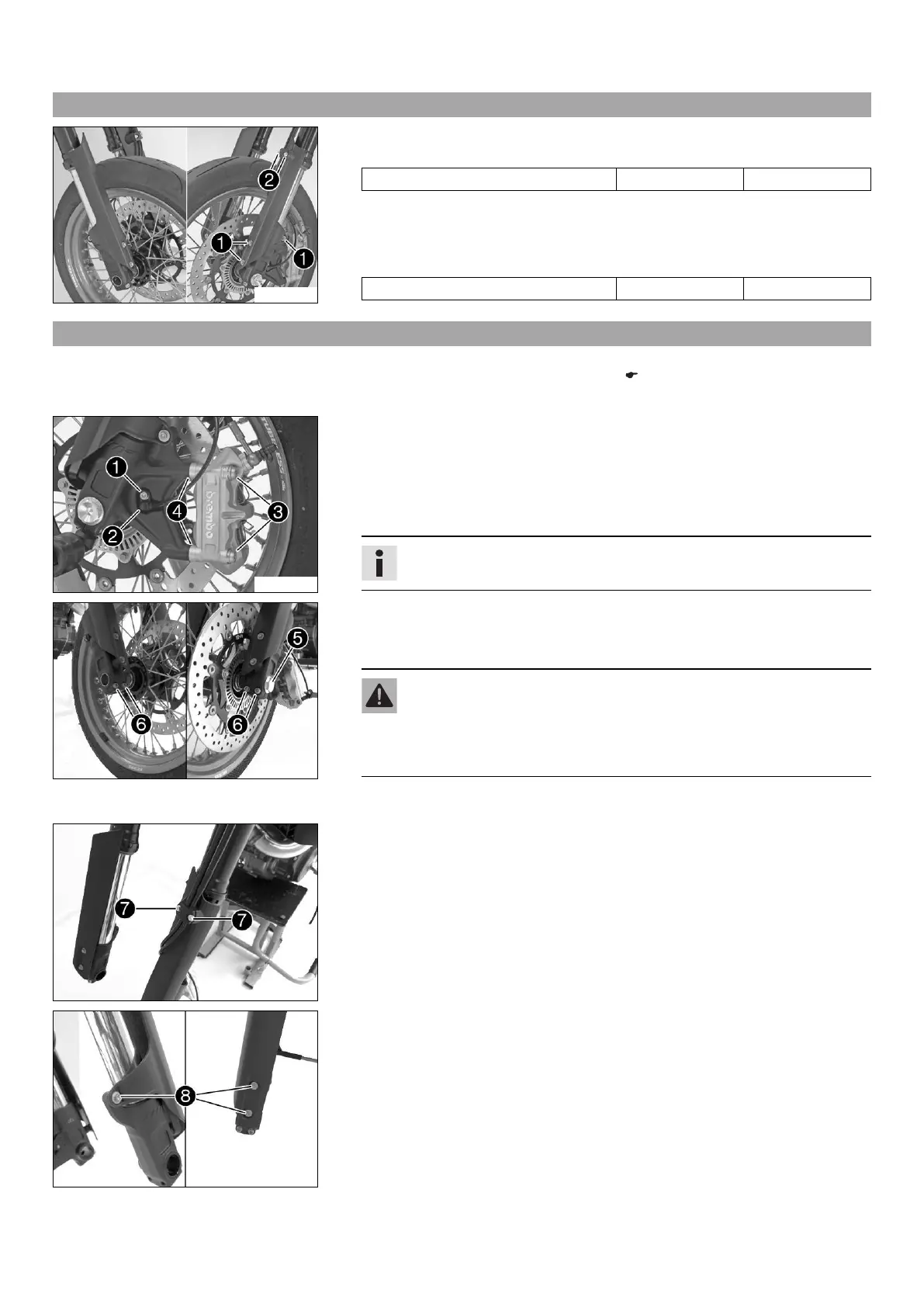

6 FORK, TRIPLE CLAMP 16
6.6 Installing the fork protector
101986-11
–
Position the fork protection on the left fork leg. Mount and tighten screws
.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
– Position the brake line and cable harness. Put the clamp on, mount and tighten
screws
.
– Position the fork protection on the right fork leg. Mount and tighten the screws.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
6.7 Removing fork legs
Preparatory work
– Raise the motorcycle with the work stand. ( p. 11)
– Tie the rear of the vehicle down.
101995-10
Main work
–
Remove screw
and pull wheel speed sensor
out of the hole.
–
Remove screws
and spacers
.
– Press back the brake linings with a light lateral tilting of the brake caliper on the
brake disc. Pull the brake caliper carefully back from the brake disc and hang it to
one side.
Info
Do not pull the handbrake lever when the brake caliper is removed.
G00827-10
–
Loosen screw
and screws
.
–
Unscrew screw
about 6 turns and press your hand on the screw to push the
wheel spindle out of the axle clamp. Remove screw
.
Warning
Danger of accidents Reduced braking effect caused by damaged brake
discs.
– Always lay the wheel down in such a way that the brake discs are not
damaged.
– Holding the front wheel, withdraw the wheel spindle. Take the front wheel out of
the fork.
G00828-10
–
Remove screws
and the clamp. Take the brake line and wiring harness out of
the holder.
G00832-10
–
Remove screws
. Take off the fork protector.
