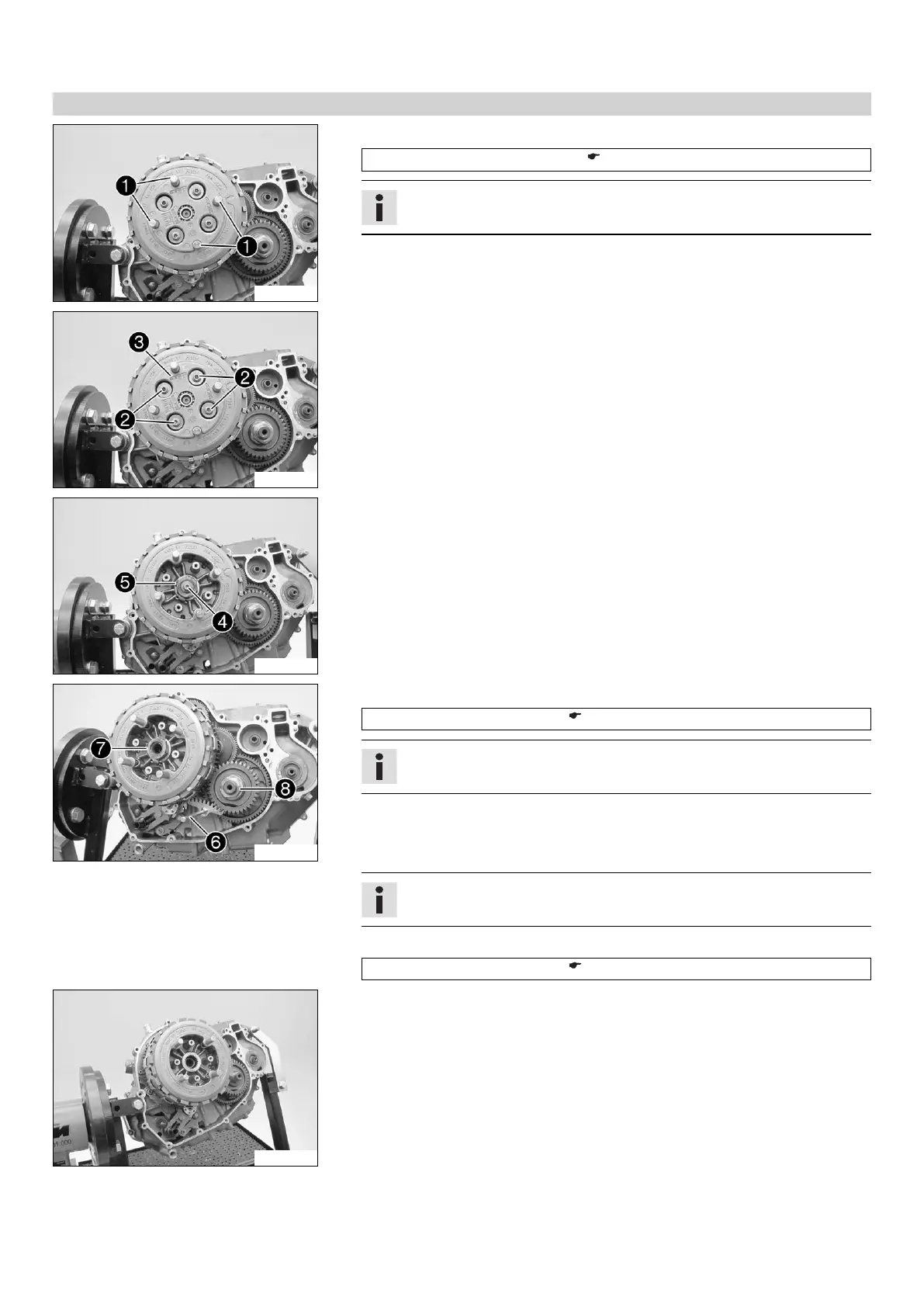

16.3.23 Removing the clutch basket
305576-10
–
Clamp the antihopping clutch with special tool

.
Assembly screws (75029033000) ( p. 233)
Info
Apply the special tool with the hand only, do not use another tool.
305577-10
–
Loosen screws

diagonally and remove them with their spring retainers and
clutch springs.
–
Remove pressure cap

.
305578-10
–
Remove pressure piece

.
–
Bend open lock washer

.
305579-10
–
Hold the clutch basket with special tool

.
Gear segment (75029081000) ( p. 236)
Info
Make sure that the crankshaft is not blocked.
–
Remove nut

.
– Remove the lock washer.
–
Remove nut

.
Info
Left-handed thread!
– Remove the special tool.
Gear segment (75029081000) ( p. 236)
305580-10
– Take out the antihopping clutch.
