16 ENGINE 115

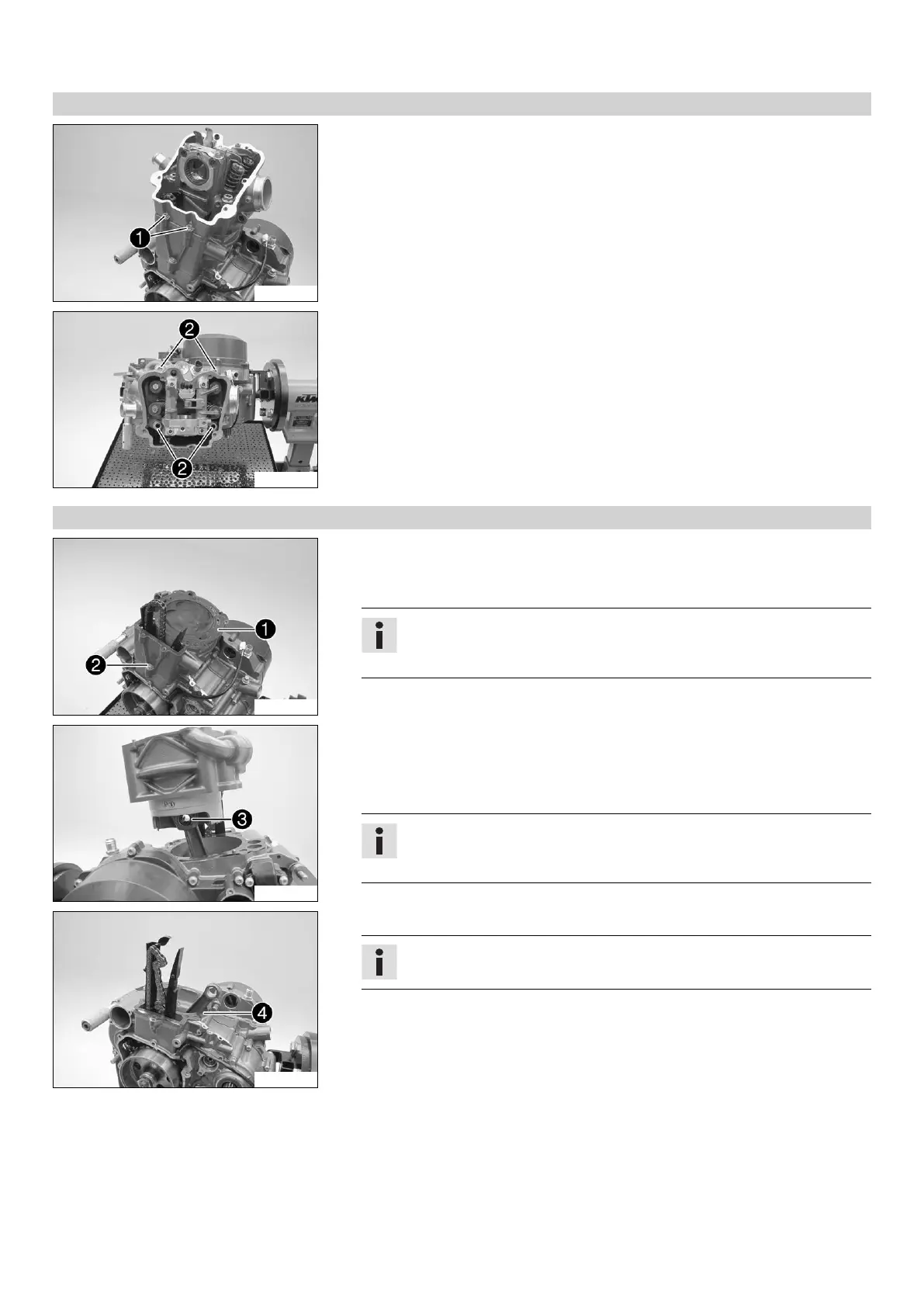

16.3.14 Removing the cylinder head
305544-10
–
Remove screws

.
305545-10
–
Loosen screws

diagonally and remove them.
– Take off the cylinder head.
16.3.15 Removing the piston
305546-10
–
Take off the cylinder head gasket

.
–
Remove screw

.
– Push the cylinder upward.
Info
Push the cylinder upward only far enough to allow removal of the piston pin.
Ensure that the two grooved pins remain in place.
305551-10
–
Remove piston pin retainer

.
– Remove the piston pin.
– Take off the cylinder with the piston.
– Push the piston upward out of the cylinder.
Info
If no other work is required on the cylinder and the piston, you can leave the
piston in the cylinder.
305552-10
–
Take off the cylinder base gasket

.
Info
Ensure that the two grooved pins remain in place.
