20 LUBRICATION SYSTEM 181

20.1 Oil circuit

402053-60

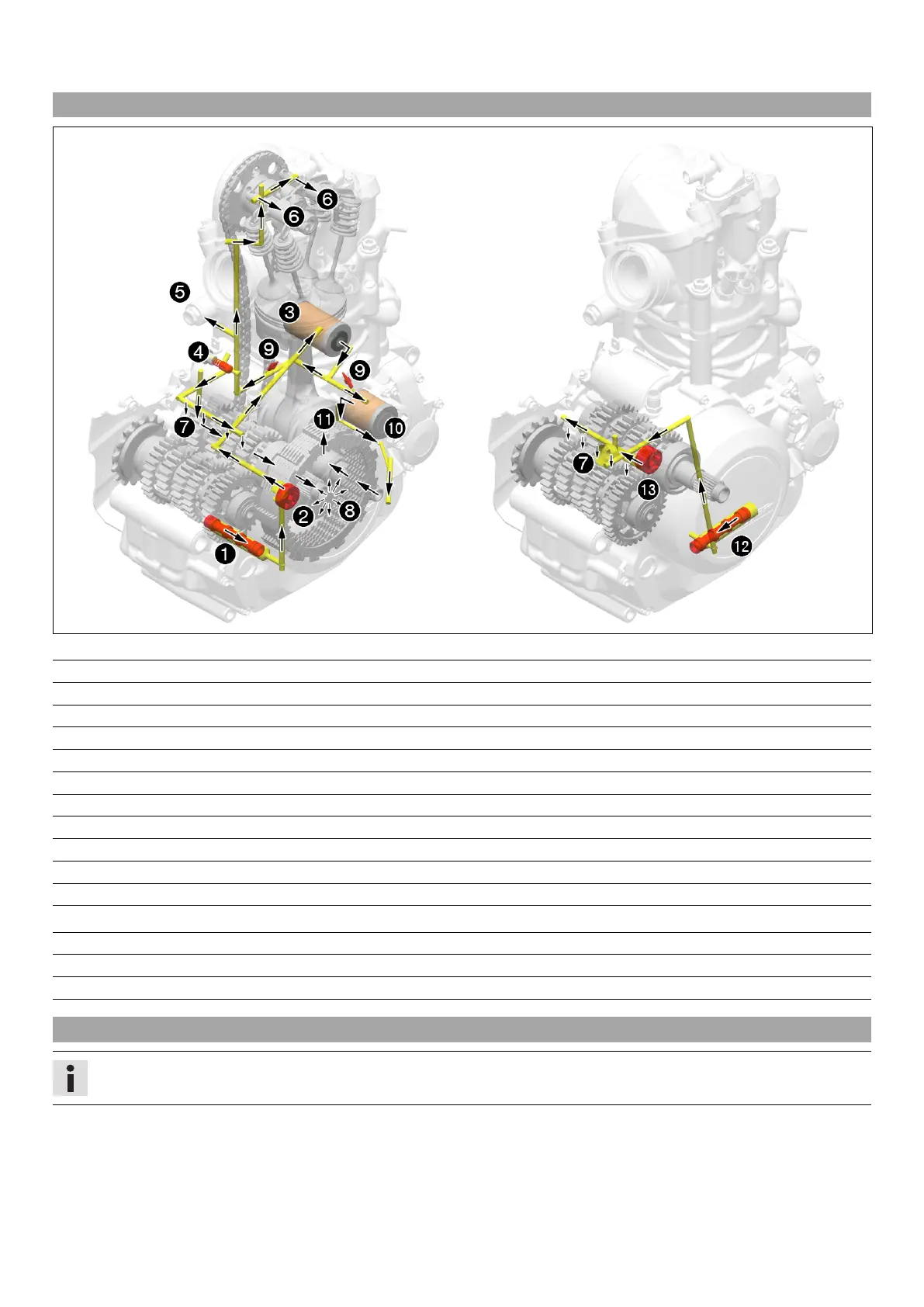

Oil circuit of force pump

1 Oil screen

2 Force pump

3 Oil filter

4 Oil pressure regulator valve

5 Timing chain tensioner

6 Rocker arm shaft

7 Transmission

8 Clutch

9 Oil jet for piston cooling

10 Oil filter

11 Oil nozzle for conrod bearing lubrication

Oil circuit of suction pump

12 Oil screen

13 Suction pump

7 Transmission

20.2 Checking the engine oil level

Info

The engine oil level must be checked when the engine is warm.

Condition

The engine is at operating temperature.

Preparatory work

– Stand the motorcycle upright on a horizontal surface.
