12 WHEELS 77
12.7.5 Checking the chain tension
Warning
Danger of accidents Danger caused by incorrect chain tension.
– If the chain is too taut, the components of the secondary power transmission (chain, engine sprocket, rear sprocket, bear-
ings in the transmission and in the rear wheel) will be under additional load. In addition to premature wear, this can cause
the chain or the countershaft of the transmission to break in extreme cases. If the chain is too loose, however, it may fall
off the engine sprocket or rear sprocket and block the rear wheel or damage the engine. Ensure that the chain tension is
correct and adjust it if necessary.

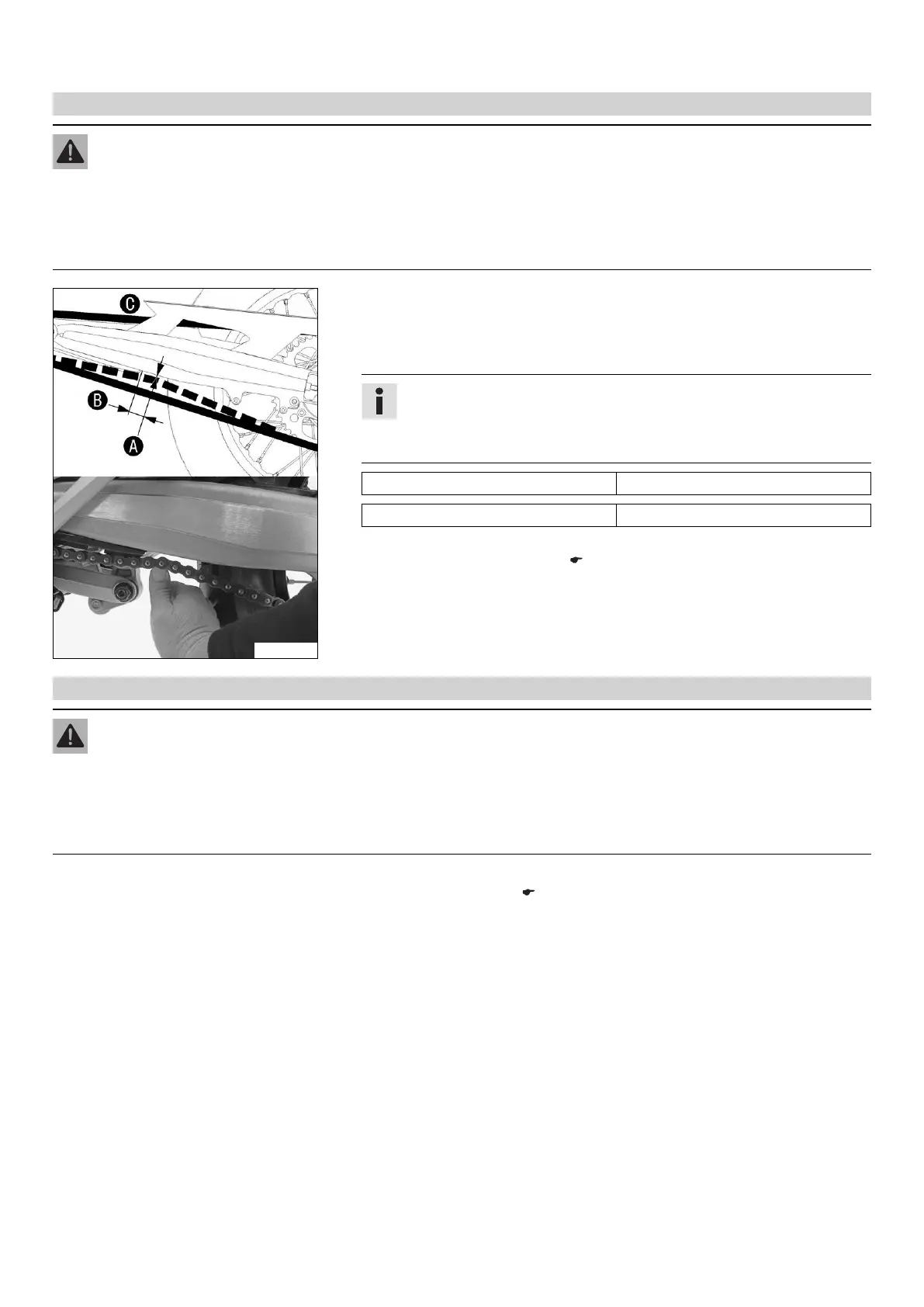

100249-10
– Lean the motorcycle on the side stand.
– Shift gear to neutral.
–
Push the chain upward at a distance
from the chain sliding guard and deter-
mine the chain tension
.
Info
The upper chain section
must be taut.
Chain wear is not always even. Repeat this measurement at different chain
positions.
Chain tension 5 mm (0.2 in)
Distance to chain sliding guard 30 mm (1.18 in)
» If the chain tension does not meet specifications:
– Adjust the chain tension. ( p. 77)
12.7.6 Adjusting the chain tension
Warning
Danger of accidents Danger caused by incorrect chain tension.
– If the chain is too taut, the components of the secondary power transmission (chain, engine sprocket, rear sprocket, bear-
ings in the transmission and in the rear wheel) will be under additional load. In addition to premature wear, this can cause
the chain or the countershaft of the transmission to break in extreme cases. If the chain is too loose, however, it may fall
off the engine sprocket or rear sprocket and block the rear wheel or damage the engine. Ensure that the chain tension is
correct and adjust it if necessary.
Preparatory work
– Check the chain tension. ( p. 77)
