KTM 2014 690 SMC R EU User Manual

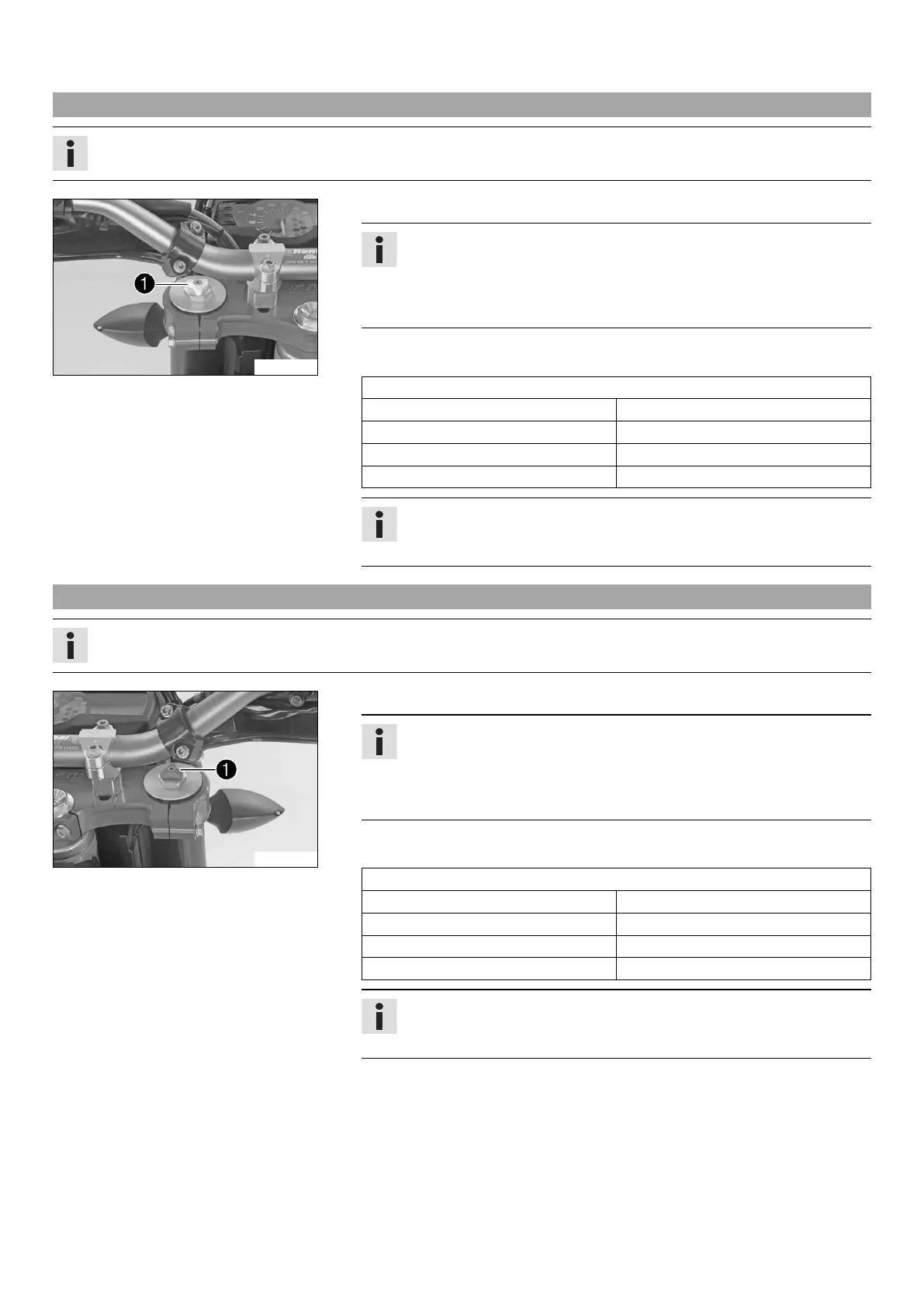

6 FORK, TRIPLE CLAMP 14
6.1 Adjusting the compression damping of the fork
Info
The hydraulic compression damping determines the fork suspension behavior.
101981-10
–
Turn the white adjusting screw

all the way clockwise.
Info
Adjusting screw

is located at the upper end of the left fork leg.
The compression damping is located in the left fork leg COMP (white adjust-
ing screw). The rebound damping is located in the right fork leg REB (red
adjusting screw).
– Turn back counterclockwise by the number of clicks corresponding to the fork type.
Guideline
Compression damping
Comfort 20 clicks
Standard 15 clicks
Sport 10 clicks
Full payload 10 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce damp-
ing.
6.2 Adjusting the rebound damping of the fork
Info
The hydraulic rebound damping determines the fork rebound behavior.
101982-10
–
Turn the red adjusting screw

all the way clockwise.
Info
Adjusting screw

is located at the upper end of the right fork leg.
The rebound damping is located in the right fork leg REB (red adjusting
screw). The compression damping is located in the left fork leg COMP (white
adjusting screw).
– Turn back counterclockwise by the number of clicks corresponding to the fork type.
Guideline
Rebound damping
Comfort 20 clicks
Standard 15 clicks
Sport 10 clicks
Full payload 10 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce damp-
ing.
