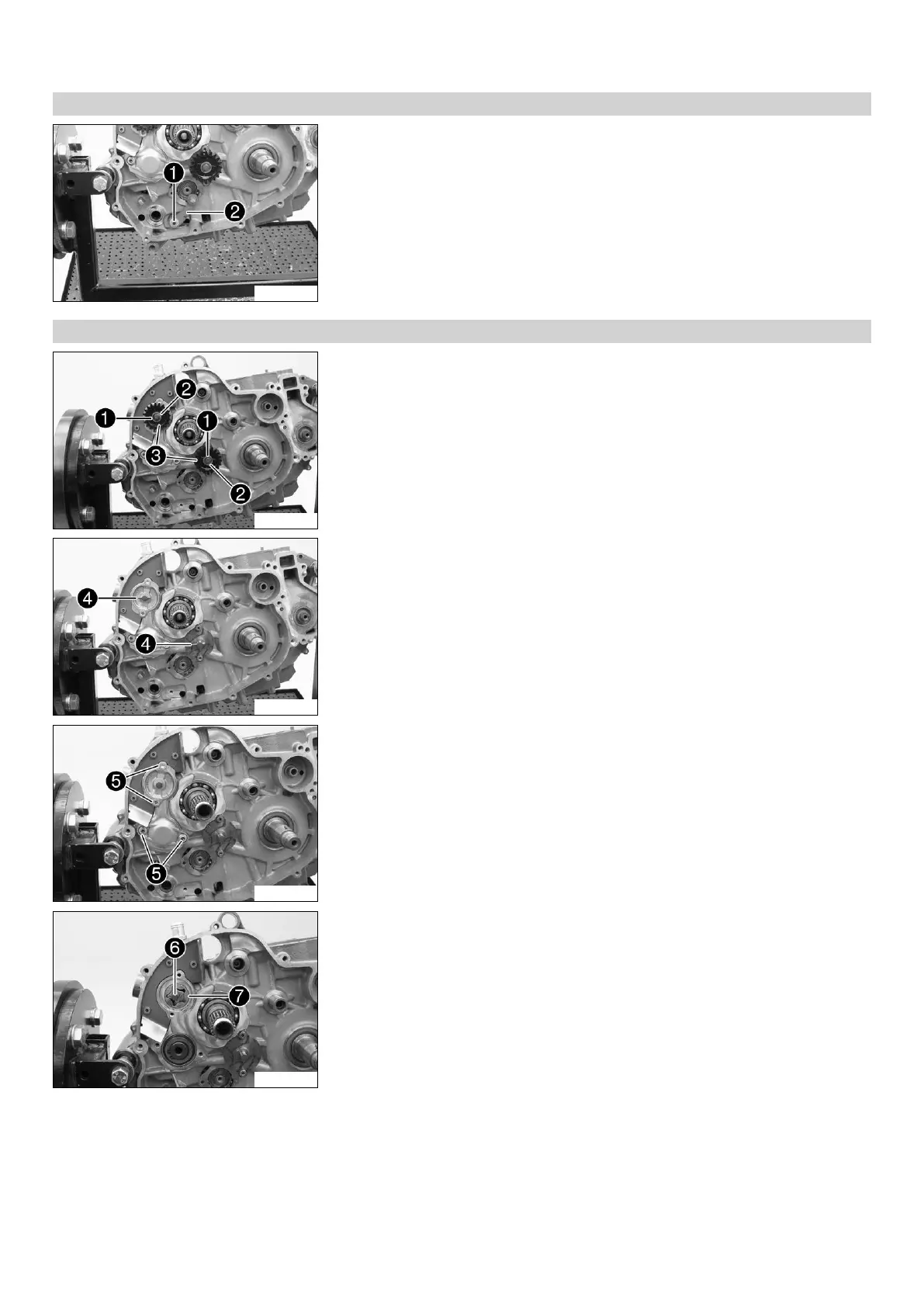

16 ENGINE 122
16.3.28 Removing locking lever
305622-10
–
Remove screw
.
–
Take off locking lever
with the sleeve and spring.
16.3.29 Removing the oil pumps
305624-10
–
Remove lock washers
and normal washers
from both oil pumps.
–
Take off the oil pump gear wheels
.
305625-10
–
Remove pins
and washers.
305626-10
–
Remove screws
.
– Take off the oil pump cover.
305627-10
–
Remove oil pump shaft
with the internal rotors.
–
Remove external rotor
.
