9 EXHAUST 54
9.2 Installing the manifold
G00813-11

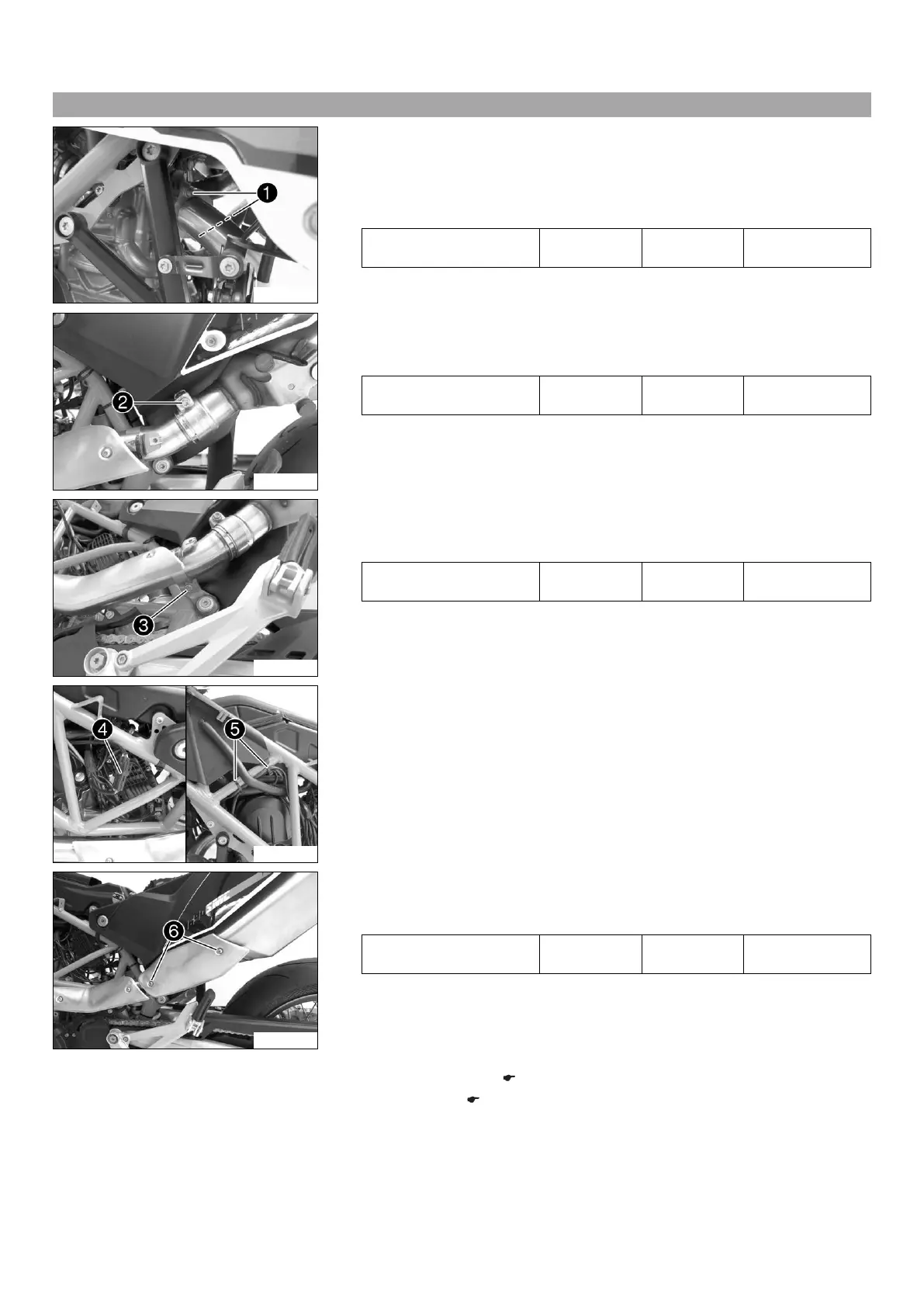

Main work
– Position the manifold with the seals.
– Position the spacer.
–
Mount and tighten nuts
with the gasket.
Guideline
Nut, manifold on cylinder
head
M8 25 Nm
(18.4 lbf ft)
Copper paste
G00814-11
– Position the screw clamp.
–
Tighten screw
.
Guideline
Screw, main silencer
clamp
M8 12 Nm
(8.9 lbf ft)
Copper paste
G00815-12
– Position the screw clamp.
–
Mount and tighten screw
.
Guideline
Screw, exhaust clamp M8 12 Nm
(8.9 lbf ft)
Copper paste
G00811-11
–
Connect plug-in connector
of the lambda sensor. Route the wiring harness with-
out tension and secure it with cable binders
.
G00812-11
– Position the exhaust heat guard.
–
Mount and tighten screws
.
Guideline
Screw, exhaust heat shield M5 8 Nm
(5.9 lbf ft)
Loctite
®
243™
Finishing work
– Mount the side cover. ( p. 62)
– Mount the seat. ( p. 62)
