16 ENGINE 145
300124-10

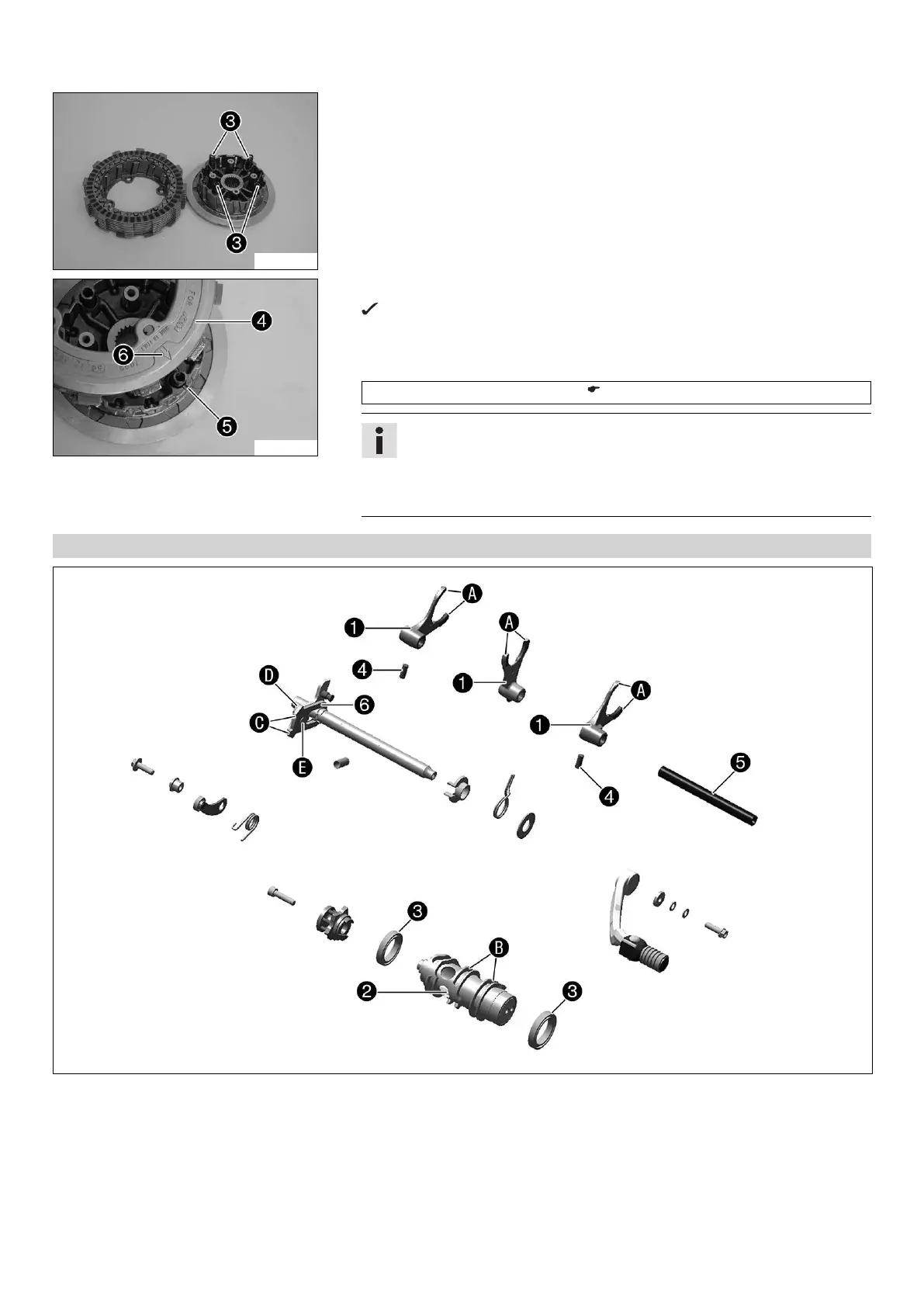

– Position the trimmed clutch facing disc with the recess for the pretension ring on
the outer clutch hub.
– Beginning with the coated intermediate clutch disc, position all further clutch fac-
ing discs and intermediate clutch discs alternately.
–
Position the release springs
.
300125-10
–
Push on the outer clutch hub
and pay attention to the markings.
The arrow
of the outer clutch hub must point to the notch
of the inner
clutch hub.
– Push the two clutch hubs firmly together and have an assistant screw in the special
tool.
Assembly screws (75029033000) ( p. 233)
Info
Apply the special tool with the hand only, do not use another tool.
Apply the special tool only firmly enough so that the clutch facing discs
can still be turned against each other since they still have to be aligned for
mounting in the clutch basket.
16.4.32 Checking the shift mechanism
305597-10
–
Check shift forks
(see
) for damage and wear (visual check).
» If there is damage or wear:
– Change the shift fork and gear wheel pair.
–
Check shift grooves
of shift drum
for wear.
» If the shift groove is worn:
– Change the shift drum.
