Multi-function Compact Inverter 3G3MX2-EV2 User’s Manual (I666-E1)

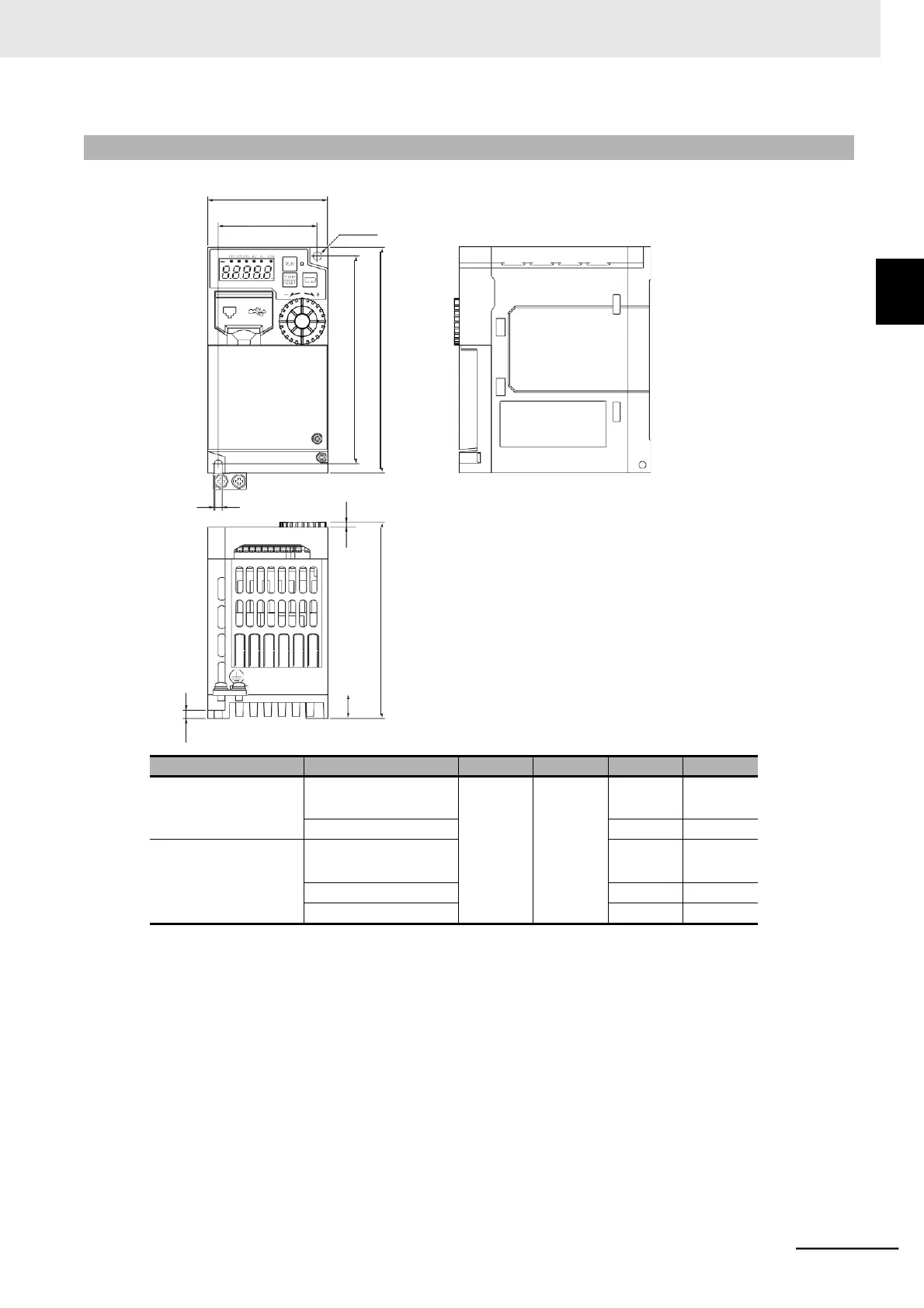

1-3-2 External Dimensions
Power supply
Model
W [mm]
H [mm]
D [mm]
D1 [mm]
Single-phase 200 V
3G3MX2-AB001-EV2
3G3MX2-AB002-EV2
68
128
112
13.5
3G3MX2-AB004-EV2
125.5
27
3-phase 200 V
3G3MX2-A2001-EV2
3G3MX2-A2002-EV2
112
13.5
3G3MX2-A2004-EV2
125.5
27
3G3MX2-A2007-EV2
148.5
50
68 (W)
56
4.5
4.5
1
1-3 Specifications
1-3-2 External Dimensions
4.5
(3)
D1
D
118
128 (H)
