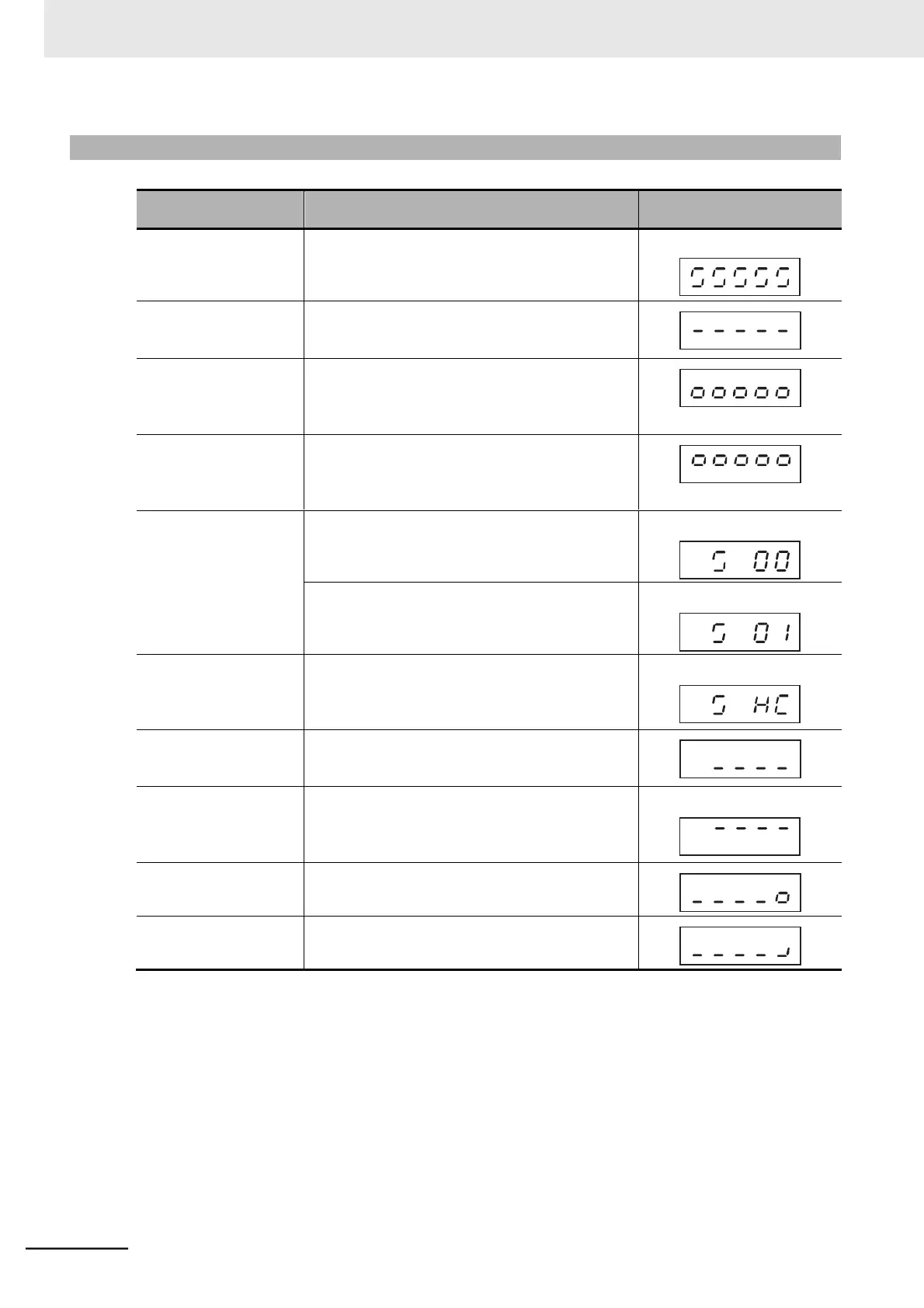

10-1-5 Other Indications on Digital Operator
Name
Description
Alarm code on
Digital Operator
During reset
This indication appears when the input terminal allo-
cated to the reset (RS) is ON, or when a trip state is
reset via the STOP/RESET key.
Rotating
Undervoltage standby
This indication appears when the inverter is in an
undervoltage standby state, or when the power sup-
ply is shut off.
Restart during
momentary power
interruption/Restart on
trip
This indication appears while restart operation is in
progress.
Limited RUN command
This indication appears when the RUN command is
input from the control terminal, with the RUN direc-
tion limited by the RUN Direction Limit Selection
(b035) setting.
Setting initialization
This indication appears while the parameter settings
are initialized.
[ JP]: Pattern 0 setting
Only left most digit rotating
[ EU]: Pattern 1 setting
Only left most digit rotating
Trip monitor initialization
This indication appears while the trip monitor data is
initialized.
Only left most digit rotating
No data
This indication appears when there is no applicable
data. (This indicates that the fault monitor has no trip
data.)
Communications error
This indication appears on the remote Digital Opera-
tor if an error occurs between a remote Digital Oper-
ator and the Inverter. The indication on the Inverter
does not change.
Blinking
Auto-tuning OK
This indication appears when auto-tuning is com-
pleted normally.
Auto-tuning NG
This indication appears when auto-tuning fails.
