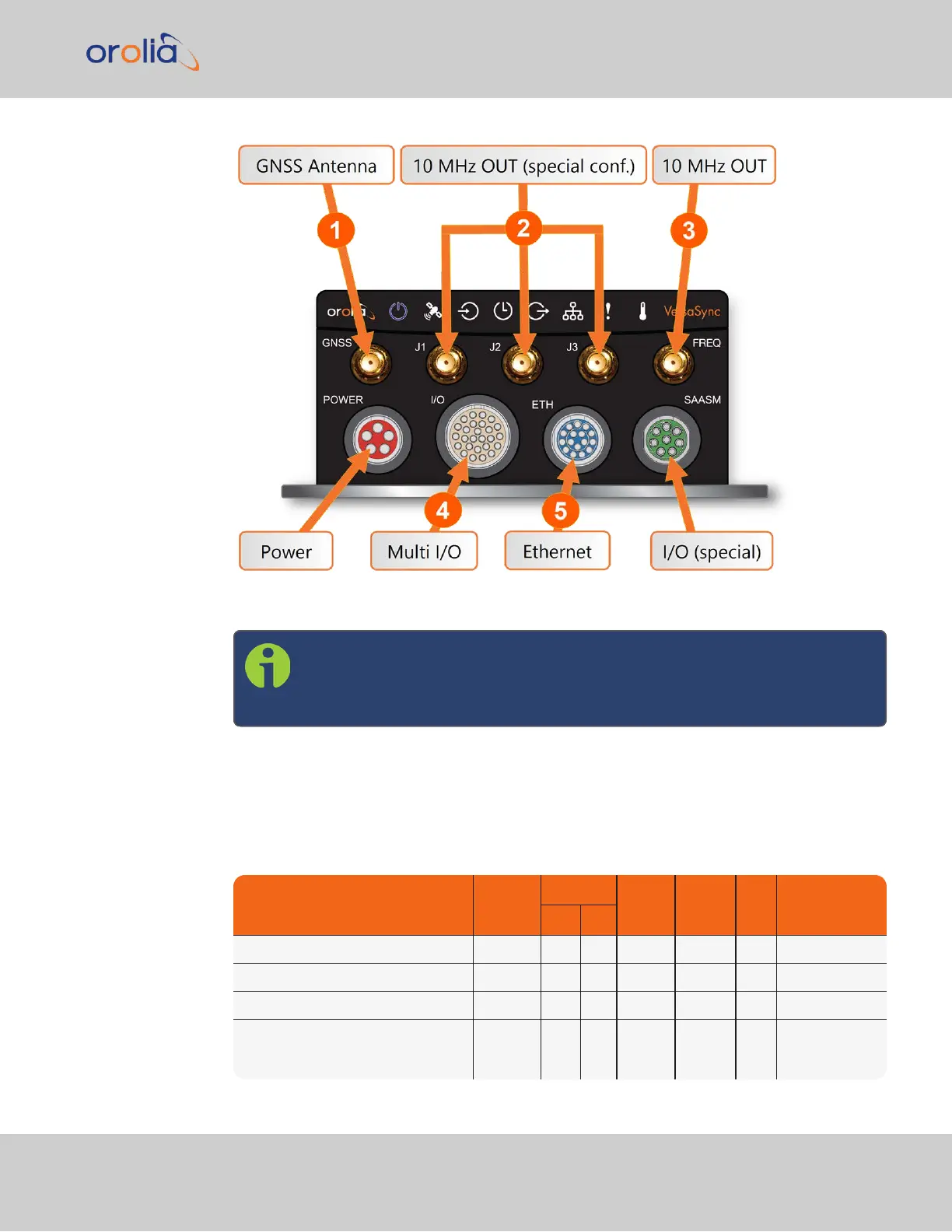

Figure 1-2: VersaSync front panel connectors
Note: VersaSync is highly configurable and the connections can be adjusted
many different ways. Your interface configuration may vary based on
options you selected during the ordering process.
The following interfaces are provided:
1.4.1 Input Timing Interfaces
Table 1-3:
VersaSync inputs (default setup)
INPUTSIGNAL
Total
available
DCLS
RS-
232
RS-
485
ETH
Connector No.
(see Fig.
above)
TTL 10V
1PPS (1) 1 4
ASCII/HaveQuick/IRIG B (1) 1 4
ASCII/NMEA (1) 1 4
Network Interface
(10/100/1000bT):
NTP (Stratum 2), PTP
(2) 1 5
