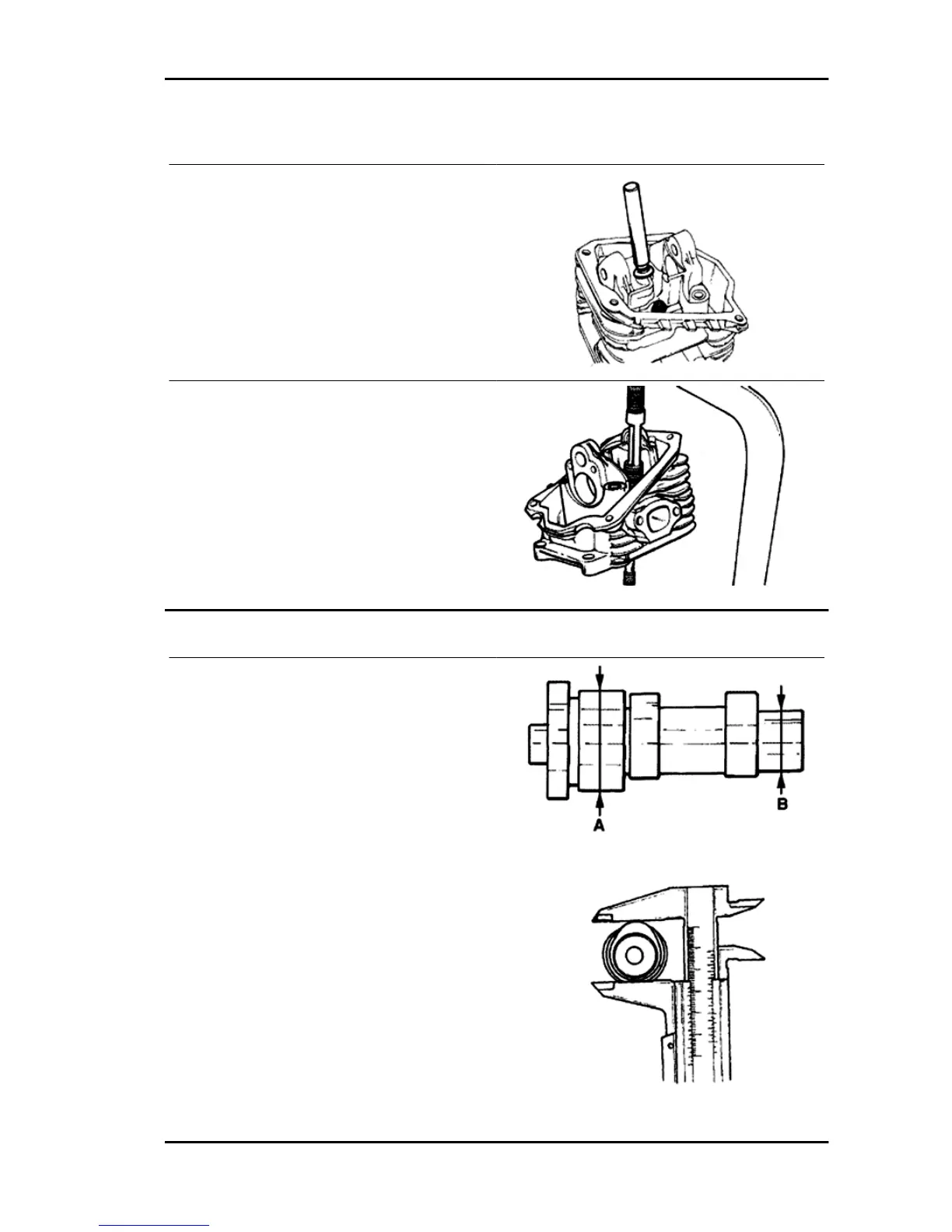

Refitting the valves
- Lubricate the valve guides with engine oil.
- Place the lower plates of the valve spring on the
head.
- Use the punch to fit the 2 sealing rings one at a
time.
Specific tooling
020306Y Punch for assembling valve sealing
rings
- Fit the valves, the springs and the spring retaining
caps. Using the appropriate tool with adapter 11,
compress the springs and insert the cotters in their
seats.
Specific tooling
020382Y Valve cotters equipped with part 012
removal tool
020382Y011 adapter for valve removal tool
Inspecting the cam shaft
- Inspect the cam shaft for signs of abnormal wear
on the cams.
Characteristic
Standard diameter Bearing A
Ø: 32.5 mm -0.025 -0.050 mm
Standard diameter Bearing B
20 -0.020 -0.041 mm
Minimum admitted diameter bearing A
Ø: 32.440 mm
Minimum admitted diameter bearing B
Ø: 19.950 mm
Inlet cam height
27.512 mm
Outlet cam height
27.212 mm
Liberty 125 - 200 4tempi Engine
ENG - 103

PIAGGIO Liberty 125 Specifications

General

Displacement	124 cc
Fuel System	Electronic Injection
Front Suspension	Hydraulic telescopic fork
Rear Brake	140 mm drum
Front Tire	90/80 - 16"
Rear Tire	100/80 - 14"
Wheelbase	1, 340 mm
Length	1, 945 mm
Width	690 mm
Seat Height	790 mm
Engine Type	Single cylinder, 4-stroke
Torque	10.4 Nm @ 8, 000 rpm
Cooling System	Air cooled
Transmission	CVT
Rear Suspension	Single shock absorber
Front Brake	240 mm disc
Fuel Tank Capacity	6 liters
Weight	124 kg
