PIAGGIO Liberty 125 User Manual

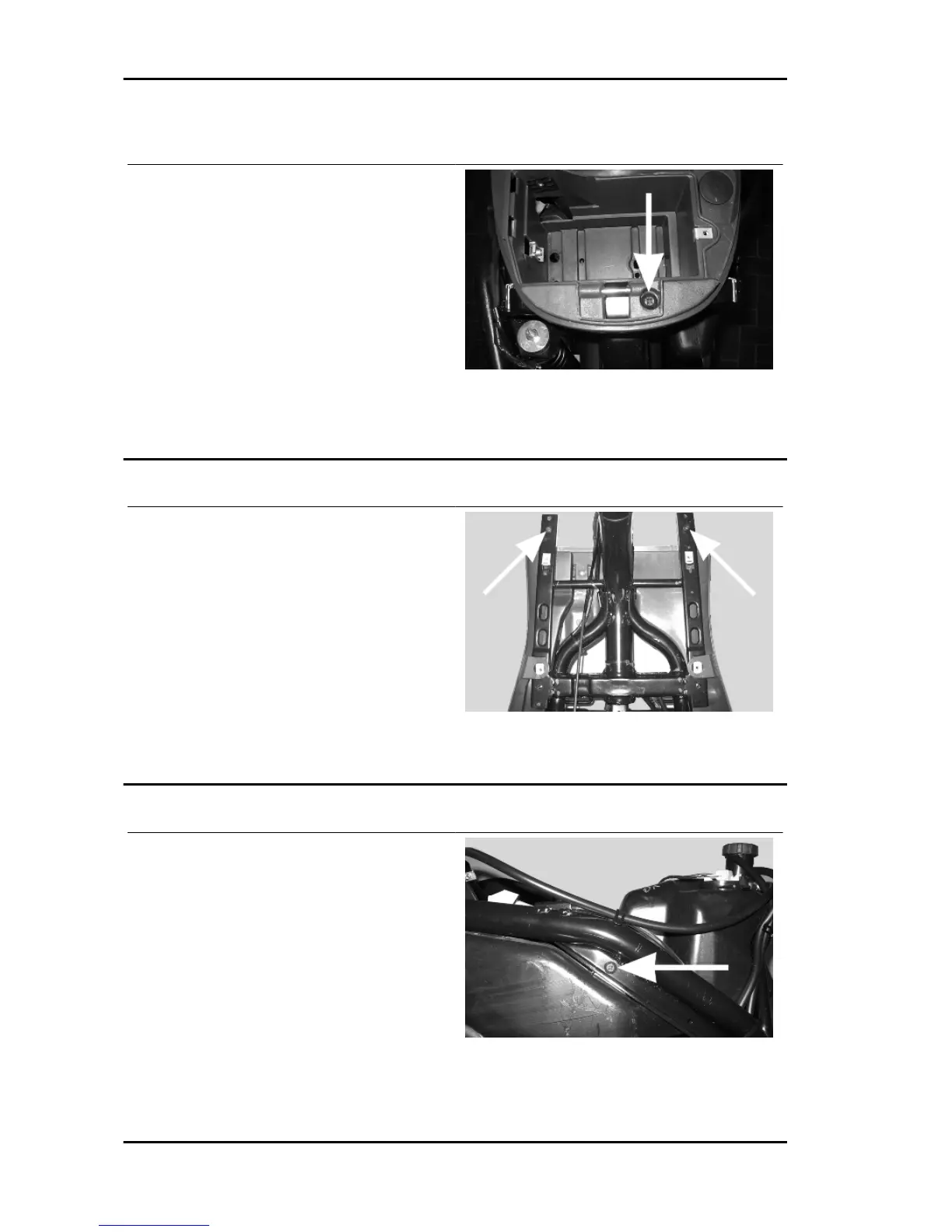

Helmet bay
• Remove the helmet compartment central cover.
• Remove the battery and the fuse box.
• Remove the fuel tank cap and the start-up remote
control switch.
• Unscrew the rear fixing screw and lift the helmet
compartment.
See also
Frame central cover
Frame central cover
spoiler
• Remove the footrest
• Unscrew the two front screws securing it and then
remove the spoiler from the bottom
See also
Footrest
Fuel tank
• Remove the central saddle compartment cover
• Unscrew the front and rear screws on the right
side of the frame
• Disconnect the vent tube and disassemble the
float
Chassis Liberty 125 - 200 4tempi
CHAS - 162

PIAGGIO Liberty 125 Specifications

General

Displacement	124 cc
Fuel System	Electronic Injection
Front Suspension	Hydraulic telescopic fork
Rear Brake	140 mm drum
Front Tire	90/80 - 16"
Rear Tire	100/80 - 14"
Wheelbase	1, 340 mm
Length	1, 945 mm
Width	690 mm
Seat Height	790 mm
Engine Type	Single cylinder, 4-stroke
Torque	10.4 Nm @ 8, 000 rpm
Cooling System	Air cooled
Transmission	CVT
Rear Suspension	Single shock absorber
Front Brake	240 mm disc
Fuel Tank Capacity	6 liters
Weight	124 kg
