020151Y Air heater
020150Y Air heater support

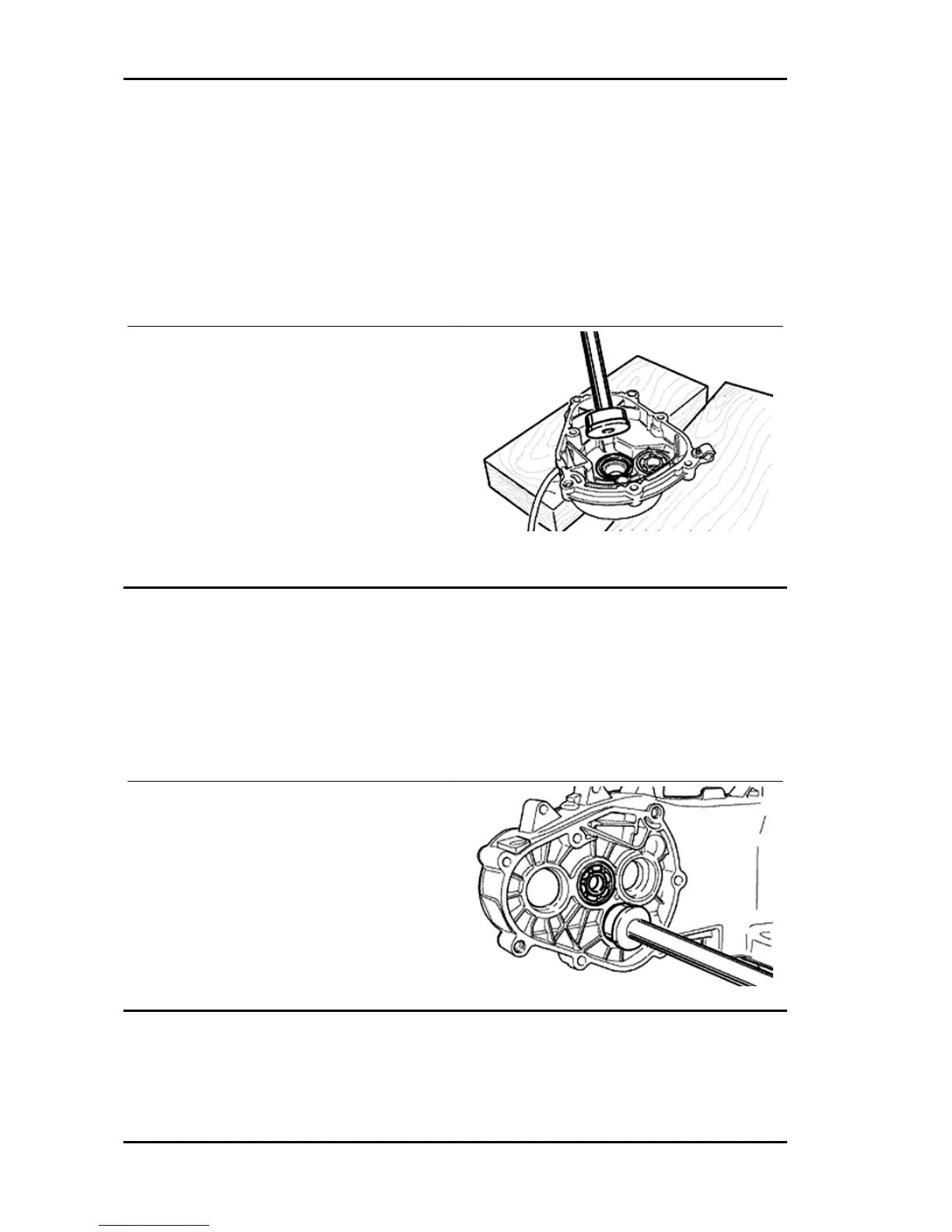

-The wheel axle bearing on the cover, should be assembled with the specific tools
Specific tooling
020364Y 25-mm guide
020360Y 52x55-mm Adaptor
020376Y Adaptor handle
•
Assemble the Seeger ring.
•
Assemble the oil seal flush with the in-
ternal surface as shown in the figure to
the hub using the adequate tools and
with the seal lip towards the inside of
the hub.
Specific tooling
020376Y Adaptor handle
020360Y 52x55-mm Adaptor
Refitting the hub cover bearings
- For the fitting of the hub box bearings the engine crankcase and the cover must be heated with the
specific heat gun.
Specific tooling
020150Y Air heater support
020151Y Air heater
- The three 15 mm bearings must be fitted using
the appropriate tools.
Engine Liberty 125 - 200 4tempi
ENG - 84

PIAGGIO Liberty 125 Specifications

General

Displacement	124 cc
Fuel System	Electronic Injection
Front Suspension	Hydraulic telescopic fork
Rear Brake	140 mm drum
Front Tire	90/80 - 16"
Rear Tire	100/80 - 14"
Wheelbase	1, 340 mm
Length	1, 945 mm
Width	690 mm
Seat Height	790 mm
Engine Type	Single cylinder, 4-stroke
Torque	10.4 Nm @ 8, 000 rpm
Cooling System	Air cooled
Transmission	CVT
Rear Suspension	Single shock absorber
Front Brake	240 mm disc
Fuel Tank Capacity	6 liters
Weight	124 kg
