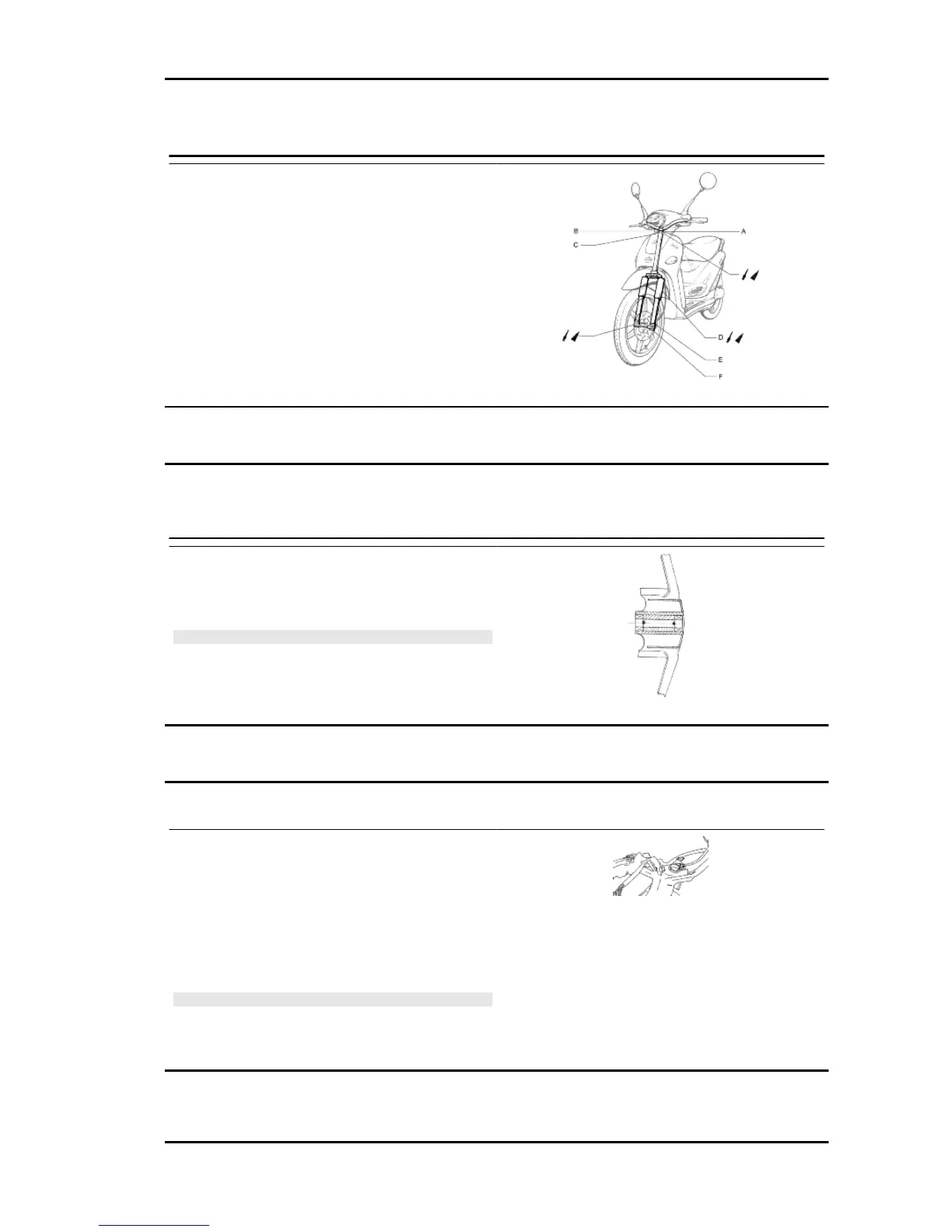

Front suspension
This section is devoted to operations that can be
carried out on the suspension.
Front
Front wheel hub overhaul
Ball bearings to hub
- Fit the spacer
- Fit the ball bearings and bushes and position the
seal rings.
WARNING
PRIOR TO REASSEMBLY, LUBRICATE WITH JOTA 3 F.S.
GREASE IN THE AREAS MARKED WITH THE ASTERISK.
Handlebar
Removal
Remove the handlebar cover before carrying out
this operation,.
- After removing the transmissions and discon-
necting the electrical terminals, remove the termi-
nal fixing the handlebar to the steering.
- Check all components and replace faulty parts.
N.B.
IF THE HANDLEBAR IS BEING REMOVED TO REMOVE
THE STEERING, TILT THE HANDLEBAR FORWARD TO
AVOIDING DAMAGING THE TRANSMISSIONS.
Liberty 125 - 200 4tempi Suspensions
SUSP - 139

PIAGGIO Liberty 125 Specifications

General

Displacement	124 cc
Fuel System	Electronic Injection
Front Suspension	Hydraulic telescopic fork
Rear Brake	140 mm drum
Front Tire	90/80 - 16"
Rear Tire	100/80 - 14"
Wheelbase	1, 340 mm
Length	1, 945 mm
Width	690 mm
Seat Height	790 mm
Engine Type	Single cylinder, 4-stroke
Torque	10.4 Nm @ 8, 000 rpm
Cooling System	Air cooled
Transmission	CVT
Rear Suspension	Single shock absorber
Front Brake	240 mm disc
Fuel Tank Capacity	6 liters
Weight	124 kg
