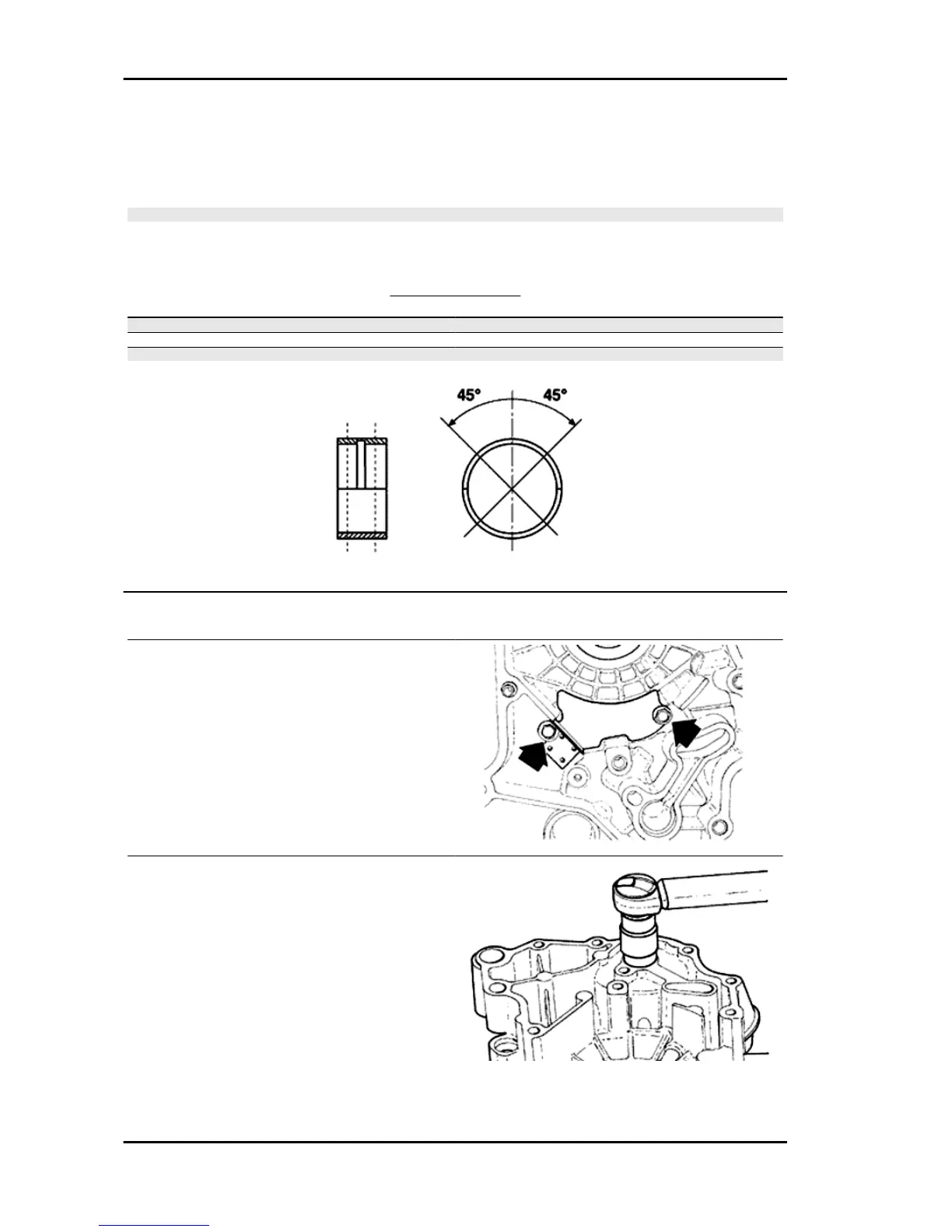

- The bushing housings in the crankcase are classified into 2 categories - Cat. 1 and Cat. 2 - just like
those for the crankshaft.
3 - The main bushings are subdivided into 3 thickness categories; see the table below:
N.B.
DO NOT TAKE THE MEASUREMENT ON THE TWO HALF-SHELL COUPLING SURFACE SINCE
THE ENDS ARE RELIEVED TO ALLOW BENDING DURING THE DRIVING OPERATION.
MAIN BEARINGS
Specification Desc./Quantity
B Blue
C Yellow
E Green
Refitting the crankcase halves
- Fit the internal bulkhead by locking the two
screws to the prescribed torque.
Locking torques (N*m)
Locking torque 4 ÷ 6
- Fit the oil filter joint and tighten it to the prescribed
torque.
- Place a new gasket on one of the crankcase
halves, preferably on the transmission side, to-
gether with the locating dowels.
Locking torques (N*m)
Locking torque 27 ÷ 33
Engine Liberty 125 - 200 4tempi
ENG - 114

PIAGGIO Liberty 125 Specifications

General

Displacement	124 cc
Fuel System	Electronic Injection
Front Suspension	Hydraulic telescopic fork
Rear Brake	140 mm drum
Front Tire	90/80 - 16"
Rear Tire	100/80 - 14"
Wheelbase	1, 340 mm
Length	1, 945 mm
Width	690 mm
Seat Height	790 mm
Engine Type	Single cylinder, 4-stroke
Torque	10.4 Nm @ 8, 000 rpm
Cooling System	Air cooled
Transmission	CVT
Rear Suspension	Single shock absorber
Front Brake	240 mm disc
Fuel Tank Capacity	6 liters
Weight	124 kg
