PIAGGIO Liberty 125 User Manual

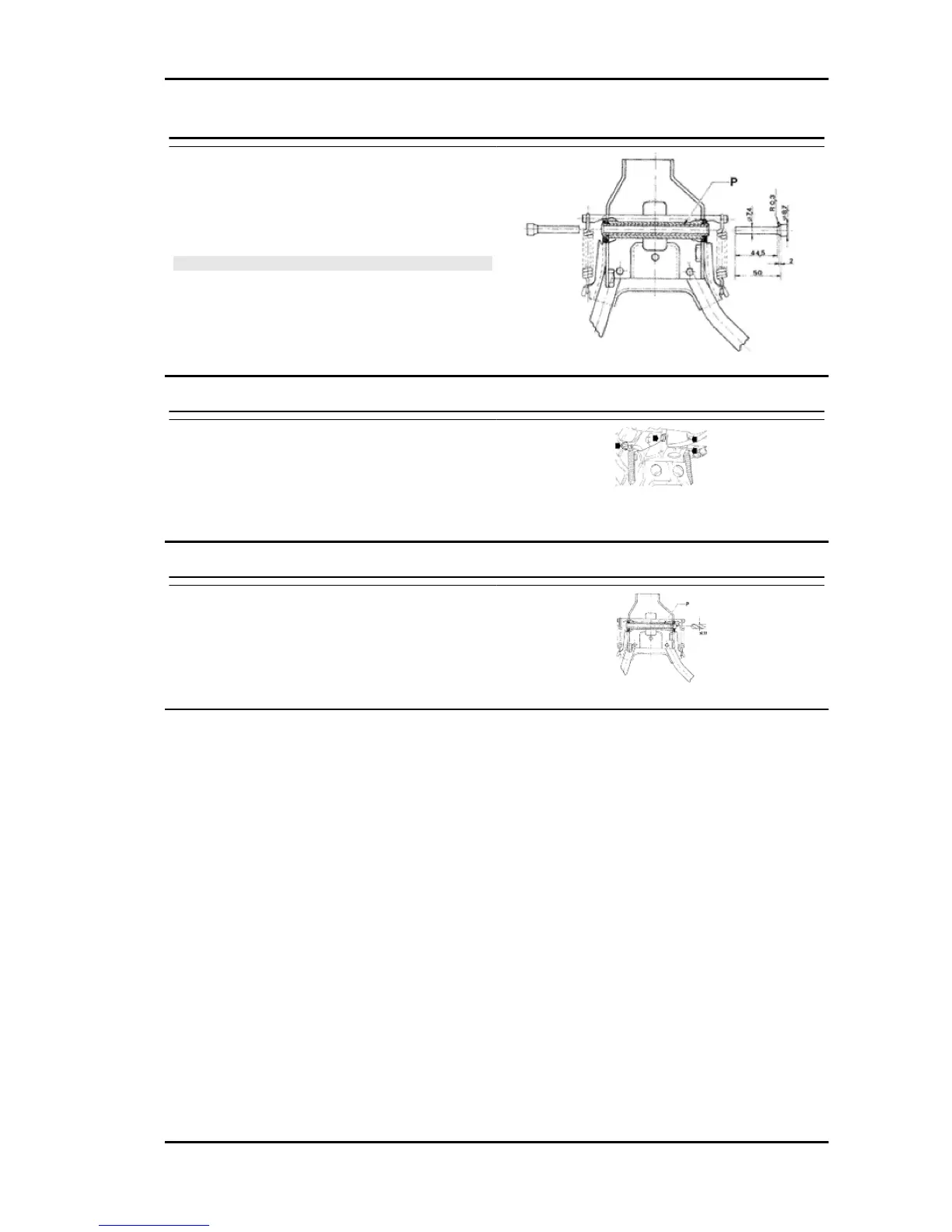

- Caulk the end of the pin «P» between the two
punches shown in the figure.
- After caulking it must be possible for the stand to
turn freely.
N.B.
UPON REFITTING USE NEW O-RING AND PIN, GREASE
THE SPRING ATTACHMENTS AND THE PIN.
Changing the complete stand
- Work on the screws shown in the figure.
- When refitting, secure to the prescribed torque.
Locking torques (N*m)
Stand screw torque 18.5 to 19 Nm
Expelling stand pivot pin from bracket
- Remove the stand support bracket from the en-
gine.
- Drill a 5 mm hole in the bracket so that the pin
«P» can come out.
Liberty 125 - 200 4tempi Suspensions
SUSP - 143

PIAGGIO Liberty 125 Specifications

General

Displacement	124 cc
Fuel System	Electronic Injection
Front Suspension	Hydraulic telescopic fork
Rear Brake	140 mm drum
Front Tire	90/80 - 16"
Rear Tire	100/80 - 14"
Wheelbase	1, 340 mm
Length	1, 945 mm
Width	690 mm
Seat Height	790 mm
Engine Type	Single cylinder, 4-stroke
Torque	10.4 Nm @ 8, 000 rpm
Cooling System	Air cooled
Transmission	CVT
Rear Suspension	Single shock absorber
Front Brake	240 mm disc
Fuel Tank Capacity	6 liters
Weight	124 kg
