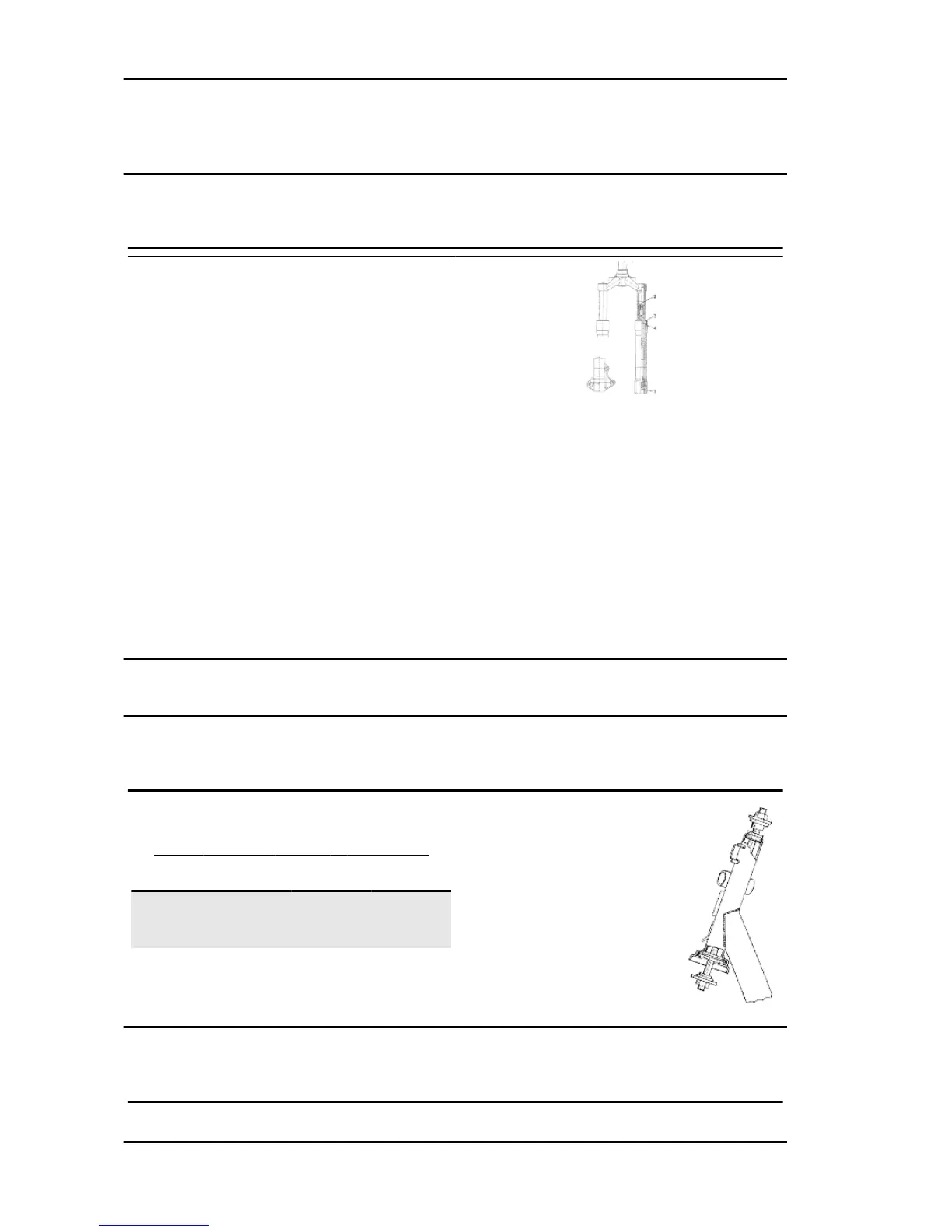

Front fork
Overhaul
O-ring renewal and rod disassembly
- Remove the wheel axle.
- Remove the lower screw (1).
- Discharge the oil in the suspension.
- Remove the stem.
- Replace the sealing rings (3-4) with new ones.
- Insert the new sealing rings only after lubricating
their seatings.
- Refit the stem and the lower screw (1).
- Remove the upper screw (2).
- Add 30 cc ±1 "Fork PG" oil (SAE 20W oil for
forks).
- Refit all components.
Locking torques (N*m)
Upper screw tightening torque 20 to 25 Nm Lower
screw tightening torque: 20 to 25 Nm
Steering column
Refitting
Lower and upper bearing races to frame
Lower and upper seating on the chassis
LOWER AND UPPER SEATING ON THE CHASSIS
Titolo Durata/
Valore
Testo Breve
(< 4000 car.)
Indirizzo
Immagine
Lower and
upper seating
on the chas-
sis
Steering bearing
Steering collar
Suspensions Liberty 125 - 200 4tempi
SUSP - 140

PIAGGIO Liberty 125 Specifications

General

Displacement	124 cc
Fuel System	Electronic Injection
Front Suspension	Hydraulic telescopic fork
Rear Brake	140 mm drum
Front Tire	90/80 - 16"
Rear Tire	100/80 - 14"
Wheelbase	1, 340 mm
Length	1, 945 mm
Width	690 mm
Seat Height	790 mm
Engine Type	Single cylinder, 4-stroke
Torque	10.4 Nm @ 8, 000 rpm
Cooling System	Air cooled
Transmission	CVT
Rear Suspension	Single shock absorber
Front Brake	240 mm disc
Fuel Tank Capacity	6 liters
Weight	124 kg
