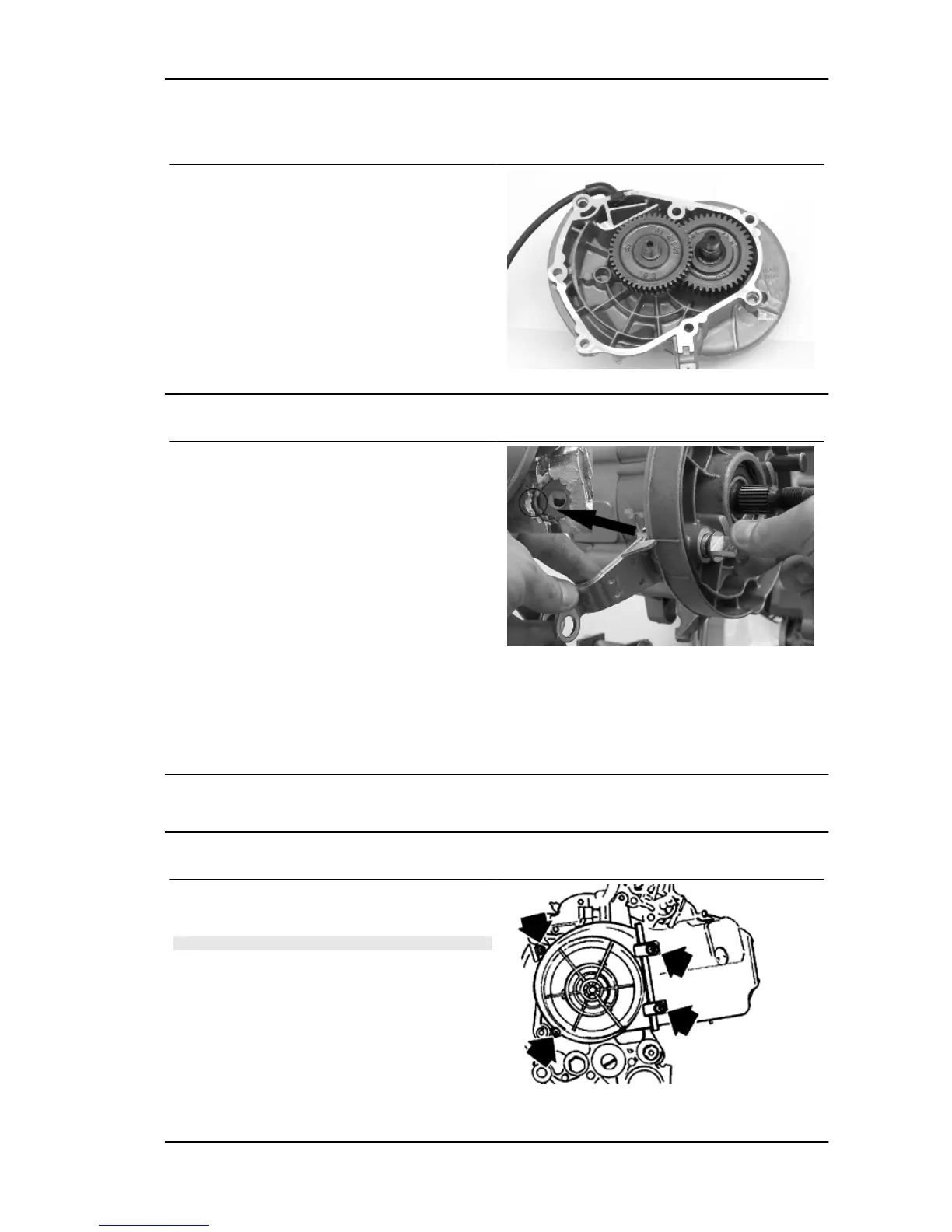

Refitting the hub bearings
- Insert the cover prepared in the crankcase taking
care of inserting the gear of the pulley shaft on the
intermediary gear.
Refitting the ub cover
- Fit a new gasket together with the centring dow-
els.
- Fit the gearbox cover, making sure the breather
pipe is in the correct position.
- Screw the 7 screws to the specified torque, po-
sitioning the support plate of the pipe in the posi-
tion shown in the figure.
- Remove the control pin of the shoe taking care
so as the long tooth coincides with the groove on
the control lever.
Locking torques (N*m)
Locking torque 24 ÷ 27
Flywheel cover
Cooling hood
-Remove the housing acting on the 4 retaining
screws.
CAUTION
DURING REMOVAL SLIDE THE HOUSING CONNECTOR
ON THE HOUSING.
Liberty 125 - 200 4tempi Engine
ENG - 85

PIAGGIO Liberty 125 Specifications

General

Displacement	124 cc
Fuel System	Electronic Injection
Front Suspension	Hydraulic telescopic fork
Rear Brake	140 mm drum
Front Tire	90/80 - 16"
Rear Tire	100/80 - 14"
Wheelbase	1, 340 mm
Length	1, 945 mm
Width	690 mm
Seat Height	790 mm
Engine Type	Single cylinder, 4-stroke
Torque	10.4 Nm @ 8, 000 rpm
Cooling System	Air cooled
Transmission	CVT
Rear Suspension	Single shock absorber
Front Brake	240 mm disc
Fuel Tank Capacity	6 liters
Weight	124 kg
