PIAGGIO Liberty 125 User Manual

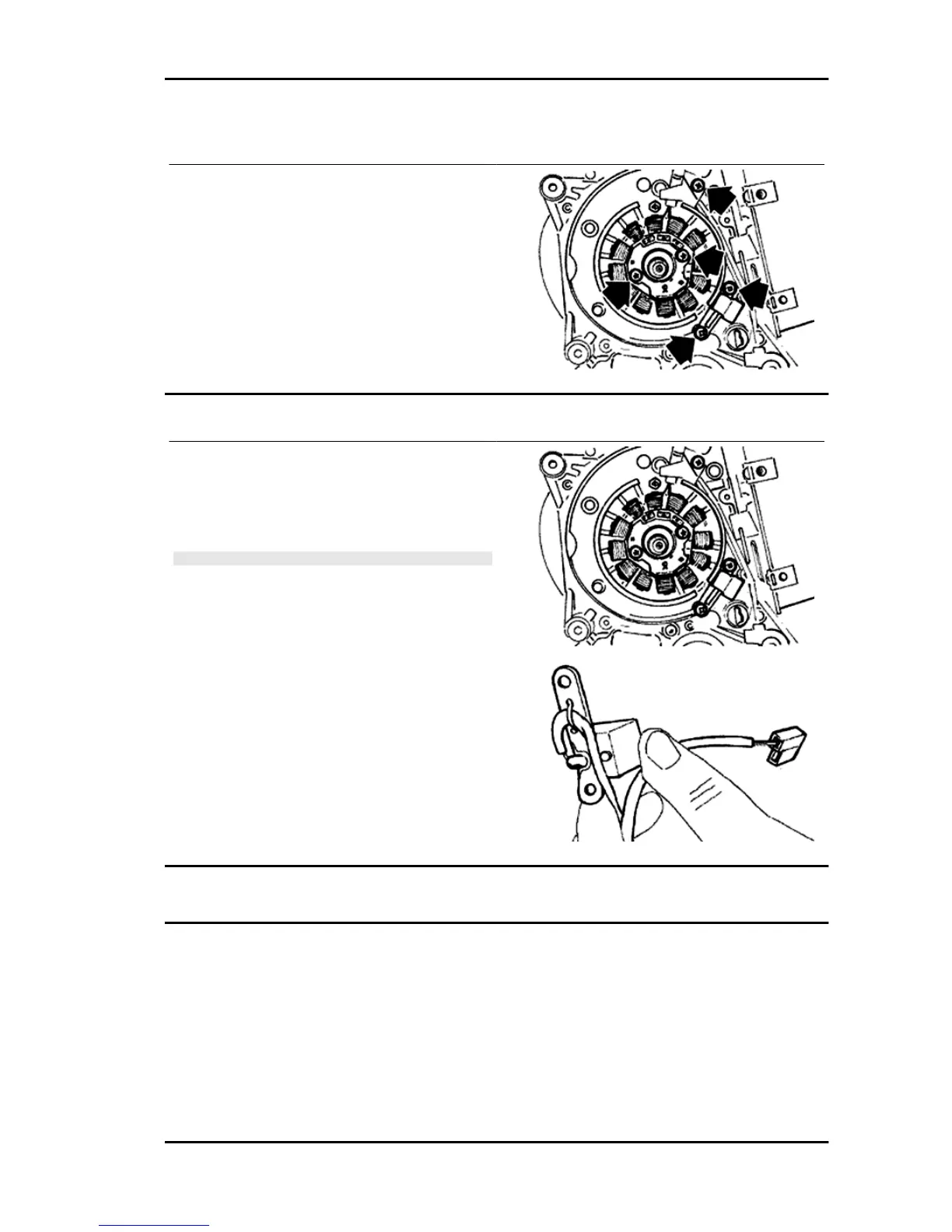

Removing the stator
- Remove the electric terminal of the minimum oil
pressure switch.
- Remove the two Pick-Up screws and the one for
the wiring harness bracket as well as the two stator
fixing screws shown in the figure.
- Remove the stator and its wiring.
Refitting the stator
- Refit the stator and flywheel carrying out the re-
moval procedure in reverse, tightening the retain-
ers to the specified torque.
- Place the cable harness as shown in the figure.
N.B.
THE PICK-UP WIRE SHOULD BE POSITIONED BETWEEN
THE UPPER SCREW AND THE REFERENCE PIN AS
SHOWN IN THE DETAIL DRAWING.
Locking torques (N*m)
Stator screw 3 ÷ 4
Flywheel and starting
Liberty 125 - 200 4tempi Engine
ENG - 87

PIAGGIO Liberty 125 Specifications

General

Displacement	124 cc
Fuel System	Electronic Injection
Front Suspension	Hydraulic telescopic fork
Rear Brake	140 mm drum
Front Tire	90/80 - 16"
Rear Tire	100/80 - 14"
Wheelbase	1, 340 mm
Length	1, 945 mm
Width	690 mm
Seat Height	790 mm
Engine Type	Single cylinder, 4-stroke
Torque	10.4 Nm @ 8, 000 rpm
Cooling System	Air cooled
Transmission	CVT
Rear Suspension	Single shock absorber
Front Brake	240 mm disc
Fuel Tank Capacity	6 liters
Weight	124 kg
