PIAGGIO Liberty 125 User Manual

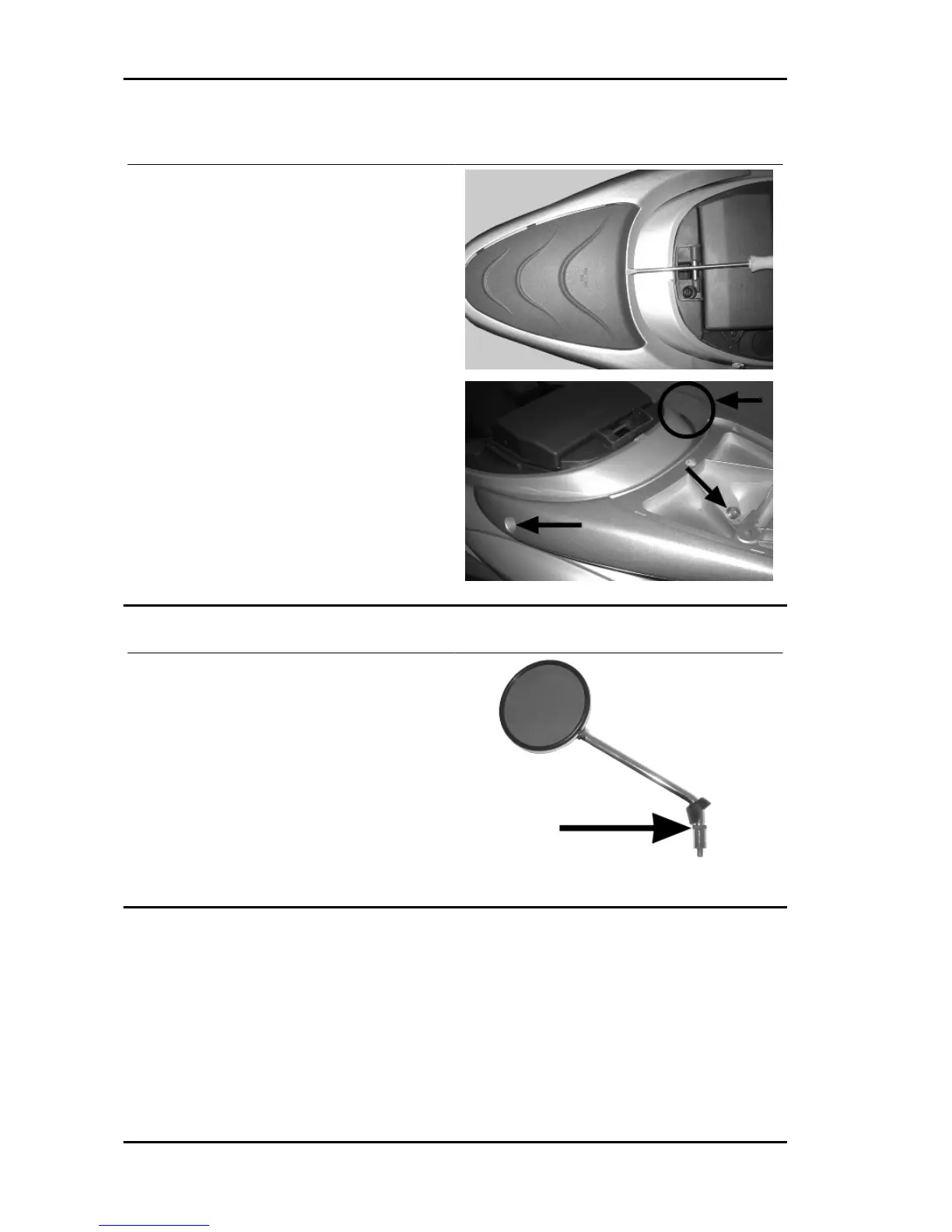

Rear rack
• Operating from the rear and using a screwdriver,
remove the plastic cap of the central screw cover.
• Remove the central and the 2 side screws.
Driving mirrors
• With the register screw completely tightened,
screw the mirror stem all the way down on the
handlebars.
• Loosen the mirror and put it in the desired posi-
tion.
• Loosen the register screw until the stem is tight-
ened.
Locking torques (N*m)
Mirror register screw 24÷26
Chassis Liberty 125 - 200 4tempi
CHAS - 154

PIAGGIO Liberty 125 Specifications

General

Displacement	124 cc
Fuel System	Electronic Injection
Front Suspension	Hydraulic telescopic fork
Rear Brake	140 mm drum
Front Tire	90/80 - 16"
Rear Tire	100/80 - 14"
Wheelbase	1, 340 mm
Length	1, 945 mm
Width	690 mm
Seat Height	790 mm
Engine Type	Single cylinder, 4-stroke
Torque	10.4 Nm @ 8, 000 rpm
Cooling System	Air cooled
Transmission	CVT
Rear Suspension	Single shock absorber
Front Brake	240 mm disc
Fuel Tank Capacity	6 liters
Weight	124 kg
