PIAGGIO Liberty 125 User Manual

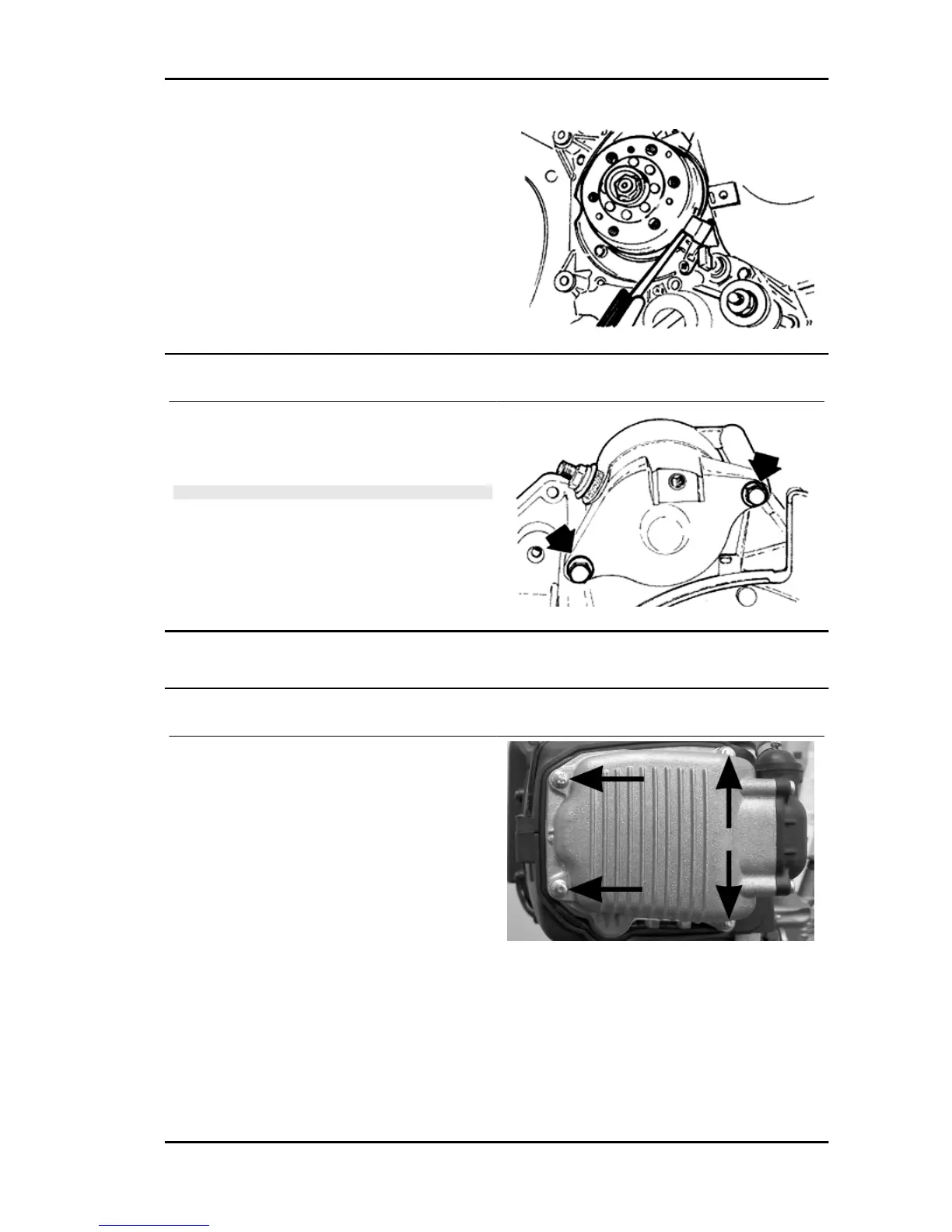

Refitting the starter motor
- Fit a new O-ring on the starter and lubricate it.
- Fit the starter on the crankcase, locking the two
screws to the prescribed torque.
N.B.
REFIT THE REMAINING PARTS AS DESCRIBED IN THE
CYLINDER HEAD, TIMING, LUBRICATION, FLYWHEEL
AND TRANSMISSION CHAPTERS.
Locking torques (N*m)
Starter motor screws 11 ÷ 13
Cylinder assy. and timing system
Removing the timing system drive
- Remove the parts listed below first: transmission
cover, belt driving pulley, oil pump pulley cover and
pinion separator washer.
- Remove the tappet cover.
- Remove the central screw fastener and the au-
tomatic valve-lifter retaining cover, as shown in the
figure.
- Remove the return spring of the automatic valve
lifter assembly and the automatic valve lifter as-
sembly and its end of stroke washer.
- Loosen the central screw on the tensioner first.
- Remove the two fixings shown in the figure.
- Remove the tensioner with its gasket.
Liberty 125 - 200 4tempi Engine
ENG - 89

PIAGGIO Liberty 125 Specifications

General

Displacement	124 cc
Fuel System	Electronic Injection
Front Suspension	Hydraulic telescopic fork
Rear Brake	140 mm drum
Front Tire	90/80 - 16"
Rear Tire	100/80 - 14"
Wheelbase	1, 340 mm
Length	1, 945 mm
Width	690 mm
Seat Height	790 mm
Engine Type	Single cylinder, 4-stroke
Torque	10.4 Nm @ 8, 000 rpm
Cooling System	Air cooled
Transmission	CVT
Rear Suspension	Single shock absorber
Front Brake	240 mm disc
Fuel Tank Capacity	6 liters
Weight	124 kg
