PIAGGIO Liberty 125 User Manual

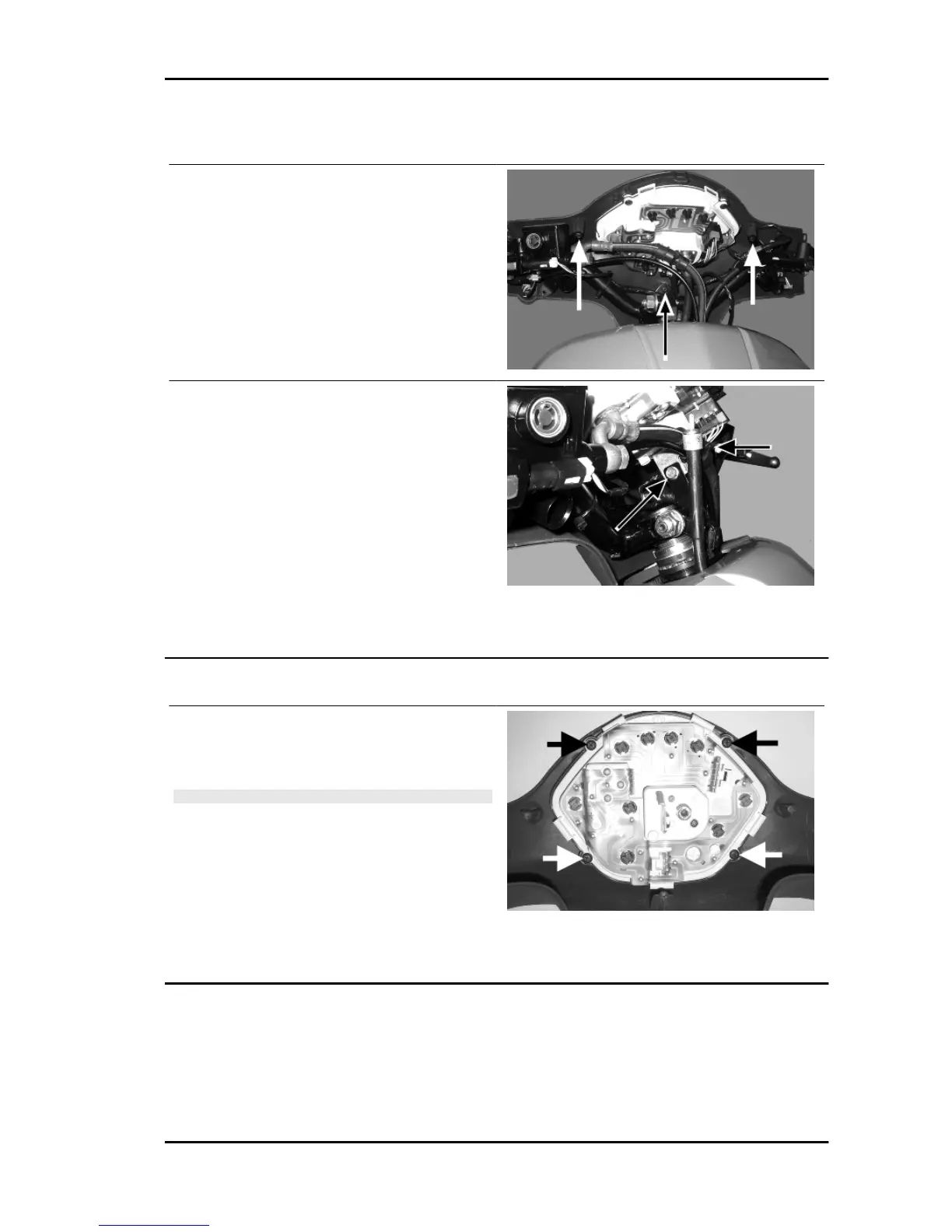

Rear handlebar cover
• Remove the front handlebar fairing
• Unscrew the speedometer transmission connec-
tion and remove it
• Disconnect the instrument unit and electrical con-
trol connections
• Cut the band holding the front brake hoses to the
instrument unit
• Remove the screw securing the instrument unit
to the handlebar
See also
Front handlebar cover
Instrument panel
• Remove the rear handlebar fairing
• Unscrew the 4 screws securing it and remove the
instrument unit
N.B.
THE BULBS HAVE BAYONET COUPLING ON THE LAMP-
HOLDER; THE LAMP-HOLDER CAN BE REMOVED BY RO-
TATING IT 30° ANTI-CLOCKWISE. THE CLOCK RUNS ON
A BATTERY
See also
Rear handlebar cover
Liberty 125 - 200 4tempi Chassis
CHAS - 155

PIAGGIO Liberty 125 Specifications

General

Displacement	124 cc
Fuel System	Electronic Injection
Front Suspension	Hydraulic telescopic fork
Rear Brake	140 mm drum
Front Tire	90/80 - 16"
Rear Tire	100/80 - 14"
Wheelbase	1, 340 mm
Length	1, 945 mm
Width	690 mm
Seat Height	790 mm
Engine Type	Single cylinder, 4-stroke
Torque	10.4 Nm @ 8, 000 rpm
Cooling System	Air cooled
Transmission	CVT
Rear Suspension	Single shock absorber
Front Brake	240 mm disc
Fuel Tank Capacity	6 liters
Weight	124 kg
