PIAGGIO Liberty 125 User Manual

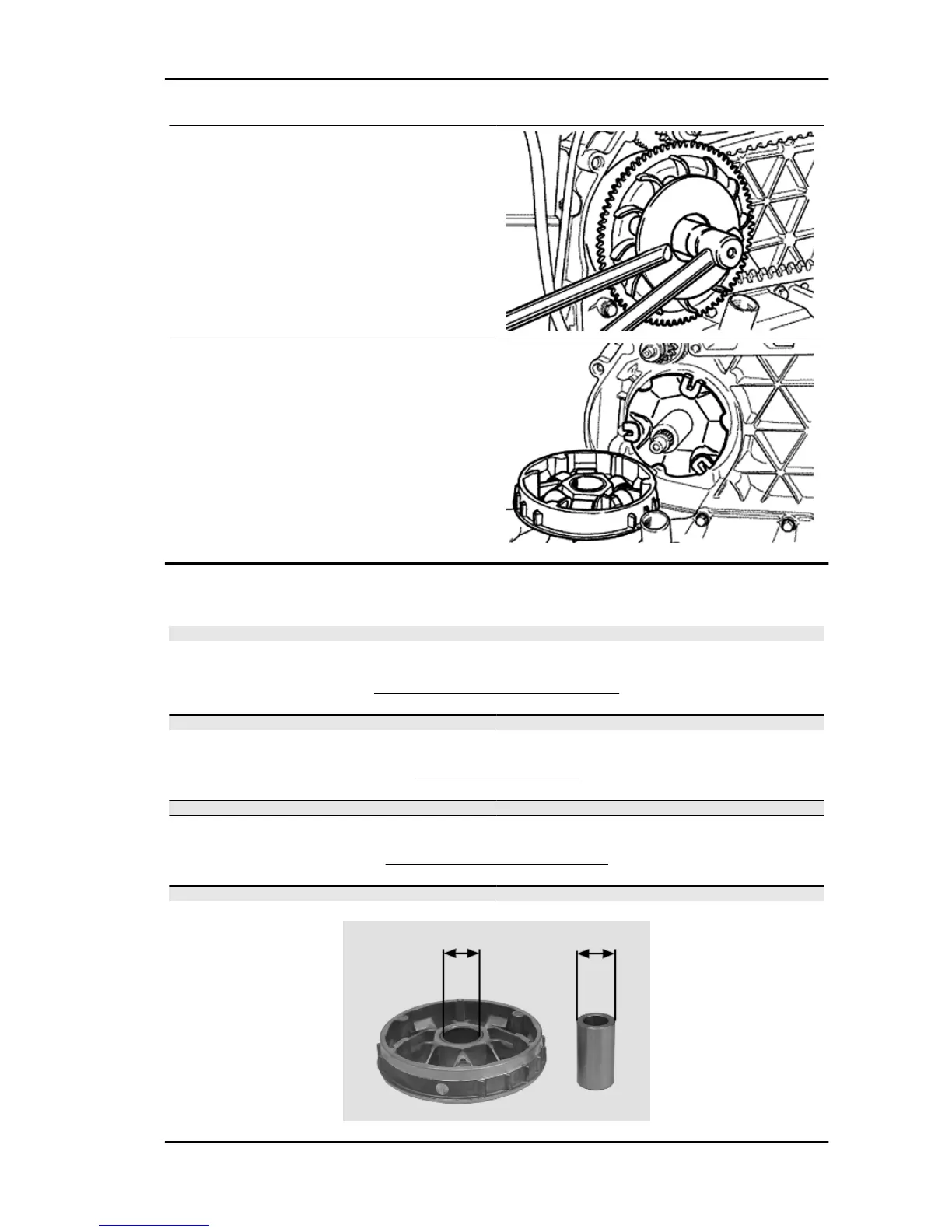

- Lock the driving pulley with the specific tool as
shown in the figure. - Disassemble the central nut
and the Belleville washer, remove the drive and
the 2 washers. - Remove the stationary half pulley
and the steel washer.
Specific tooling
020368Y driving pulley lock wrench
- Remove the belt and slide the movable half-pul-
ley with the relevant bush, taking care of the falling
free assembled rollers.
- Remove the return rollers plate with the relative
guide pads.
Inspecting the rollers case
- Check that the internal bushing is not abnormally worn and measure inner diameter.
N.B.
DO NOT LUBRICATE OR CLEAN THE BUSHING.
BUSHING ROLLER CONTAINER
Specification
Desc./Quantity
Maximum allowable diameter Ø 26.121 mm
Standard diameter Ø 26+0 +0.021 mm
BUSH SLIDE PULLEY
Specification
Desc./Quantity
Minimum diameter permitted Ø 25.950 mm
Standard diameter Ø 26-0.020 -0.041 mm
VARIABLE SPEED ROLLERS
Specification
Desc./Quantity
Minimum diameter permitted Ø 18.5 mm
Standard diameter Ø 26±0.1 mm
Liberty 125 - 200 4tempi Engine
ENG - 77

PIAGGIO Liberty 125 Specifications

General

Displacement	124 cc
Fuel System	Electronic Injection
Front Suspension	Hydraulic telescopic fork
Rear Brake	140 mm drum
Front Tire	90/80 - 16"
Rear Tire	100/80 - 14"
Wheelbase	1, 340 mm
Length	1, 945 mm
Width	690 mm
Seat Height	790 mm
Engine Type	Single cylinder, 4-stroke
Torque	10.4 Nm @ 8, 000 rpm
Cooling System	Air cooled
Transmission	CVT
Rear Suspension	Single shock absorber
Front Brake	240 mm disc
Fuel Tank Capacity	6 liters
Weight	124 kg
