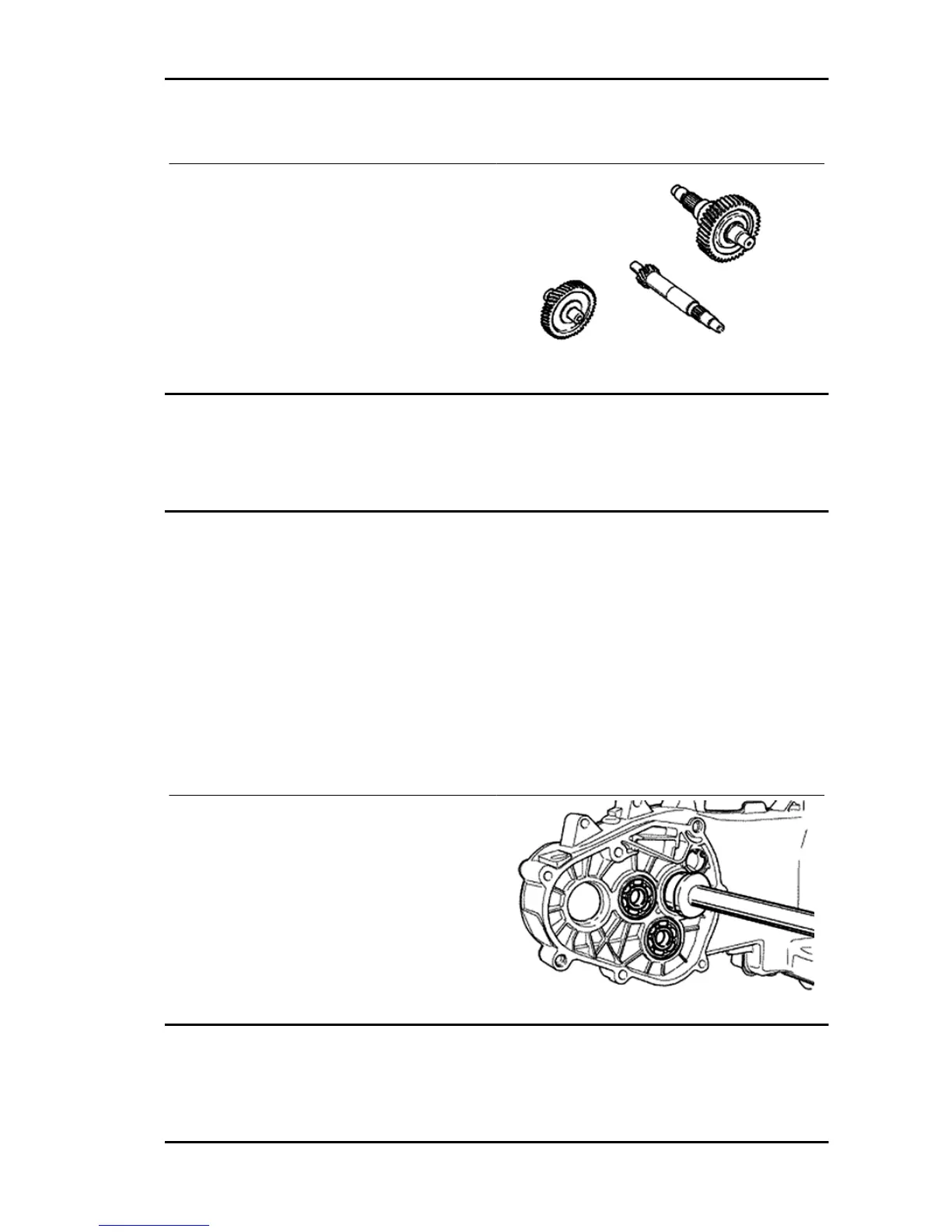

Inspecting the hub shaft
- Check the three shafts for wear or distortion of
the toothed surfaces, the bearing housings, and
the oil seal housings.
- In case of anomalies, replace the damaged com-
ponents.
Inspecting the hub cover
- Check that the fitting surface is not dented or distorted. - Check the capacity of the bearings and the
brake camshaft. - If faults are found, replace the hub cover.
Refitting the driven pulley shaft bearing
- Heat up the parts using the specific heat gun
Specific tooling
020150Y Air heater support
020151Y Air heater
- Reassemble the driven pulley axle bearing positioning it with ball bearing in view from the inside of
the hub cover using the adequate tools
Specific tooling
020376Y Adaptor handle
- Refit the Seeger ring with the opening facing the
bearing as shown in the figure and fit a new oil
guard flush with the crankcase.
Refitting the wheel axle bearing
- Heat up the parts using the specific heat gun
Specific tooling
Liberty 125 - 200 4tempi Engine
ENG - 83

PIAGGIO Liberty 125 Specifications

General

Displacement	124 cc
Fuel System	Electronic Injection
Front Suspension	Hydraulic telescopic fork
Rear Brake	140 mm drum
Front Tire	90/80 - 16"
Rear Tire	100/80 - 14"
Wheelbase	1, 340 mm
Length	1, 945 mm
Width	690 mm
Seat Height	790 mm
Engine Type	Single cylinder, 4-stroke
Torque	10.4 Nm @ 8, 000 rpm
Cooling System	Air cooled
Transmission	CVT
Rear Suspension	Single shock absorber
Front Brake	240 mm disc
Fuel Tank Capacity	6 liters
Weight	124 kg
