020427Y Piston fitting band

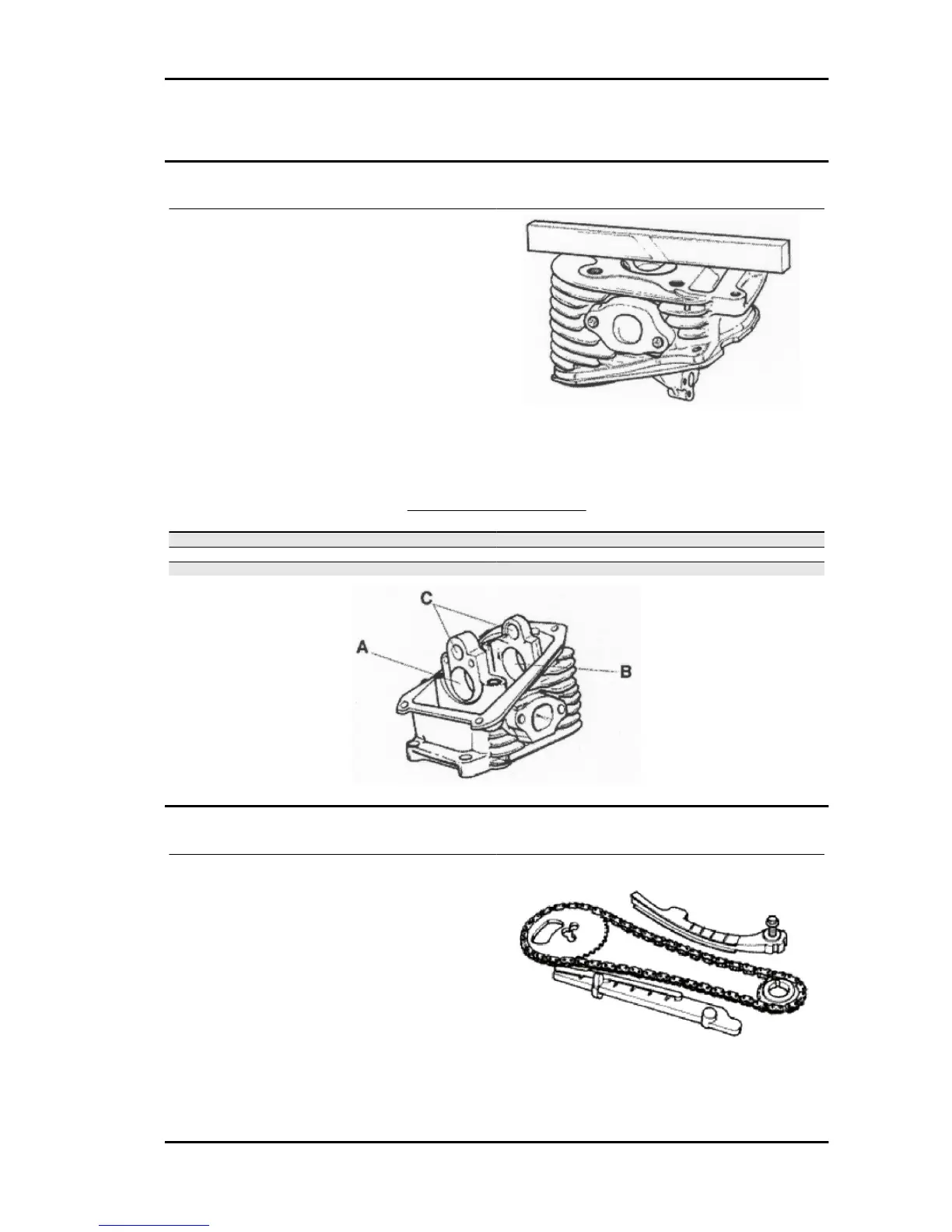

Inspecting the cylinder head
- Using a trued bar check that the cylinder head
surface is not worn or distorted.
- Check that the camshaft and rocking lever pin
bearings show no signs of wear.
- Check that the cylinder head cover surface, the
intake manifold and the exhaust manifold are not
worn.
Characteristic
Maximum admitted unevenness: Head check
0.05 mm
STANDARD DIAMETER
Specification Desc./Quantity
Standard diameter A Ø 32.5 ÷ 32.525
Standard diameter B Ø 20 ÷ 20.021
Standard diameter C Ø 12 ÷ 12.018
Inspecting the timing system components
- Check that the guide shoe and the tensioner shoe
are not worn out.
- Ensure that the camshaft drive pulley, the chain
assembly and the sprocket wheel are not worn.
- If sings of wear are found, replace the parts. if the
chain, pinion or pulley are worn, replace the whole
assembly.
Liberty 125 - 200 4tempi Engine
ENG - 99

PIAGGIO Liberty 125 Specifications

General

Displacement	124 cc
Fuel System	Electronic Injection
Front Suspension	Hydraulic telescopic fork
Rear Brake	140 mm drum
Front Tire	90/80 - 16"
Rear Tire	100/80 - 14"
Wheelbase	1, 340 mm
Length	1, 945 mm
Width	690 mm
Seat Height	790 mm
Engine Type	Single cylinder, 4-stroke
Torque	10.4 Nm @ 8, 000 rpm
Cooling System	Air cooled
Transmission	CVT
Rear Suspension	Single shock absorber
Front Brake	240 mm disc
Fuel Tank Capacity	6 liters
Weight	124 kg
