PIAGGIO Liberty 125 User Manual

Air filter

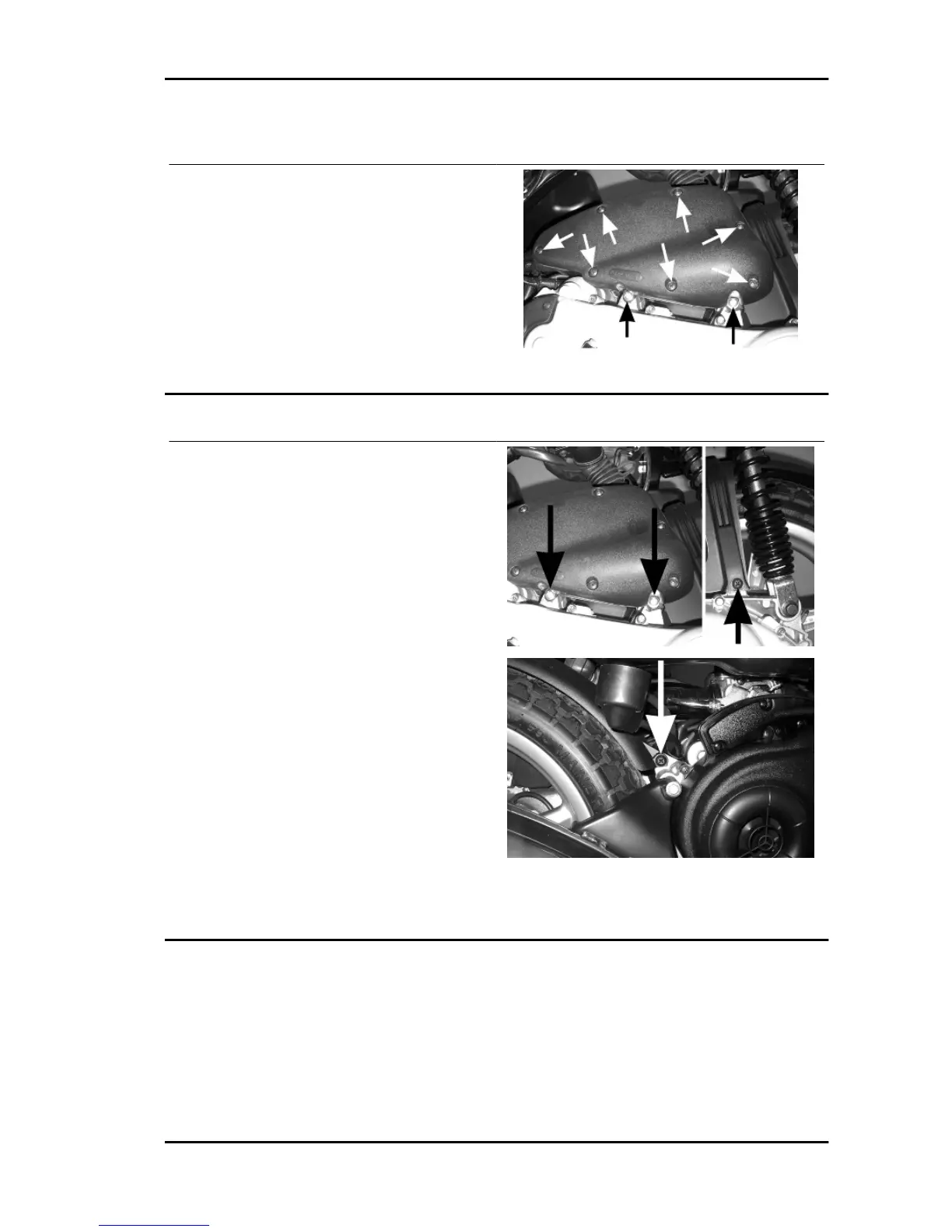

• Unscrew the 7 cover screws and remove the
cover to reach the filter sponge.
• To disassemble the filter housing, unscrew the 2
bottom screws and disconnect the manifold con-
nections, the carburettor and the external air in-
take.
Rear mudguard
• Remove the 3 screws securing it on the left side
(including the 2 screws securing the air filter box)
• Remove the screw on the side of the cooling cas-
ing
• Remove the mudguard by taking it off the muffler
side.
Please take note that, starting from chassis serial number ZAPM3840000005931, a washer drawing
709047 has been added in order to guarantee the rear mudguard correct fixing
Liberty 125 - 200 4tempi Chassis
CHAS - 161

PIAGGIO Liberty 125 Specifications

General

Displacement	124 cc
Fuel System	Electronic Injection
Front Suspension	Hydraulic telescopic fork
Rear Brake	140 mm drum
Front Tire	90/80 - 16"
Rear Tire	100/80 - 14"
Wheelbase	1, 340 mm
Length	1, 945 mm
Width	690 mm
Seat Height	790 mm
Engine Type	Single cylinder, 4-stroke
Torque	10.4 Nm @ 8, 000 rpm
Cooling System	Air cooled
Transmission	CVT
Rear Suspension	Single shock absorber
Front Brake	240 mm disc
Fuel Tank Capacity	6 liters
Weight	124 kg
