N.B.
THE MEASUREMENT MAY BE FALSIFIED BY THE INCOR-
RECT NUMBER OF REVS OR BY THE WRONG POSITION
OF THE TUBE. IN THIS CASE, THE TENDENCY IS TO OB-
TAIN A REDUCED FUEL FLOW RATE. THE SUCTION OUT-
LET ON THE MANIFOLD HAS A SECTION INTENTIONALLY
REDUCED FOR THE PURPOSE OF ENHANCING THE SUC-
TION PULSATION AND THEREBY GUARANTEE A CON-
STANT TAP FLOW RATE.
Specific tooling
020329Y MityVac vacuum-operated pump
Characteristic
Minimum flow rate
20 cc

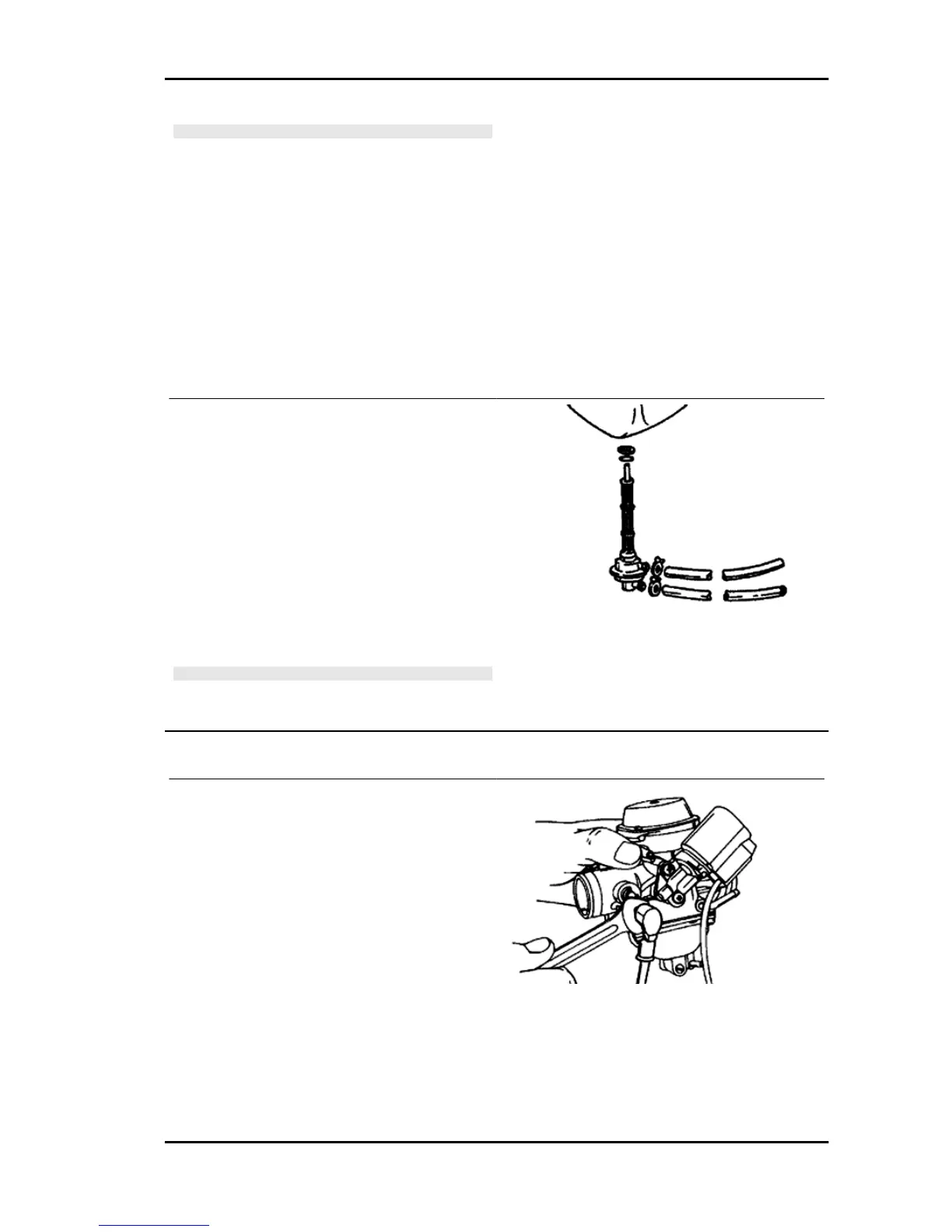

- Completely empty the fuel tank.
- Remove the petrol delivery pipe and the low-
pressure pipe.
- Loosen the clip and remove the cock.
- Clean the tank and the filter of the cock with a
specific solvent.
- Refit the cock making sure that there is an O-
Ring.
- Turn the cock to the direction it had before it was
removed and block the clip.
N.B.
THE FILTER CAN BE UNSCREWED FROM THE COCK TO
FACILITATE CLEANING.
Removing the carburettor
- Follow the steps described in Chapter Cylinder
Head and Timing Components.
- Remove the run-off tube and the float bowl
breather tube.
- Remove the carburettor heater.
Liberty 125 - 200 4tempi Engine
ENG - 125

PIAGGIO Liberty 125 Specifications

General

Displacement	124 cc
Fuel System	Electronic Injection
Front Suspension	Hydraulic telescopic fork
Rear Brake	140 mm drum
Front Tire	90/80 - 16"
Rear Tire	100/80 - 14"
Wheelbase	1, 340 mm
Length	1, 945 mm
Width	690 mm
Seat Height	790 mm
Engine Type	Single cylinder, 4-stroke
Torque	10.4 Nm @ 8, 000 rpm
Cooling System	Air cooled
Transmission	CVT
Rear Suspension	Single shock absorber
Front Brake	240 mm disc
Fuel Tank Capacity	6 liters
Weight	124 kg
