PIAGGIO Liberty 125 User Manual

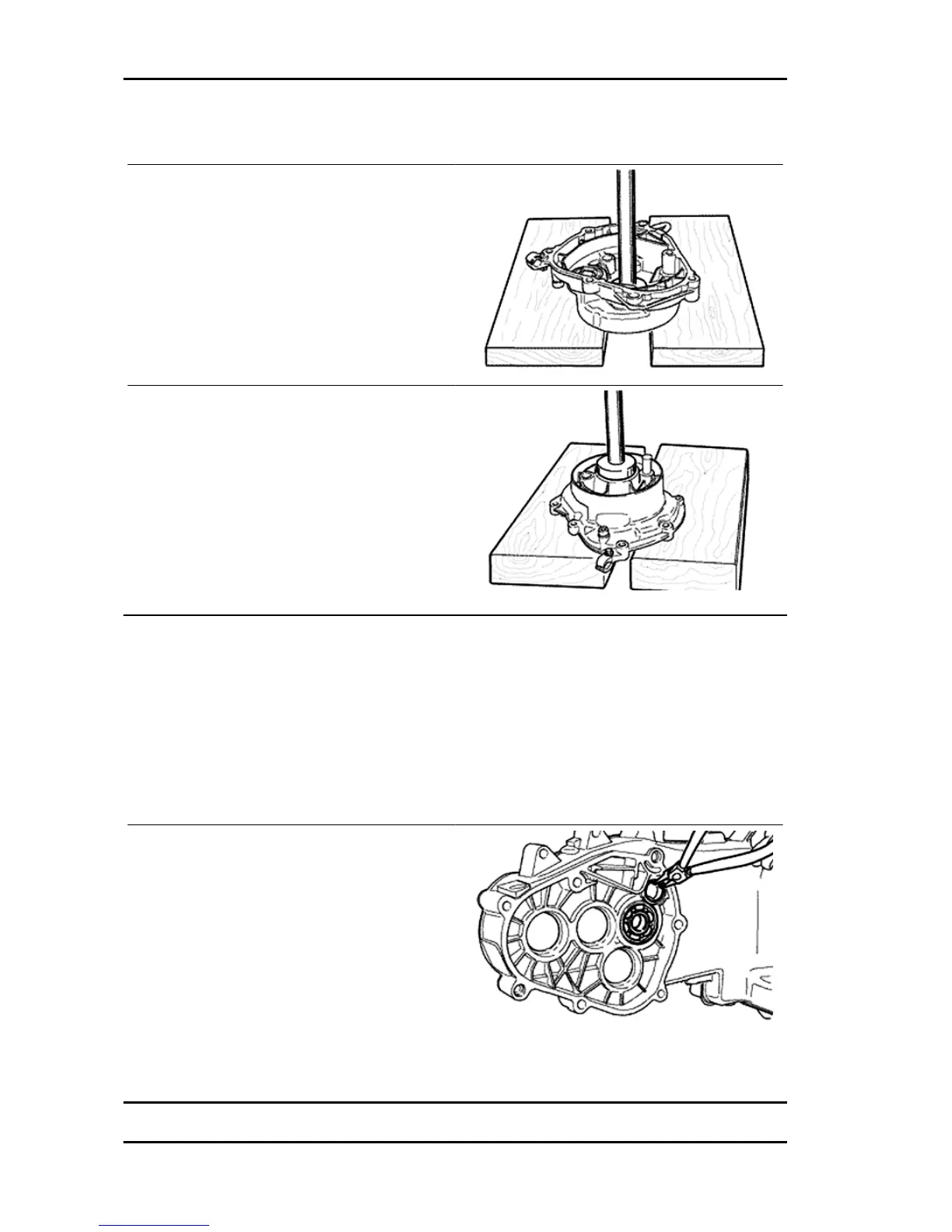

Removing the wheel axle bearings
- Take out the clip on the outside of the gearbox
cover.
- Remove the bearing with the adequate tools ad-
equately supporting the hub cover, as shown in the
figure.
Specific tooling
020376Y Adaptor handle
020364Y 25-mm guide
With the appropriate tools, remove the oil seal as
shown in the figure.
Specific tooling
020376Y Adaptor handle
020359Y 42x47-mm Adaptor
Removing the driven pulley shaft bearing
If it is necessary to remove the driven pulley shaft, from the relevant bearing and oil seal, remove driven
pulley.
- Extract the driven pulley shaft from its bearing.
- Remove the oil guard using a screwdriver, working from inside the bearing and being careful not to
damage the housing, make it come out of the belt transmission side.
- Remove the seeger ring shown in the figure
With the sectional punch, remove the driven pulley
shaft bearing.
Specific tooling
020376Y Adaptor handle
020375Y Adaptor 28 x 30 mm
020363Y 20 mm guide
See also
Removing the driven pulley
Engine Liberty 125 - 200 4tempi
ENG - 82

PIAGGIO Liberty 125 Specifications

General

Displacement	124 cc
Fuel System	Electronic Injection
Front Suspension	Hydraulic telescopic fork
Rear Brake	140 mm drum
Front Tire	90/80 - 16"
Rear Tire	100/80 - 14"
Wheelbase	1, 340 mm
Length	1, 945 mm
Width	690 mm
Seat Height	790 mm
Engine Type	Single cylinder, 4-stroke
Torque	10.4 Nm @ 8, 000 rpm
Cooling System	Air cooled
Transmission	CVT
Rear Suspension	Single shock absorber
Front Brake	240 mm disc
Fuel Tank Capacity	6 liters
Weight	124 kg
