1 mm

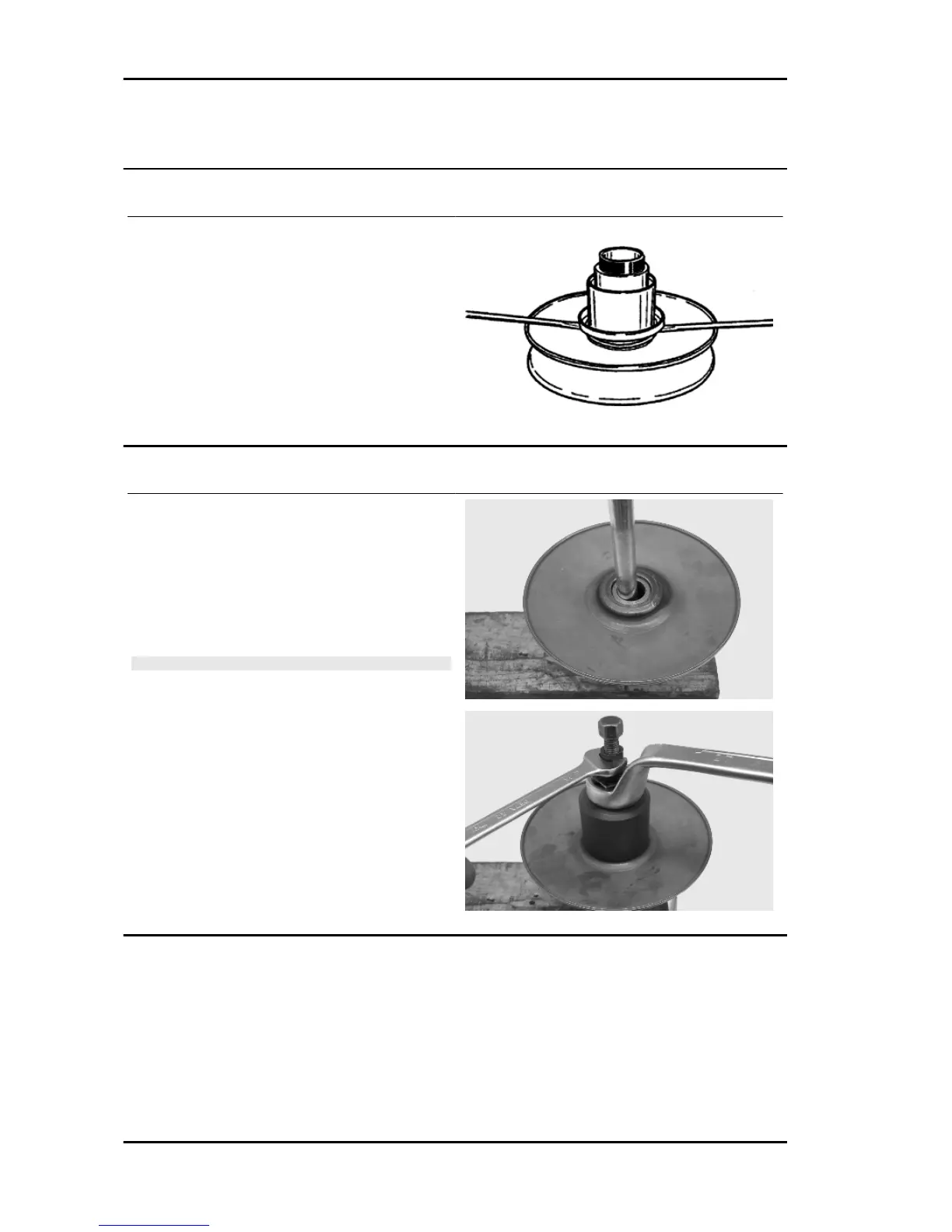

Pin retaining collar
- Remove the collar with the aid of 2 screwdrivers.
- Remove the 3 guide pins and the movable half-
pulley.
Removing the driven half-pulley bearing
- Remove the retaining ring using two flat blade
screwdrivers.
- Using a hammer and pin, knock the ball bearing
out as shown in the figure.
- Remove the roller bearing using the specific ex-
tractor.
N.B.
REST THE HALF-PULLEY ON A WOOD SURFACE TO
AVOID DAMAGING THE THREADED RINGLET OF THE
DRIVEN PULLEY UPON REMOVING IT.
Specific tooling
020375Y Adaptor 28 x 30 mm
020376Y Adaptor handle
020439Y 17 mm guide
Engine Liberty 125 - 200 4tempi
ENG - 70

PIAGGIO Liberty 125 Specifications

General

Displacement	124 cc
Fuel System	Electronic Injection
Front Suspension	Hydraulic telescopic fork
Rear Brake	140 mm drum
Front Tire	90/80 - 16"
Rear Tire	100/80 - 14"
Wheelbase	1, 340 mm
Length	1, 945 mm
Width	690 mm
Seat Height	790 mm
Engine Type	Single cylinder, 4-stroke
Torque	10.4 Nm @ 8, 000 rpm
Cooling System	Air cooled
Transmission	CVT
Rear Suspension	Single shock absorber
Front Brake	240 mm disc
Fuel Tank Capacity	6 liters
Weight	124 kg
