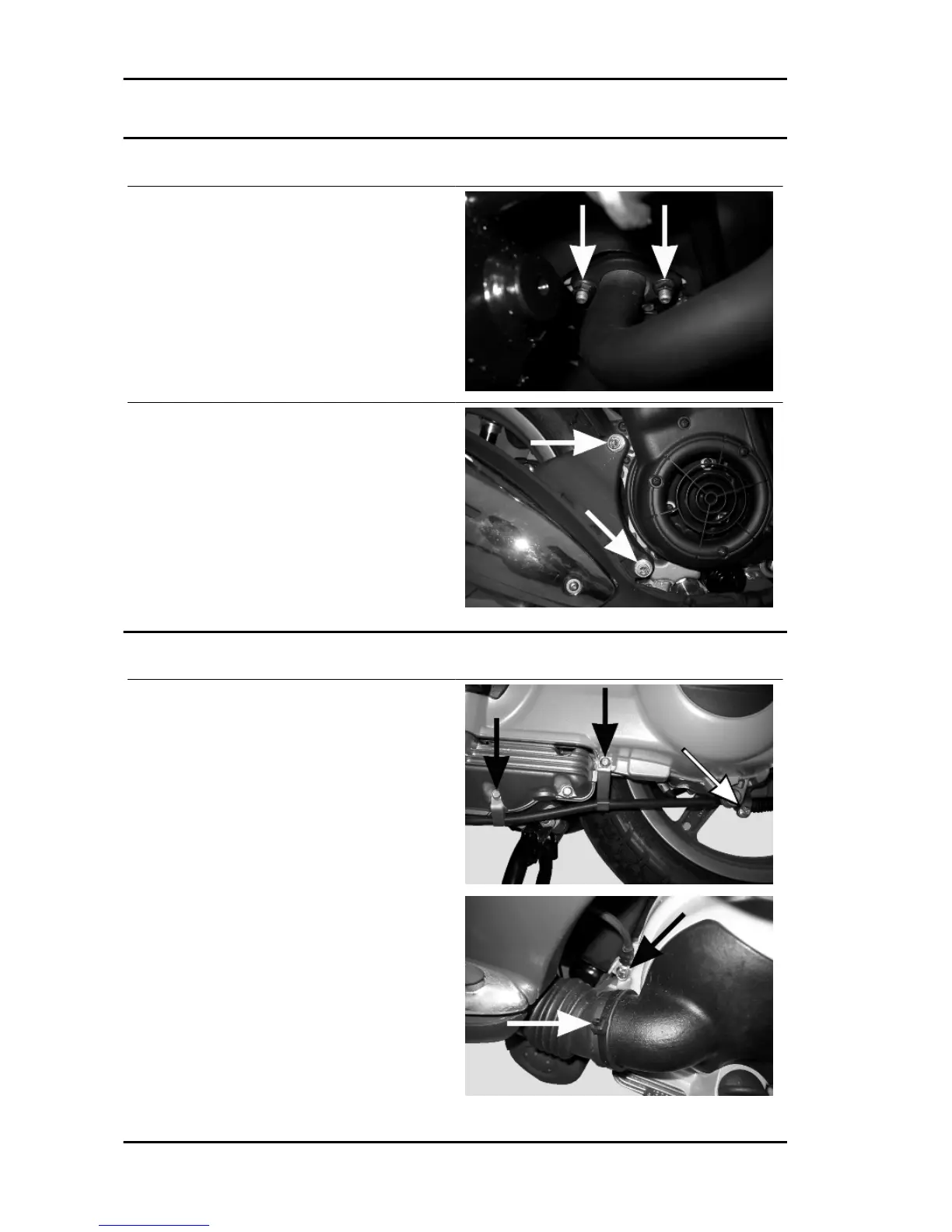

Exhaust assy. Removal
- Remove the 2 fixing nuts from the manifold to the
head
- Undo the 2 screws fixing the muffler to the hous-
ing; then remove the whole muffler paying atten-
tion to the interference between its supporting
bracket and the cooling cover.
Removal of the engine from the vehicle
•
Remove the spark plug access cover.
•
Remove the helmet compartment.
•
Remove the entire muffler assembly.
•
Disconnect the spark plug cap.
•
Remove the 3 screws on the transmis-
sion cover fixing the rear brake trans-
mission.
•
Cut the fixing clamp and disconnect the
transmission air pipe. Disconnect the
engine ground lead after having un-
screwed the specific screw on the cov-
er.
Engine from vehicle Liberty 125 - 200 4tempi
ENG VE - 62

PIAGGIO Liberty 125 Specifications

General

Displacement	124 cc
Fuel System	Electronic Injection
Front Suspension	Hydraulic telescopic fork
Rear Brake	140 mm drum
Front Tire	90/80 - 16"
Rear Tire	100/80 - 14"
Wheelbase	1, 340 mm
Length	1, 945 mm
Width	690 mm
Seat Height	790 mm
Engine Type	Single cylinder, 4-stroke
Torque	10.4 Nm @ 8, 000 rpm
Cooling System	Air cooled
Transmission	CVT
Rear Suspension	Single shock absorber
Front Brake	240 mm disc
Fuel Tank Capacity	6 liters
Weight	124 kg
