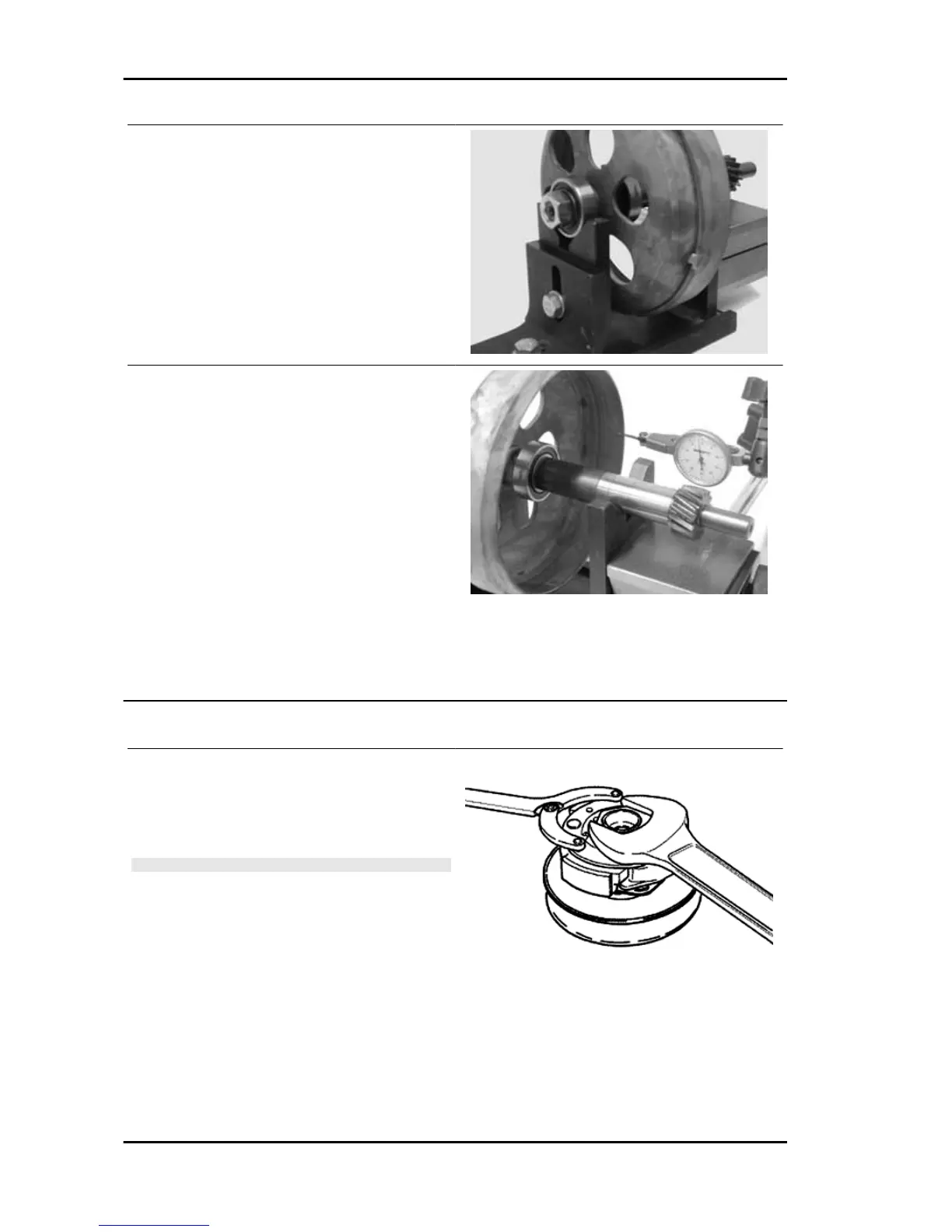

Checking the bell working surface eccentricity

- Install the bell on a driven pulley shaft using 2

bearings (inside diameter: 15 and 17 mm).

- Lock with the original spacer and nut.

- Place the bell/shaft unit on the support to check

the crankshaft alignment.

- Using a feeler pin gauge and the magnetic base,

measure the bell eccentricity.

- Repeat the measurement in 3 positions (Central,

internal, external).

- If faults are found, replace the bell.

Specific tooling

020074Y Support base for checking crankshaft

alignment

020335Y Magnetic support for dial gauge

Characteristic

clutch bell inspection: Limit eccentricity.

Admissible limit eccentricity: 0.15 mm

Removing the clutch

- By means of a calliper spanner, block the clutch

assembly rotation. - With a 46 mm spanner re-

move the clutch lock nut. - Remove the clutch and

the spring.

CAUTION

UPON REMOVING THE CLUTCH ASSEMBLY LOCK NUT,

PAY ATTENTION TO KEEP THE ASSEMBLY IN ITS SEAT

SO THAT IT DOES NOT COME OUT DUE TO THE SPRING

THRUST

Specific tooling

020565Y Flywheel lock calliper spanner

Engine Liberty 125 - 200 4tempi

ENG - 68
