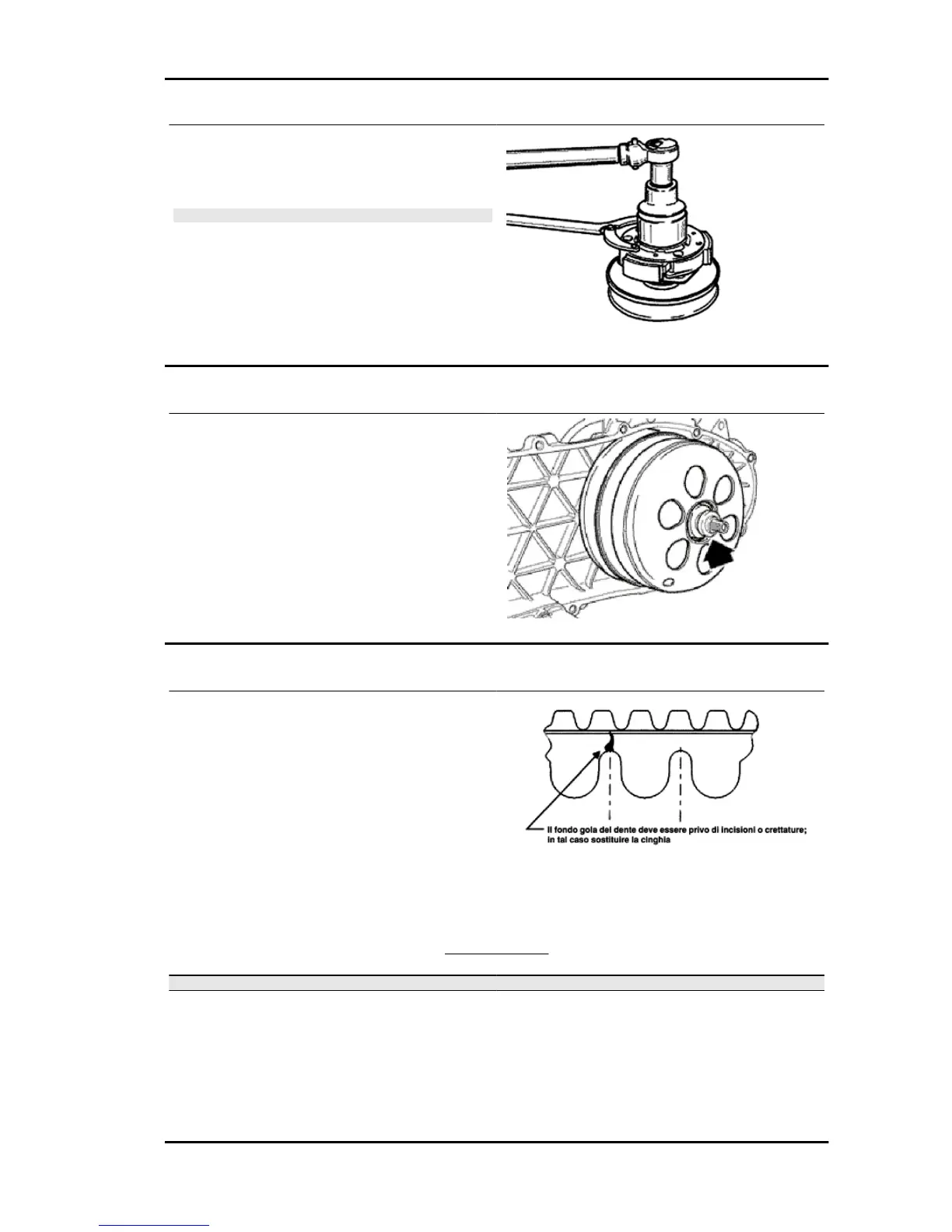

- Refit the clutch assembly following the fitting op-
eration but in reverse order and using the calliper
spanner. Lock the nut to the specified torque.
CAUTION
USE A BOX-SPANNER WITH SMALL CHAMFER SO AS
NOT TO DAMAGE THE CLUTCH NUT.UPON FITTING THE
CLUTCH ASSEMBLY LOCK NUT, PAY ATTENTION TO
KEEP THE ASSEMBLY IN ITS SEAT UNTIL SOME NUT
THREADS HOLD IT IN PLACE
Locking torques (N*m)
Locking torque 55 ÷ 60 Nm
Refitting the driven pulley
- Reassemble the clutch bell and spacer.
Drive-belt
During the wear checks foreseen in the scheduled
maintenance services at 6,000 km; 18,000 km;
etc., check that the rim bottom of the toothing does
not show signs of incisions or cracking (see figure):
The rim bottom of the tooth must not have incisions
or cracking; if it does, change the belt.
- Check that the driving belt is not damaged.
- Check the width of the belt.
VERSION 125
Specification
Desc./Quantity
Minimum width 21.5 mm
Standard width 22.5 ± 0.2 mm
Liberty 125 - 200 4tempi Engine
ENG - 75

PIAGGIO Liberty 125 Specifications

General

Displacement	124 cc
Fuel System	Electronic Injection
Front Suspension	Hydraulic telescopic fork
Rear Brake	140 mm drum
Front Tire	90/80 - 16"
Rear Tire	100/80 - 14"
Wheelbase	1, 340 mm
Length	1, 945 mm
Width	690 mm
Seat Height	790 mm
Engine Type	Single cylinder, 4-stroke
Torque	10.4 Nm @ 8, 000 rpm
Cooling System	Air cooled
Transmission	CVT
Rear Suspension	Single shock absorber
Front Brake	240 mm disc
Fuel Tank Capacity	6 liters
Weight	124 kg
