AGIP BRAKE 4 Brake fluid
FMVSS DOT 4 Synthetic fluid
Locking torques (N*m)
Oil bleed screw 8 ÷ 12

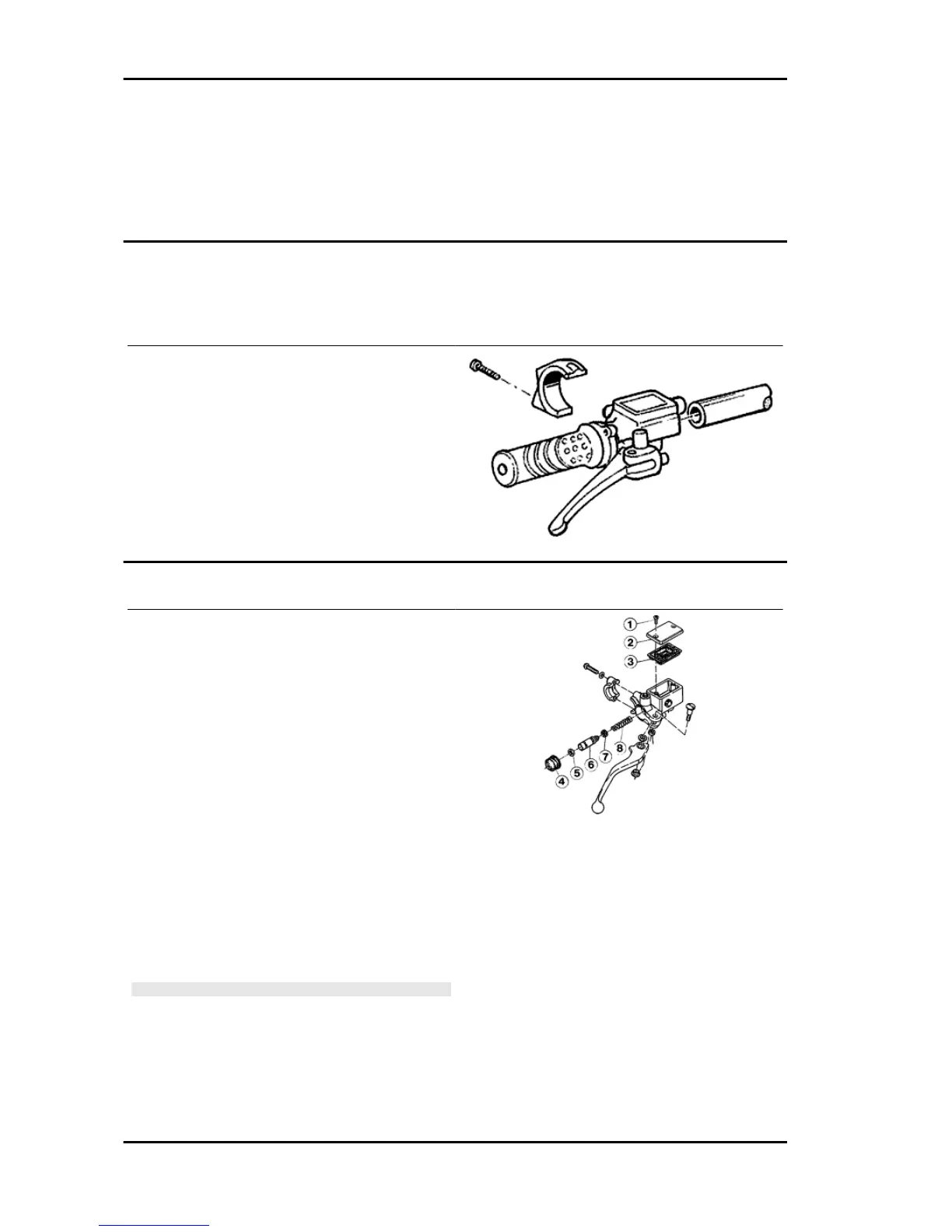

Front brake pump
-After removing the front and rear handlebar covers, act on the two stand fixing points (see the figure).
- Disconnect the tube, collecting the brake oil in a container.
- On refitting, perform the operation in reverse.
- Tighten the hydraulic line to the prescribed torque
and bleed the system.
Locking torques (N*m)
Brake fluid pump - hose fitting 20 ÷ 25 Nm
Removal
- Bleed the circuit and drain the brake fluid through
the bleeding screw located on the calliper and ac-
tuate the brake lever until no more fluid flows out.
-Remove the oil pump from the handlebar; remove
the brake lever and then remove the wheel cylin-
der.
1 - Tank cap screw.
2. Tank cover.
3. Diaphragm.
4. Bellows.
5. Sealing ring.
6. Piston.
7. Gasket.
8 - Spring
CAUTION
- THE PRESENCE OF BRAKE FLUID ON THE DISC OR
BRAKE PADS REDUCES THE BRAKING EFFICIENCY.
IN THIS CASE, REPLACE THE PADS AND CLEAN THE
DISC WITH A HIGH-QUALITY SOLVENT.
CONTACT WITH BRAKE FLUID WILL DAMAGE PAINTED
SURFACES.
RUBBER PARTS SHOULD NEVER BE LEFT IN ALCOHOL
FOR LONGER THAN 20 SECONDS.
Braking system Liberty 125 - 200 4tempi
BRAK SYS - 150

PIAGGIO Liberty 125 Specifications

General

Displacement	124 cc
Fuel System	Electronic Injection
Front Suspension	Hydraulic telescopic fork
Rear Brake	140 mm drum
Front Tire	90/80 - 16"
Rear Tire	100/80 - 14"
Wheelbase	1, 340 mm
Length	1, 945 mm
Width	690 mm
Seat Height	790 mm
Engine Type	Single cylinder, 4-stroke
Torque	10.4 Nm @ 8, 000 rpm
Cooling System	Air cooled
Transmission	CVT
Rear Suspension	Single shock absorber
Front Brake	240 mm disc
Fuel Tank Capacity	6 liters
Weight	124 kg
