PIAGGIO Liberty 125 User Manual

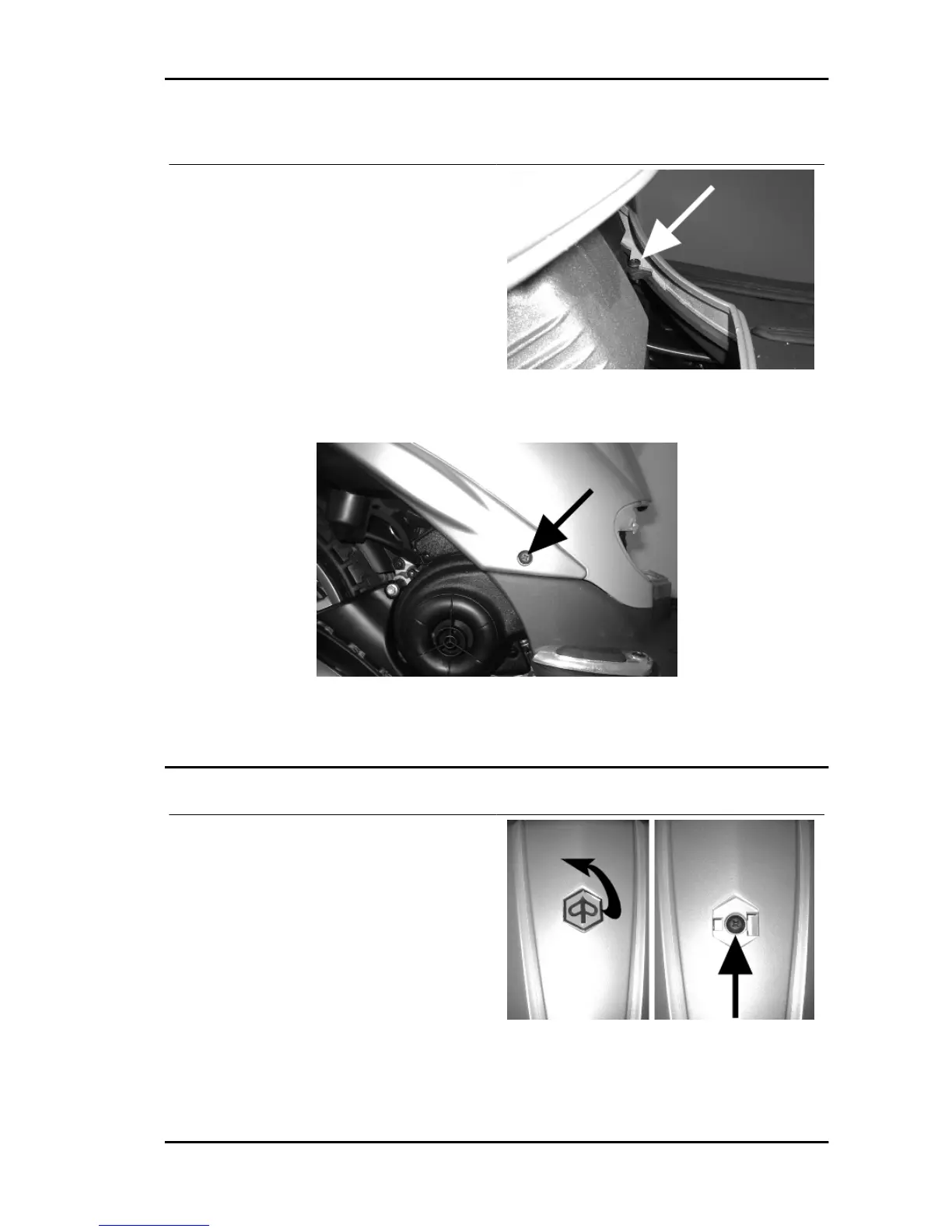

Frame central cover
• Remove the rear luggage rack
• Remove the saddle
• Remove the spark plug access cover, unscrew
the 2 screws joining the helmet compartment
clamp with the footrest.
• Unscrew the 2 side screws placed on the bumper rings.
• Remove the cover by holding it from the rear part and disconnect the turn indicator light connections
See also
Rear rack
Seat
Legshield
• Remove the countershield
• Remove the footrest
• Remove the front steering tube
• Remove the front shield using a blade and work-
ing carefully on the right side of it
• Unscrew the screw below and lift off the cover
• Unscrew the front screw securing the shield
Liberty 125 - 200 4tempi Chassis
CHAS - 157

PIAGGIO Liberty 125 Specifications

General

Displacement	124 cc
Fuel System	Electronic Injection
Front Suspension	Hydraulic telescopic fork
Rear Brake	140 mm drum
Front Tire	90/80 - 16"
Rear Tire	100/80 - 14"
Wheelbase	1, 340 mm
Length	1, 945 mm
Width	690 mm
Seat Height	790 mm
Engine Type	Single cylinder, 4-stroke
Torque	10.4 Nm @ 8, 000 rpm
Cooling System	Air cooled
Transmission	CVT
Rear Suspension	Single shock absorber
Front Brake	240 mm disc
Fuel Tank Capacity	6 liters
Weight	124 kg
