Removing the oil sump
- Remove the oil filler plug, the transmission cover,
the complete drive pulley assembly with belt and
the sprocket wheel, as described in the Transmis-
sion chapter.
- Drain the oil from the sump as described above.

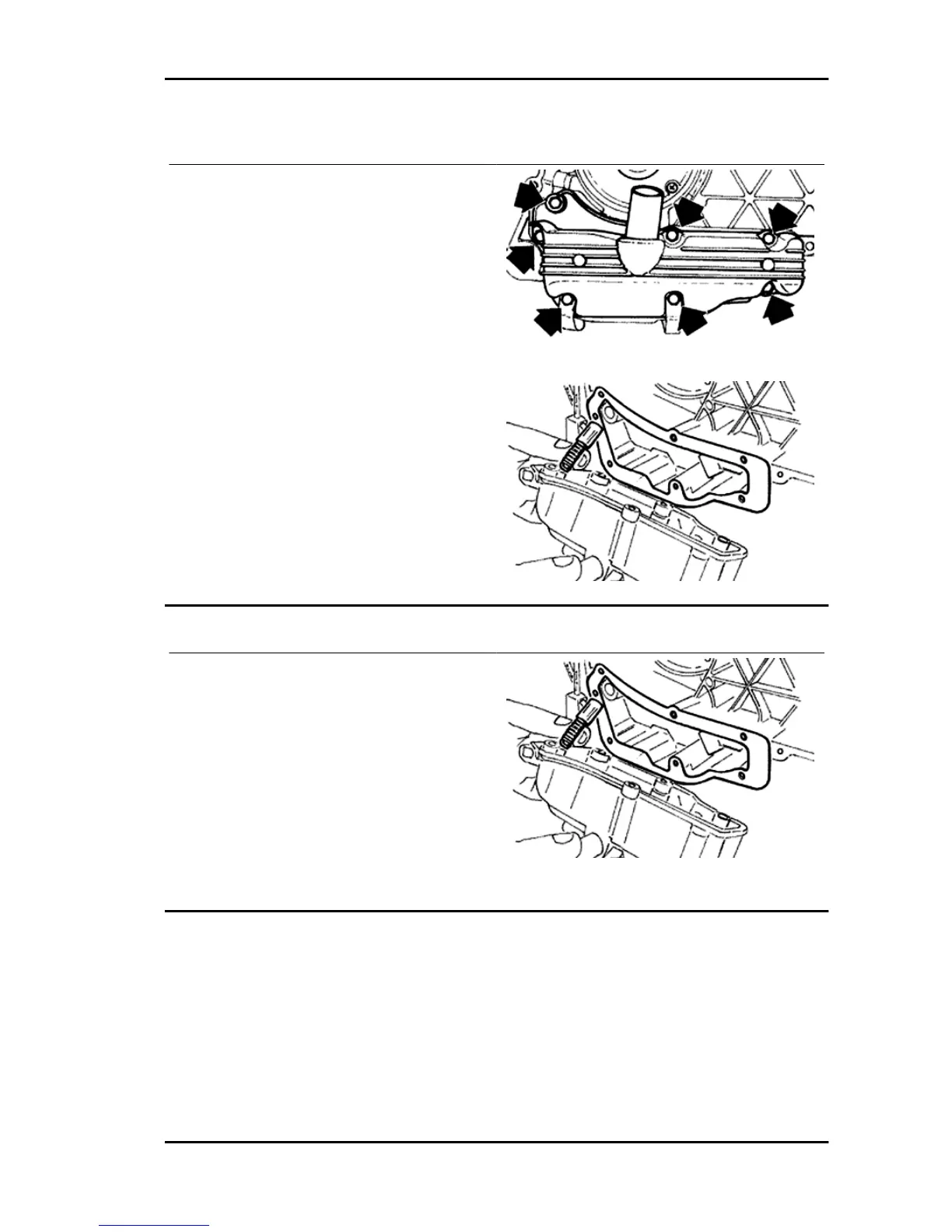

- Remove the 7 screws indicated in the figure and
the 2 rear brake transmission fixing brackets.
- Remove the spring, the by-pass piston and the
gasket shown in the second image.
Inspecting the by-pass valve
- Check the unloaded spring length.
- Check that the small piston is not scored.
- Ensure that it slides freely on the crankcase and
that it guarantees a good seal.
- If not, eliminate any impurities or replace defec-
tive parts.
Characteristic
By-pass check up: Standard length
54.2 mm
Liberty 125 - 200 4tempi Engine
ENG - 123

PIAGGIO Liberty 125 Specifications

General

Displacement	124 cc
Fuel System	Electronic Injection
Front Suspension	Hydraulic telescopic fork
Rear Brake	140 mm drum
Front Tire	90/80 - 16"
Rear Tire	100/80 - 14"
Wheelbase	1, 340 mm
Length	1, 945 mm
Width	690 mm
Seat Height	790 mm
Engine Type	Single cylinder, 4-stroke
Torque	10.4 Nm @ 8, 000 rpm
Cooling System	Air cooled
Transmission	CVT
Rear Suspension	Single shock absorber
Front Brake	240 mm disc
Fuel Tank Capacity	6 liters
Weight	124 kg
