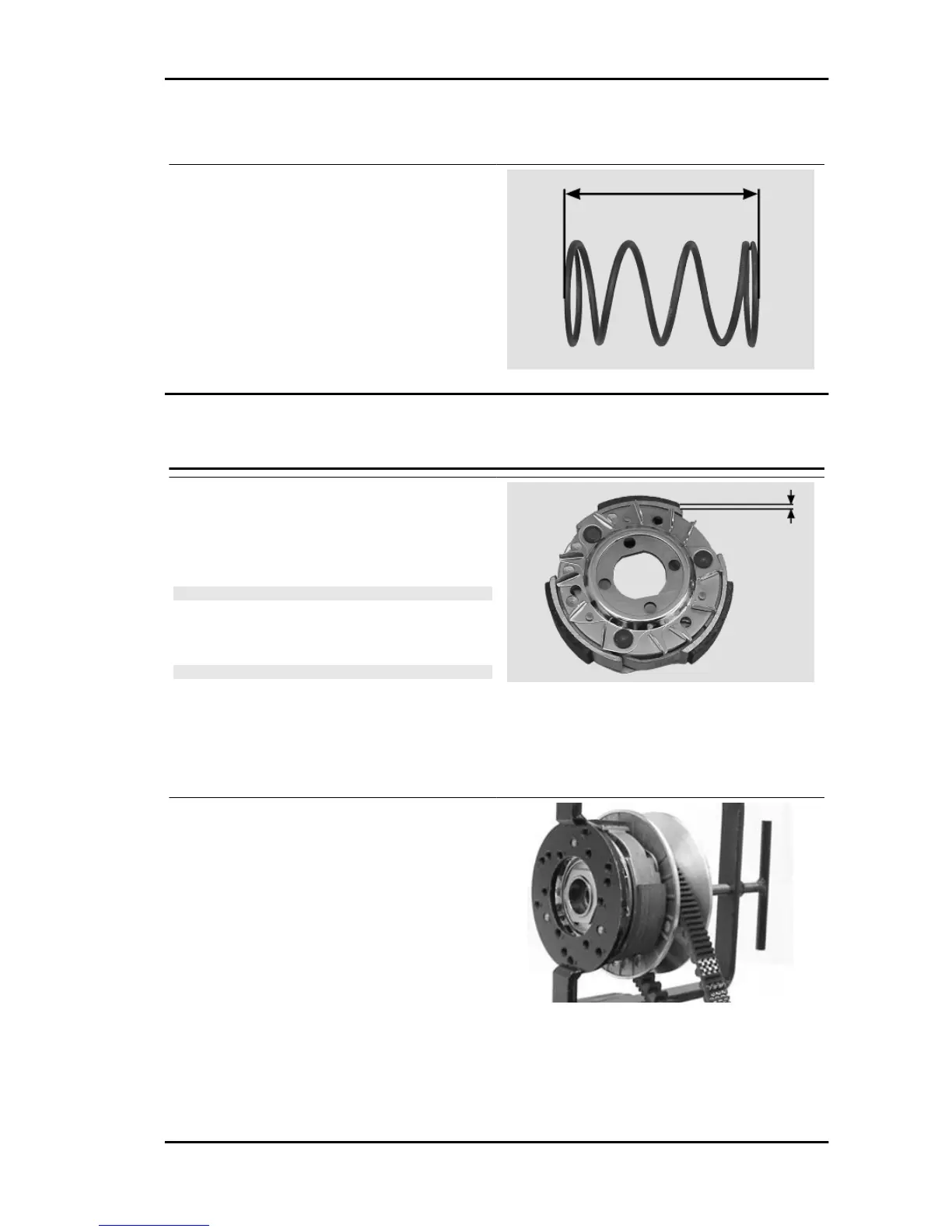

Inspecting the clutch spring
- Measure the unloaded length of the spring of the
movable driven half-pulley.
Characteristic
Standard length:
106 mm
Refitting the clutch
Version 200
- Check the thickness of the clutch mass friction
material.
-The masses must not show traces of lubricants;
otherwise, check the driven pulley unit.
N.B.
UPON RUNNING-IN, THE MASSES MUST EXHIBIT A CEN-
TRAL CONTACT SURFACE AND MUST NOT BE DIFFER-
ENT FROM ONE ANOTHER. VARIOUS CONDITIONS CAN
CAUSE THE CLUTCH TO TEAR.
CAUTION
DO NOT OPEN THE MASSES USING TOOLS SO AS TO
PREVENT A VARIATION IN THE RETURN SPRING LOAD.
Characteristic
Minimum thickness permitted:
1 mm
- Support the driven pulley spring compressor ap-
propriate tool with the control screw in vertical axis.
- Arrange the tool with the medium length pins
screwed in position "C" on the inside.
- Introduce the adapter ring 11 with the chamfering
facing upwards.
- Insert the clutch on the adapter ring.
- Lubricate the end of the spring that abuts against
the servo-system closing collar.
- Insert the spring with its plastic holder in contact
with the clutch.
Liberty 125 - 200 4tempi Engine
ENG - 73

PIAGGIO Liberty 125 Specifications

General

Displacement	124 cc
Fuel System	Electronic Injection
Front Suspension	Hydraulic telescopic fork
Rear Brake	140 mm drum
Front Tire	90/80 - 16"
Rear Tire	100/80 - 14"
Wheelbase	1, 340 mm
Length	1, 945 mm
Width	690 mm
Seat Height	790 mm
Engine Type	Single cylinder, 4-stroke
Torque	10.4 Nm @ 8, 000 rpm
Cooling System	Air cooled
Transmission	CVT
Rear Suspension	Single shock absorber
Front Brake	240 mm disc
Fuel Tank Capacity	6 liters
Weight	124 kg
