PIAGGIO Liberty 125 User Manual

Level indicators and enable signals section

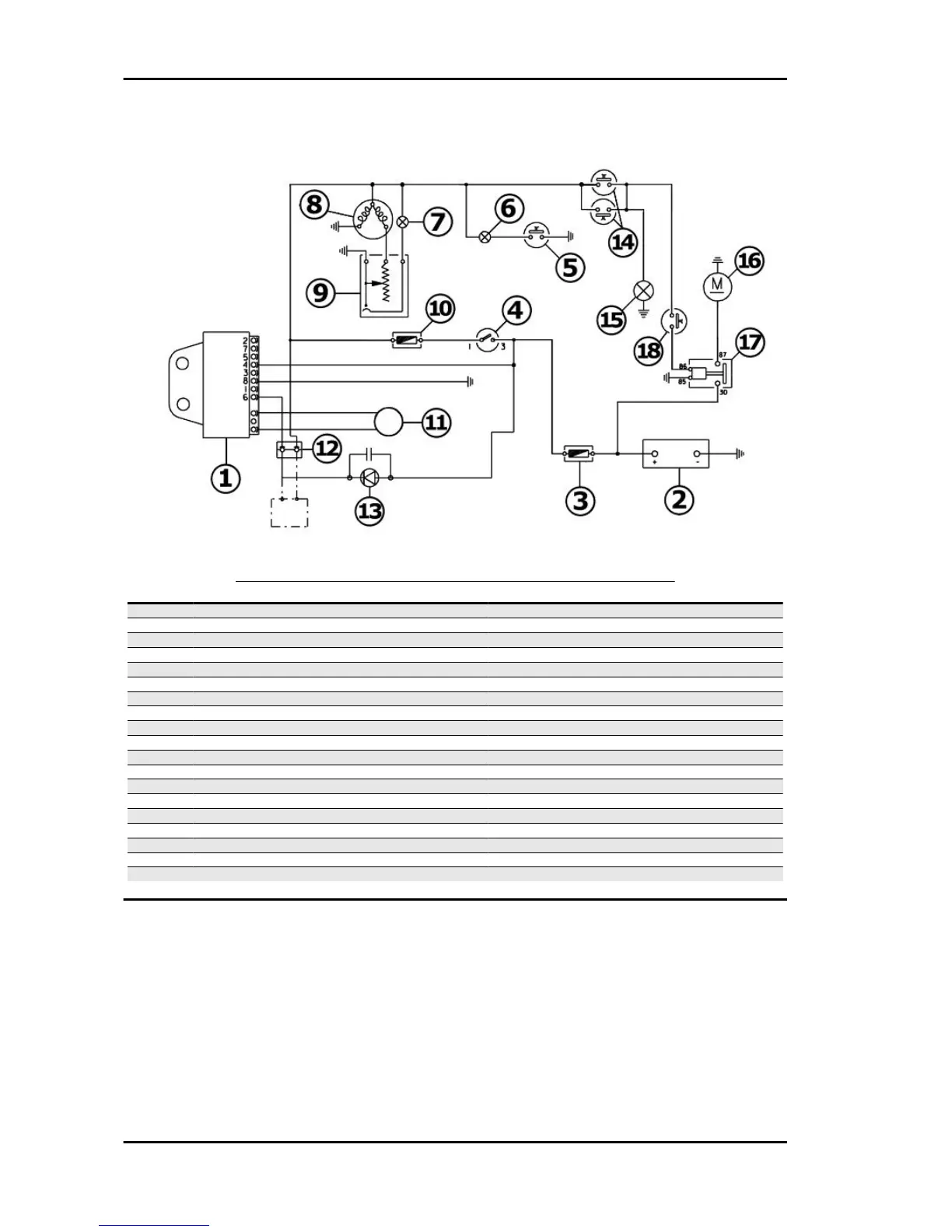

START PERMISSIVE BUTTONS AND LEVEL INDICATORS
Specification
Desc./Quantity
1 electronic control unit
2 Battery (200) 12V - 12Ah
3 Battery (125) 12V - 9Ah
4 Main fusible 15A
5 Key switch
6 Engine oil pressure sensor
7 Low oil pressure warning light 12V - 1,2W
8 Low fuel warning light 12V - 1.2W
9 Fuel gauge
10 Fuel level sender
11 Fuse 7.5 A
12 Immobilizer aerial
13 Low engine oil pressure sensor
14 Immobiliser LED
15 Front and rear brake light button
16 Taillight bulb 12V - 5W
17 Starter motor
18 Starter relay
19 Start up button
Electrical system Liberty 125 - 200 4tempi
ELE SYS - 46

PIAGGIO Liberty 125 Specifications

General

Displacement	124 cc
Fuel System	Electronic Injection
Front Suspension	Hydraulic telescopic fork
Rear Brake	140 mm drum
Front Tire	90/80 - 16"
Rear Tire	100/80 - 14"
Wheelbase	1, 340 mm
Length	1, 945 mm
Width	690 mm
Seat Height	790 mm
Engine Type	Single cylinder, 4-stroke
Torque	10.4 Nm @ 8, 000 rpm
Cooling System	Air cooled
Transmission	CVT
Rear Suspension	Single shock absorber
Front Brake	240 mm disc
Fuel Tank Capacity	6 liters
Weight	124 kg
