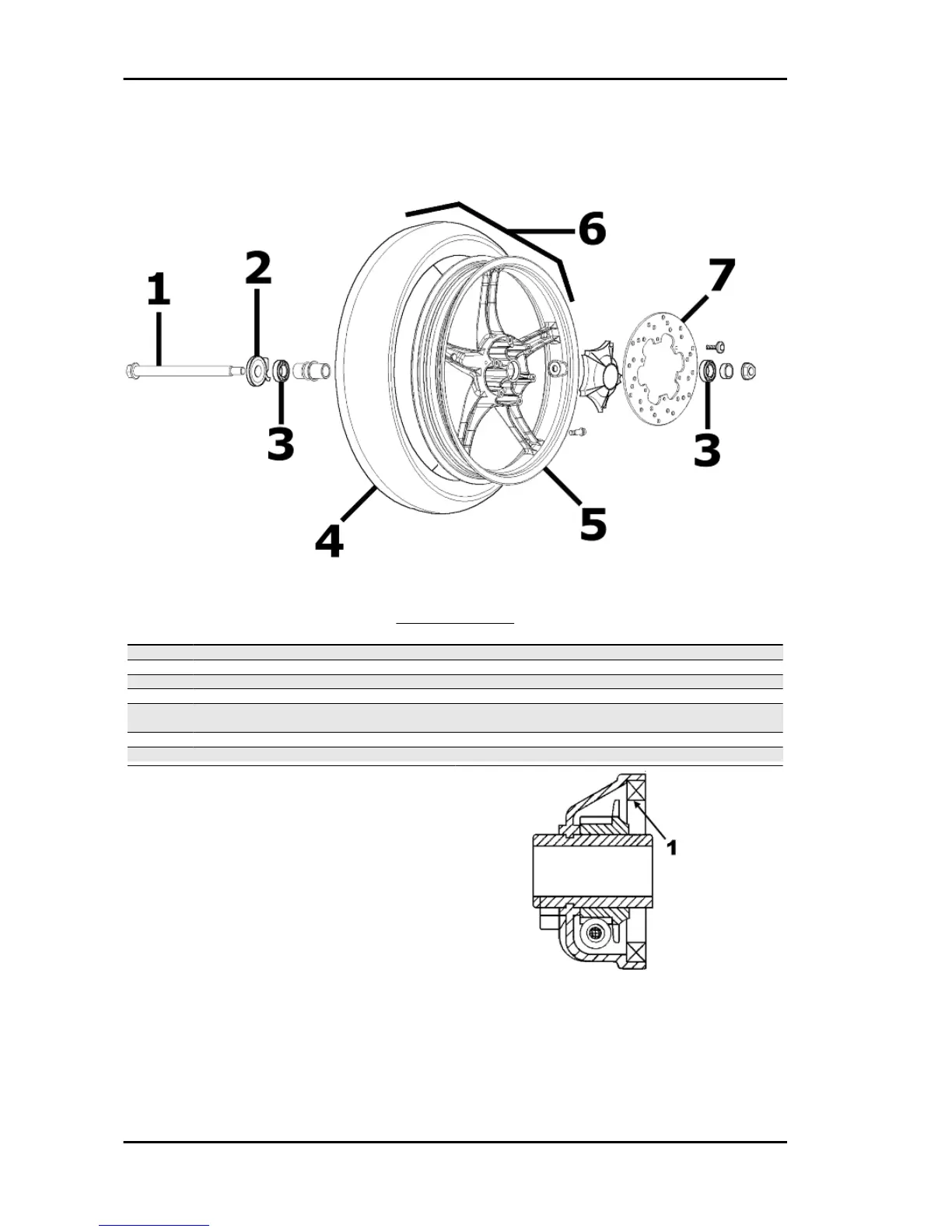

Front wheel
FRONT WHEEL
Code
Action Duration
1 003038 Front wheel axle - Replacement
2 002011 Odometer drive - Replacement
3 003040 Front wheel bearings - Replacement
4 003047 Front tyre - Replacement
5 003037 Front wheel rim - Removal and Re-
fitting
6 004123 Front wheel - Replacement
7 002041 Brake disc - Replacement
Grease tone wheel or drive
Please take note that the code has been intro-
duced:
900001 - Tone wheel / drive greasing - 15'.
Never mistake the codes 002011 (movement sen-
sor replacement) and 005089 (tone wheel replace-
ment) in the event of noise of the indicated
components. The grease recommended is TUTE-
LA MRM 2 (soap-based lithium grease with Mo-
lybdenum disulphide).
In the following points we indicate with an arrow
the area to be greased (1 - Drive, 2 - Tone wheel)
Time Liberty 125 - 200 4tempi
TIME - 206

PIAGGIO Liberty 125 Specifications

General

Displacement	124 cc
Fuel System	Electronic Injection
Front Suspension	Hydraulic telescopic fork
Rear Brake	140 mm drum
Front Tire	90/80 - 16"
Rear Tire	100/80 - 14"
Wheelbase	1, 340 mm
Length	1, 945 mm
Width	690 mm
Seat Height	790 mm
Engine Type	Single cylinder, 4-stroke
Torque	10.4 Nm @ 8, 000 rpm
Cooling System	Air cooled
Transmission	CVT
Rear Suspension	Single shock absorber
Front Brake	240 mm disc
Fuel Tank Capacity	6 liters
Weight	124 kg
