PIAGGIO Liberty 125 User Manual

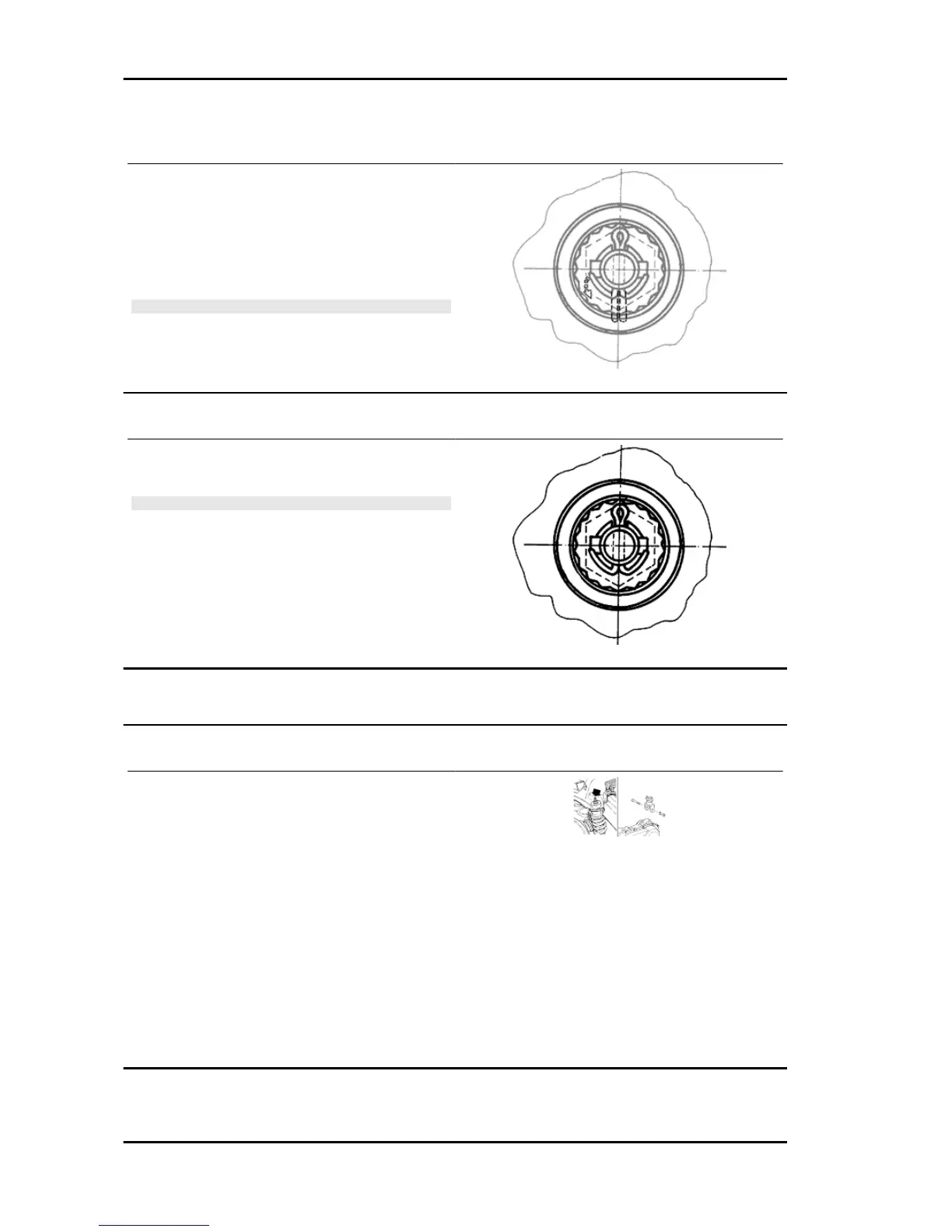

Removing the rear wheel
- Use a screwdriver as a lever between the drum
and the cover.
-Straighten the split pin and remove the cap.
-Remove the wheel acting on the central fixing
point.
WARNING
-ALWAYS USE NEW SPLIT PINS FOR REFITTING.
Refitting the rear wheel
-Refit the parts in the reverse order as for removal,
lock the wheel nut to the specified torque.
WARNING
- FOLD THE EDGES OF THE SPLIT PIN AS SHOWN IN OR-
DER TO AVOID BACKSLASH BETWEEN THE CAP AND
THE WHEEL AXLE.
Locking torques (N*m)
Rear wheel axle 104 ÷ 126
Shock absorbers
Removal
- To replace the shock absorber remove the rear
cover and battery access flap to get and remove
the shock absorber/ chassis anchoring nut. Then
remove the shock absorber/engine anchorage
nut.
- When refitting, tighten the shock absorber/chas-
sis anchoring nut and the shock absorber/engine
pin to the prescribed torque.
Locking torques (N*m)
Shock absorber/engine pin torque 33 to 41 N·m
Shock absorber/frame nut torque 20 to 25 Nm
Centre-stand
Assembly and staking of stand pivot pin to bracket
Suspensions Liberty 125 - 200 4tempi
SUSP - 142

PIAGGIO Liberty 125 Specifications

General

Displacement	124 cc
Fuel System	Electronic Injection
Front Suspension	Hydraulic telescopic fork
Rear Brake	140 mm drum
Front Tire	90/80 - 16"
Rear Tire	100/80 - 14"
Wheelbase	1, 340 mm
Length	1, 945 mm
Width	690 mm
Seat Height	790 mm
Engine Type	Single cylinder, 4-stroke
Torque	10.4 Nm @ 8, 000 rpm
Cooling System	Air cooled
Transmission	CVT
Rear Suspension	Single shock absorber
Front Brake	240 mm disc
Fuel Tank Capacity	6 liters
Weight	124 kg
