PIAGGIO Liberty 125 User Manual

IGNITION
Specification Desc./Quantity
1 electronic control unit
2 Magneto flywheel
3 Pick - up
4 HV coil
5 Spark plug
6 Voltage regulator

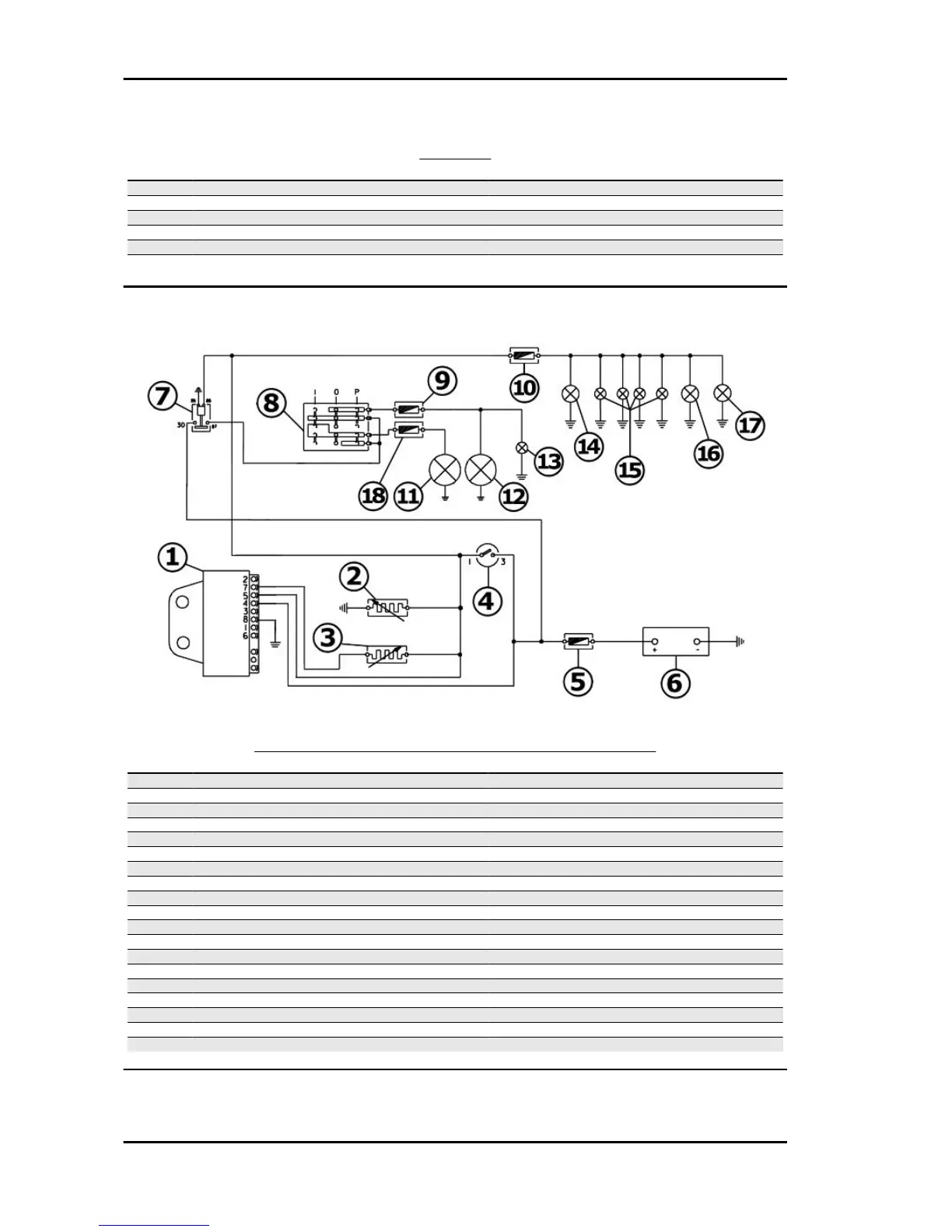

Headlights and automatic starter section
HEADLIGHTS AND AUTOMATIC STARTER SECTION
Specification
Desc./Quantity
1 electronic control unit
2 Carburettor heater
3 Automatic starter
4 Key switch
5 Main fusible 15A
6 Battery (125) 12V - 9Ah
7 Battery (200) 12V - 12Ah
8 Headlamp relay
9 Light switch
10 High-beam fuse 7,5A
11 Low-beam and dashboard lights fuse 7,5A
12 Low-beam light bulb 12V - 55W
13 High-beam light bulb 12V-55W
14 High-beam lamp warning light 12V - 1.2W
15 Front side-light bulb 12V - 5W
16 Four dashboards illuminating bulbs 12V - 1,2W
17 Taillight bulb 12V - 5W
18 License plate bulb 12V - 5W
19 Low-beam fuse 7,5A
Electrical system Liberty 125 - 200 4tempi
ELE SYS - 44

PIAGGIO Liberty 125 Specifications

General

Displacement	124 cc
Fuel System	Electronic Injection
Front Suspension	Hydraulic telescopic fork
Rear Brake	140 mm drum
Front Tire	90/80 - 16"
Rear Tire	100/80 - 14"
Wheelbase	1, 340 mm
Length	1, 945 mm
Width	690 mm
Seat Height	790 mm
Engine Type	Single cylinder, 4-stroke
Torque	10.4 Nm @ 8, 000 rpm
Cooling System	Air cooled
Transmission	CVT
Rear Suspension	Single shock absorber
Front Brake	240 mm disc
Fuel Tank Capacity	6 liters
Weight	124 kg
