PIAGGIO Liberty 125 User Manual

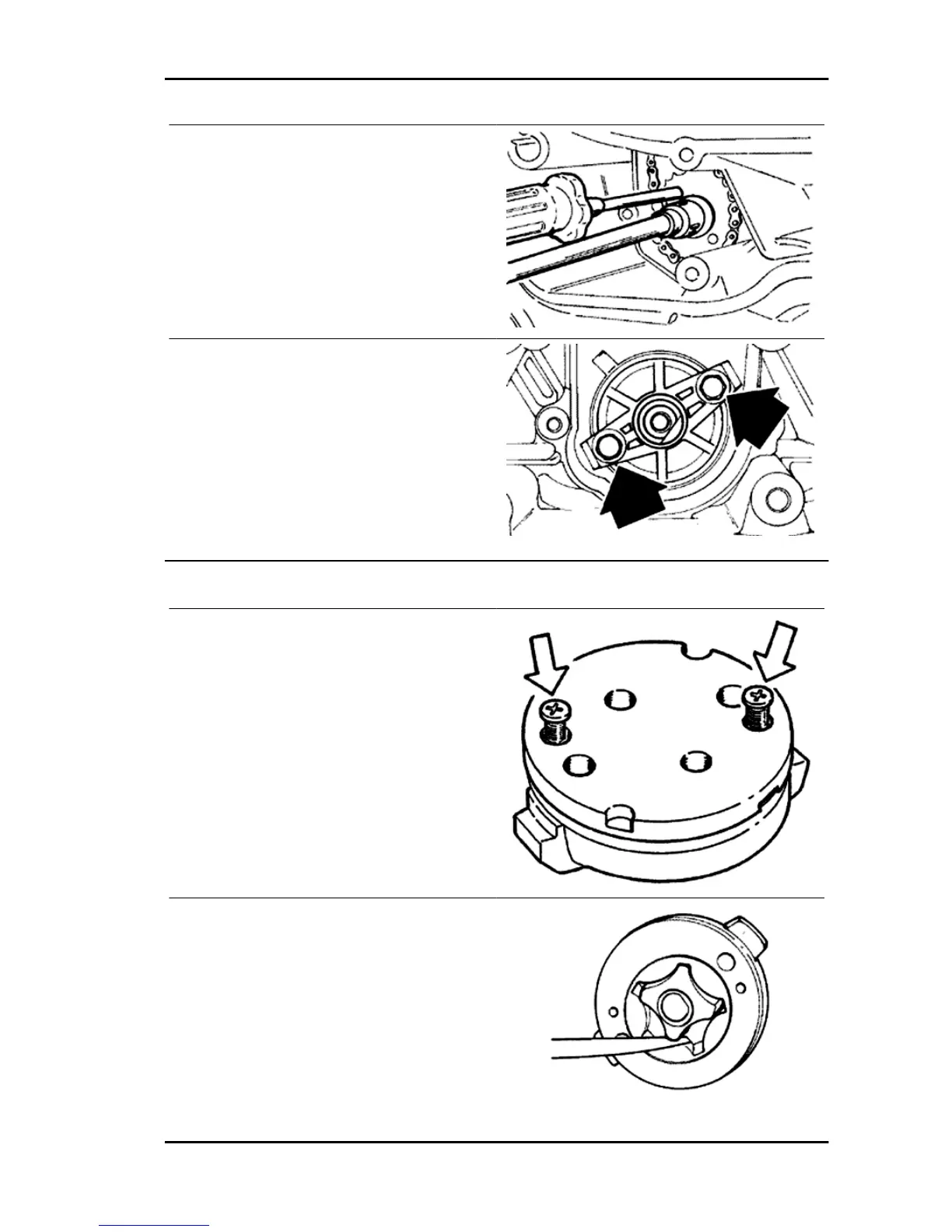

- Remove the central screw with Belleville washer,
as shown in the diagram.
- Remove the chain with the pulley.
- Remove the crankshaft control pinion.
- Remove the oil pump acting on the 2 retainers as
shown in the figure.
- Remove the oil pump seal.
IT IS ADVISABLE TO MARK THE CHAIN IN ORDER TO EN-
SURE THAT THE INITIAL DIRECTION OF ROTATION IS
MAINTAINED.
Inspection
- Remove the two screws and the oil pump cover.
- Remove the clip retaining the innermost rotor.
- Remove and wash the rotors thoroughly with pet-
rol and compressed air.
- Reassemble the rotors in the pump body, keep-
ing the two reference marks visible Replace the
clip.
- Using a thickness gauge, check the distance be-
tween the rotors in the position shown in the figure.
Characteristic
Maximum clearance admitted
0.12 mm
Liberty 125 - 200 4tempi Engine
ENG - 121

PIAGGIO Liberty 125 Specifications

General

Displacement	124 cc
Fuel System	Electronic Injection
Front Suspension	Hydraulic telescopic fork
Rear Brake	140 mm drum
Front Tire	90/80 - 16"
Rear Tire	100/80 - 14"
Wheelbase	1, 340 mm
Length	1, 945 mm
Width	690 mm
Seat Height	790 mm
Engine Type	Single cylinder, 4-stroke
Torque	10.4 Nm @ 8, 000 rpm
Cooling System	Air cooled
Transmission	CVT
Rear Suspension	Single shock absorber
Front Brake	240 mm disc
Fuel Tank Capacity	6 liters
Weight	124 kg
