PIAGGIO Liberty 125 User Manual

Taking apart approached cover motor

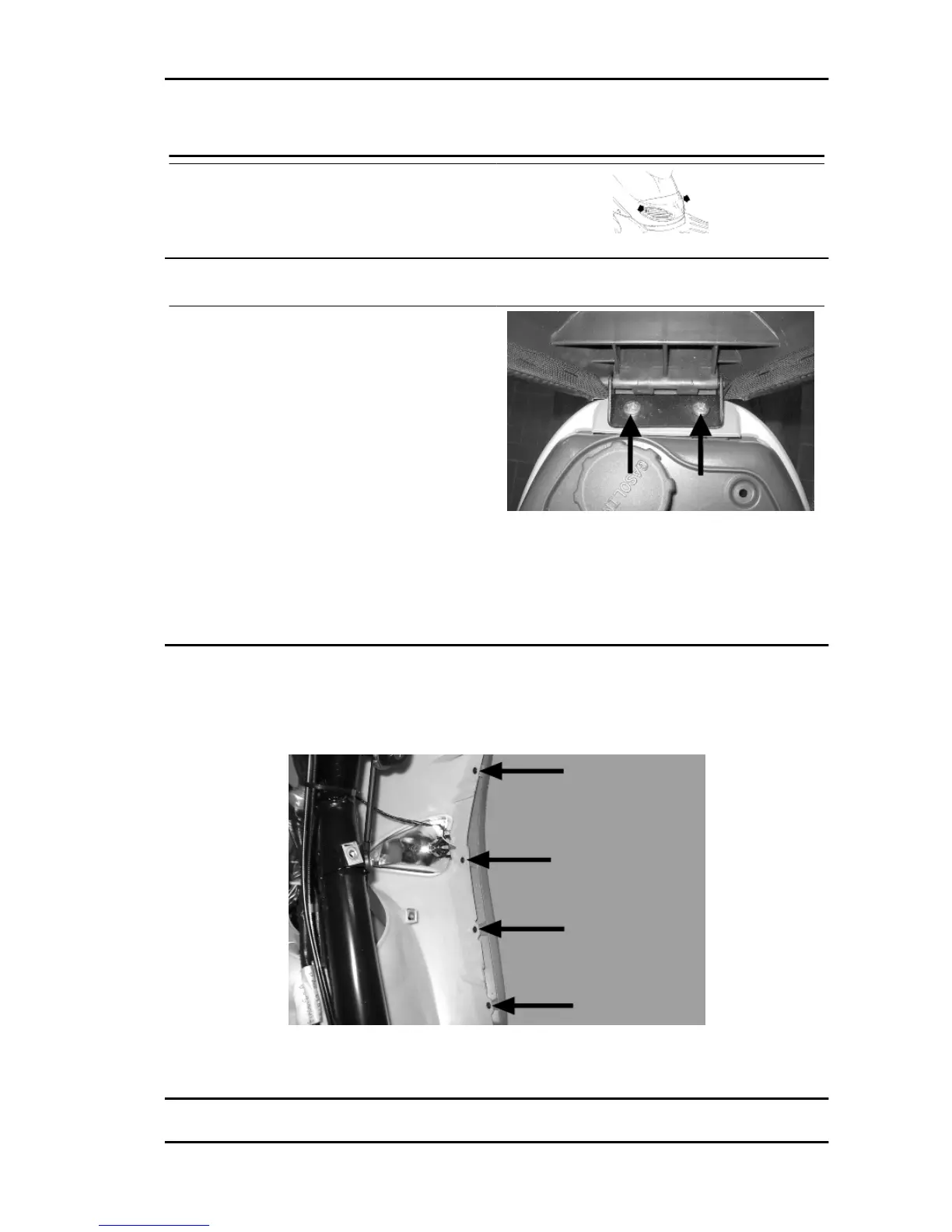

Remove the 2 implantations.
Seat
- Unscrew the 2 fixing screws and remove the sad-
dle
Saddle
After checking the homologation specifications, it was concluded that the strap on the saddle is redun-
dant. Please note that the passenger saddle comes without strap since last May. The design number
remains unchanged.
Side fairings
- Remove the countershield
- Unscrew the 4 screws securing it and remove the bumper band
See also
Knee-guard
Liberty 125 - 200 4tempi Chassis
CHAS - 153

PIAGGIO Liberty 125 Specifications

General

Displacement	124 cc
Fuel System	Electronic Injection
Front Suspension	Hydraulic telescopic fork
Rear Brake	140 mm drum
Front Tire	90/80 - 16"
Rear Tire	100/80 - 14"
Wheelbase	1, 340 mm
Length	1, 945 mm
Width	690 mm
Seat Height	790 mm
Engine Type	Single cylinder, 4-stroke
Torque	10.4 Nm @ 8, 000 rpm
Cooling System	Air cooled
Transmission	CVT
Rear Suspension	Single shock absorber
Front Brake	240 mm disc
Fuel Tank Capacity	6 liters
Weight	124 kg
