PIAGGIO Liberty 125 User Manual

See also

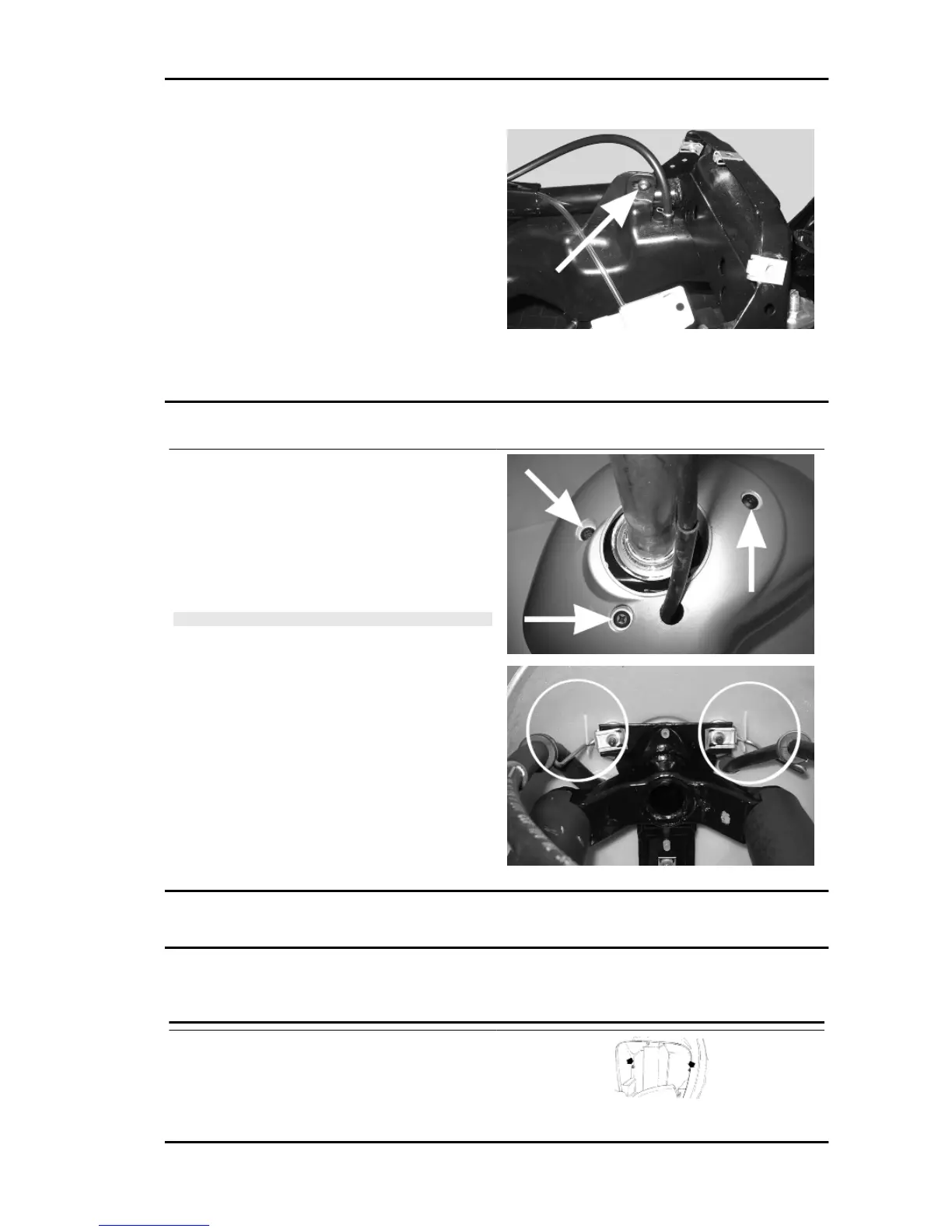

Frame central cover
Front mudguard
• Leaving the front wheel assembled, disassemble
the steering tube from the vehicle
• Unscrew the 3 screws securing it and remove
them
• Remove the speedometer transmission and
brake hose, then remove the mudguard
N.B.
WHEN REASSEMBLING BE CAREFUL TO POSITION THE
2 METAL GROMMETS TO AVOID ANY RUBBING AGAINST
THE WHEEL.
Top-case
Front
Disassembling the inner shield fairing (glove box ass.y)
- Remove the two screws from inside the glove
box.
Liberty 125 - 200 4tempi Chassis
CHAS - 163

PIAGGIO Liberty 125 Specifications

General

Displacement	124 cc
Fuel System	Electronic Injection
Front Suspension	Hydraulic telescopic fork
Rear Brake	140 mm drum
Front Tire	90/80 - 16"
Rear Tire	100/80 - 14"
Wheelbase	1, 340 mm
Length	1, 945 mm
Width	690 mm
Seat Height	790 mm
Engine Type	Single cylinder, 4-stroke
Torque	10.4 Nm @ 8, 000 rpm
Cooling System	Air cooled
Transmission	CVT
Rear Suspension	Single shock absorber
Front Brake	240 mm disc
Fuel Tank Capacity	6 liters
Weight	124 kg
