PIAGGIO Liberty 125 User Manual

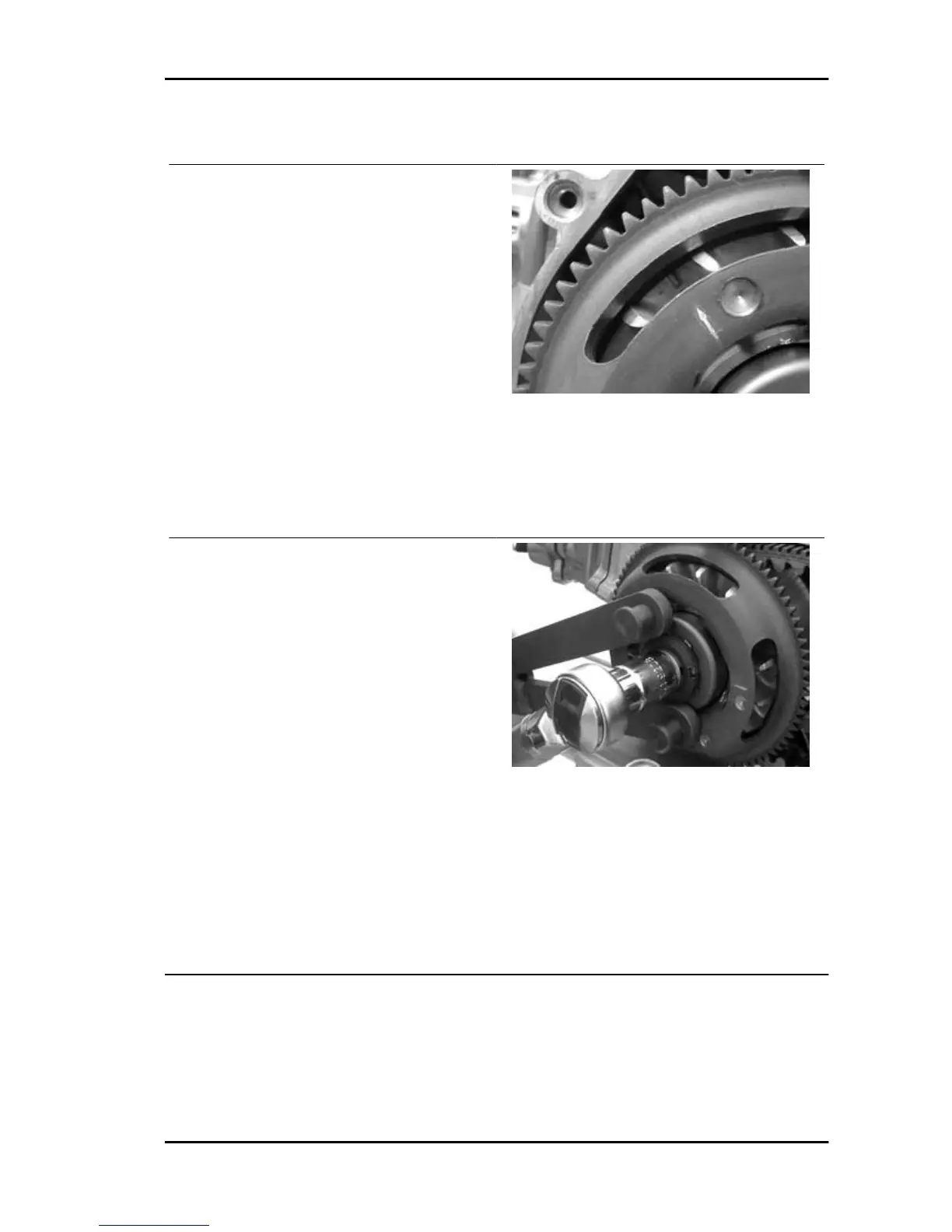

Refitting the driving pulley
- Correctly reassemble the previously removed
Bendix back to its position.
- Fit the steel shim washer in contact with the
bushing and the fixed driving pulley together with
the O-ring on the outside of the fan blades.
- Fit the entire start-up crown assembly with the
torque limiter.
- Fit the torque limiter on the crankshaft so as to
guarantee the references on the start-up crown
and the fixed driving half-pulley are aligned. In
case this is not possible, choose the closest posi-
tion to the references.
- Failure to do this may affect the cooling fan per-
formance
The lock wrench operates on the start-up crown.
- If the torque limiter is worn, the failure can be de-
tected when locking the nut on the crankshaft.
- The torque limiter cannot be serviced.
- In case of failures, replace the start-up crown and
the limiter.
Specific tooling
020442Y Pulley lock wrench
Recommended products
Loctite "Super Rapido" Loctite "Super Rapido"
243
Apply Loctite "Super Rapido" 243 on the threads
and screw the nut with washer to the prescribed
torque.
Locking torques (N*m)
Drive pulley nut 75 ÷ 83
Liberty 125 - 200 4tempi Engine
ENG - 79

PIAGGIO Liberty 125 Specifications

General

Displacement	124 cc
Fuel System	Electronic Injection
Front Suspension	Hydraulic telescopic fork
Rear Brake	140 mm drum
Front Tire	90/80 - 16"
Rear Tire	100/80 - 14"
Wheelbase	1, 340 mm
Length	1, 945 mm
Width	690 mm
Seat Height	790 mm
Engine Type	Single cylinder, 4-stroke
Torque	10.4 Nm @ 8, 000 rpm
Cooling System	Air cooled
Transmission	CVT
Rear Suspension	Single shock absorber
Front Brake	240 mm disc
Fuel Tank Capacity	6 liters
Weight	124 kg
