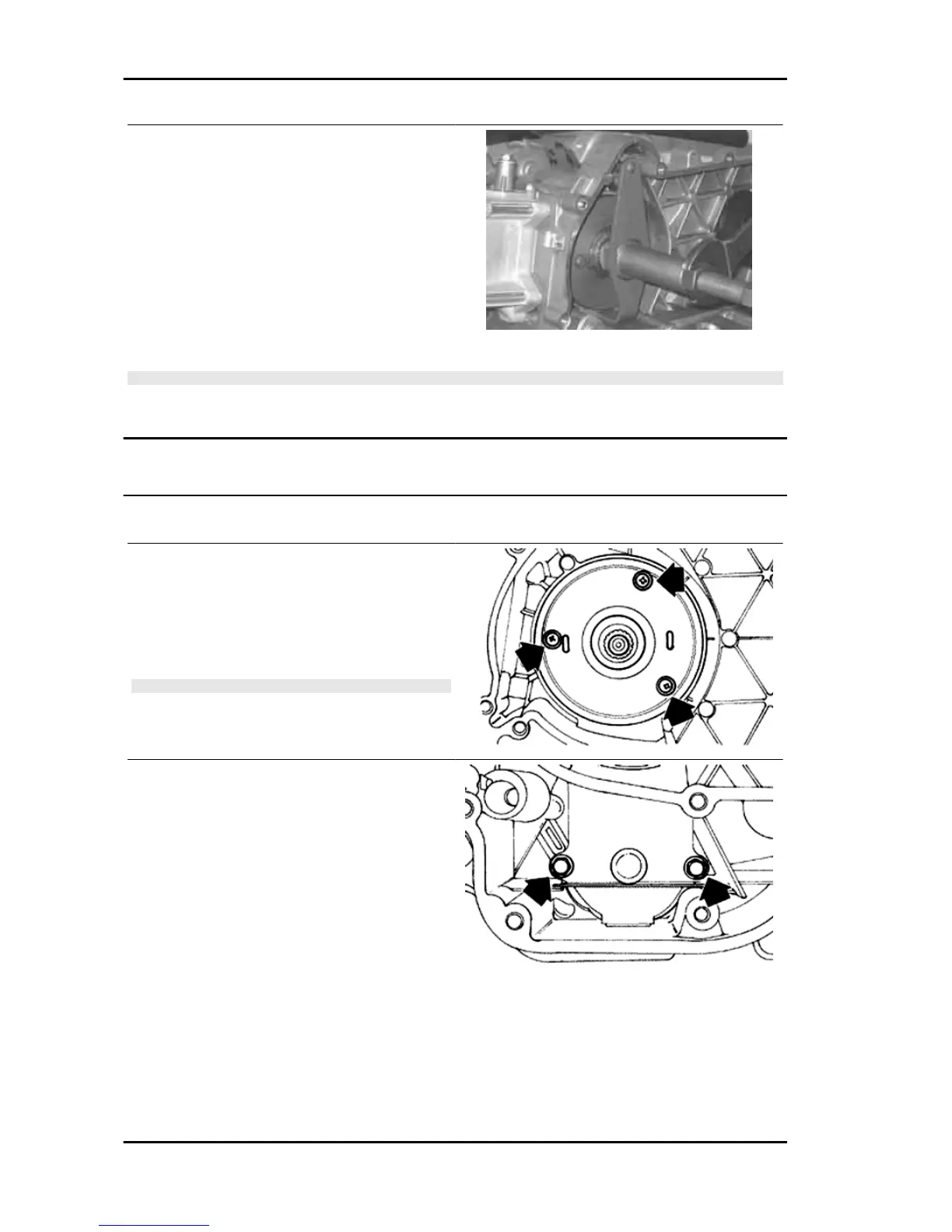

- Use the nut to move the base of the tool until you
can see end of the oil seal driving stroke
- Remove all of the tool components following the procedure in reverse order
CAUTION
FAILURE TO COMPLY WITH THIS ASSEMBLY PROCEDURE CAN SERIOUSLY DAMAGE THE
ENGINE DUE TO THE WRONG TENSIONING OF THE OIL PUMP CONTROL CHAIN.
Oil pump
Removal
- Remove the chain cover acting on the 3 retaining
screws as shown in the figure and the relevant
copper washer.
- Extract the cover using the appropriate appen-
dages.
N.B.
WITH THE AIM OF AVOIDING DAMAGING THE APPEN-
DAGES PRACTICE A RUN PARALLEL TO CRANKSHAFT.
- Remove the cover of the pump control pulley us-
ing the two retainers, as shown in the figure.
- Block the rotation of the oil pump control pulley
using a screwdriver inserted through one of its two
holes.
Engine Liberty 125 - 200 4tempi
ENG - 120

PIAGGIO Liberty 125 Specifications

General

Displacement	124 cc
Fuel System	Electronic Injection
Front Suspension	Hydraulic telescopic fork
Rear Brake	140 mm drum
Front Tire	90/80 - 16"
Rear Tire	100/80 - 14"
Wheelbase	1, 340 mm
Length	1, 945 mm
Width	690 mm
Seat Height	790 mm
Engine Type	Single cylinder, 4-stroke
Torque	10.4 Nm @ 8, 000 rpm
Cooling System	Air cooled
Transmission	CVT
Rear Suspension	Single shock absorber
Front Brake	240 mm disc
Fuel Tank Capacity	6 liters
Weight	124 kg
