- Secure the tube connection to the caliper with the
required torque.
- Before reassembly, the parts must be perfectly
clean and bear no traces of oil, diesel fuel,
grease, etc.. They must therefore be washed thor-
oughly in denatured alcohol before proceeding.
Immerse the seals in brake fluid; the use of pro-
tective agent PRF1 is tolerated.
CAUTION
RUBBER PARTS SHOULD NEVER BE LEFT IN ALCOHOL
FOR LONGER THAN 20 SECONDS.
AFTER WASHING, THE PIECES MUST BE DRIED WITH A
BLAST OF COMPRESSED AIR AND A CLEAN CLOTH.
Locking torques (N*m)
Screw tightening calliper to the support 20 ÷ 25
Calliper to tube connection 8 ÷ 12 Nm
1 DUST GUARDS
2 SEALING RINGS
3 PLUNGERS
4 O-RING GASKET

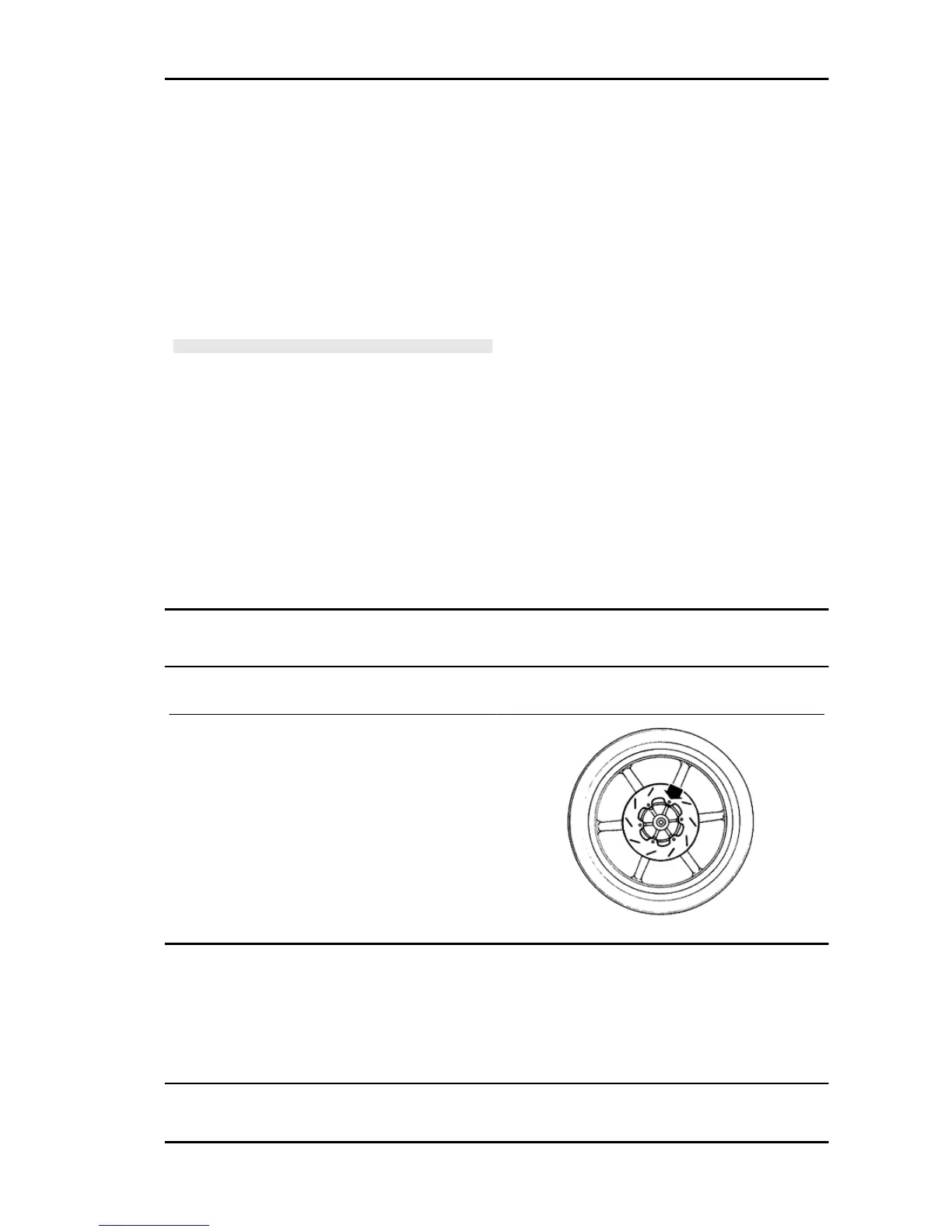

Front brake disc
Removal
- Remove the front wheel loosening the axle
clamp.
-Remove the six fastenings of the disc.
Refitting
-When refitting, position the disc correctly making sure that it rotates in the right direction.
Locking torques (N*m)
Disc tightening screw 8 - 12
Liberty 125 - 200 4tempi Braking system
BRAK SYS - 147

PIAGGIO Liberty 125 Specifications

General

Displacement	124 cc
Fuel System	Electronic Injection
Front Suspension	Hydraulic telescopic fork
Rear Brake	140 mm drum
Front Tire	90/80 - 16"
Rear Tire	100/80 - 14"
Wheelbase	1, 340 mm
Length	1, 945 mm
Width	690 mm
Seat Height	790 mm
Engine Type	Single cylinder, 4-stroke
Torque	10.4 Nm @ 8, 000 rpm
Cooling System	Air cooled
Transmission	CVT
Rear Suspension	Single shock absorber
Front Brake	240 mm disc
Fuel Tank Capacity	6 liters
Weight	124 kg
