3.36
9929422 R02 - 2017-2019 ACE 900 Service Manual
© Copyright Polaris Industries Inc.

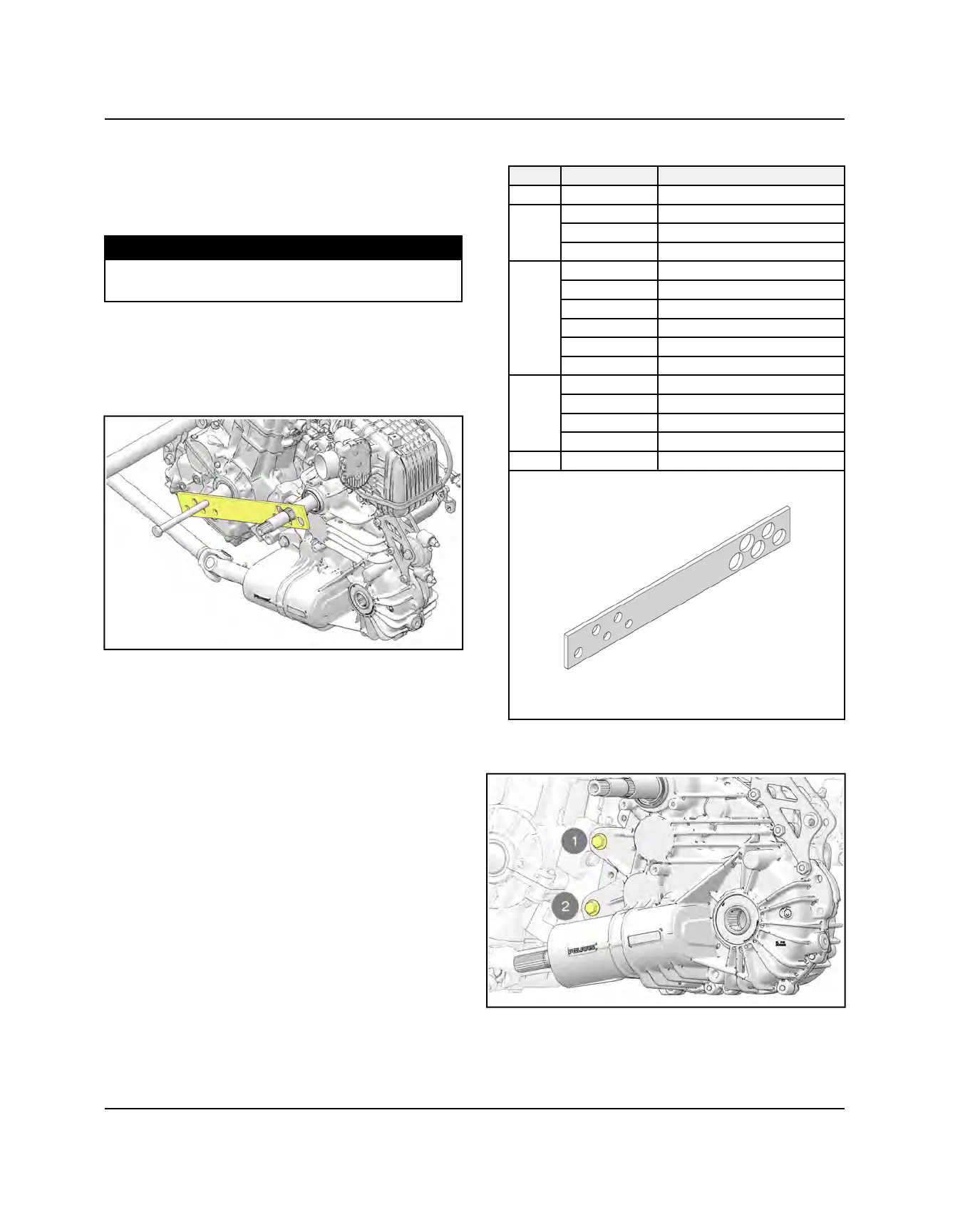

ENGINE INSTALLATION
1. Carefully install the engine in the frame.
2. Install the four bolts retaining the engine to the front
engine mount. Torque bolts to specification.
TORQUE
Engine Mounting Bolts (front):
40 ft-lbs (54 Nm)
3. Loosely install engine / transmission mounting bolts
and washers.
4. Install the Clutch Center Distance tool (PU-50658-A)
onto the crankshaft and transmission input shaft to
properly position the clutch center distance.
PU-50658–A
HOLE
YEAR
VEHICLE DESCRIPTION
1 2012 RZR 570
2
2011-14 RZR 900
2014-15 RZR XP 1000
2013
RANGER 900
3
2014-16 ACE
2015-19
ACE 570
2015-16 RGR ETX
2013–19 RZR 570
2014–19
RANGER 500/570
2015-19 RANGER 570 Full-Size
4
2014-19
RANGER 900/1000
2015-19 RZR 900
2016-19 RZR 1000
2016–19
ACE 900
5 2015-18 RANGER Diesel
i.e. 2015 RZR 900 uses the holes marked with a 4
5. Tighten the two longer bolts into left side mounting
holes. Top first, then bottom.
ENGINE / COOLING SYSTEM
