5
9929422 R02 - 2017-2019 ACE 900 Service Manual
© Copyright Polaris Industries Inc.
5.25

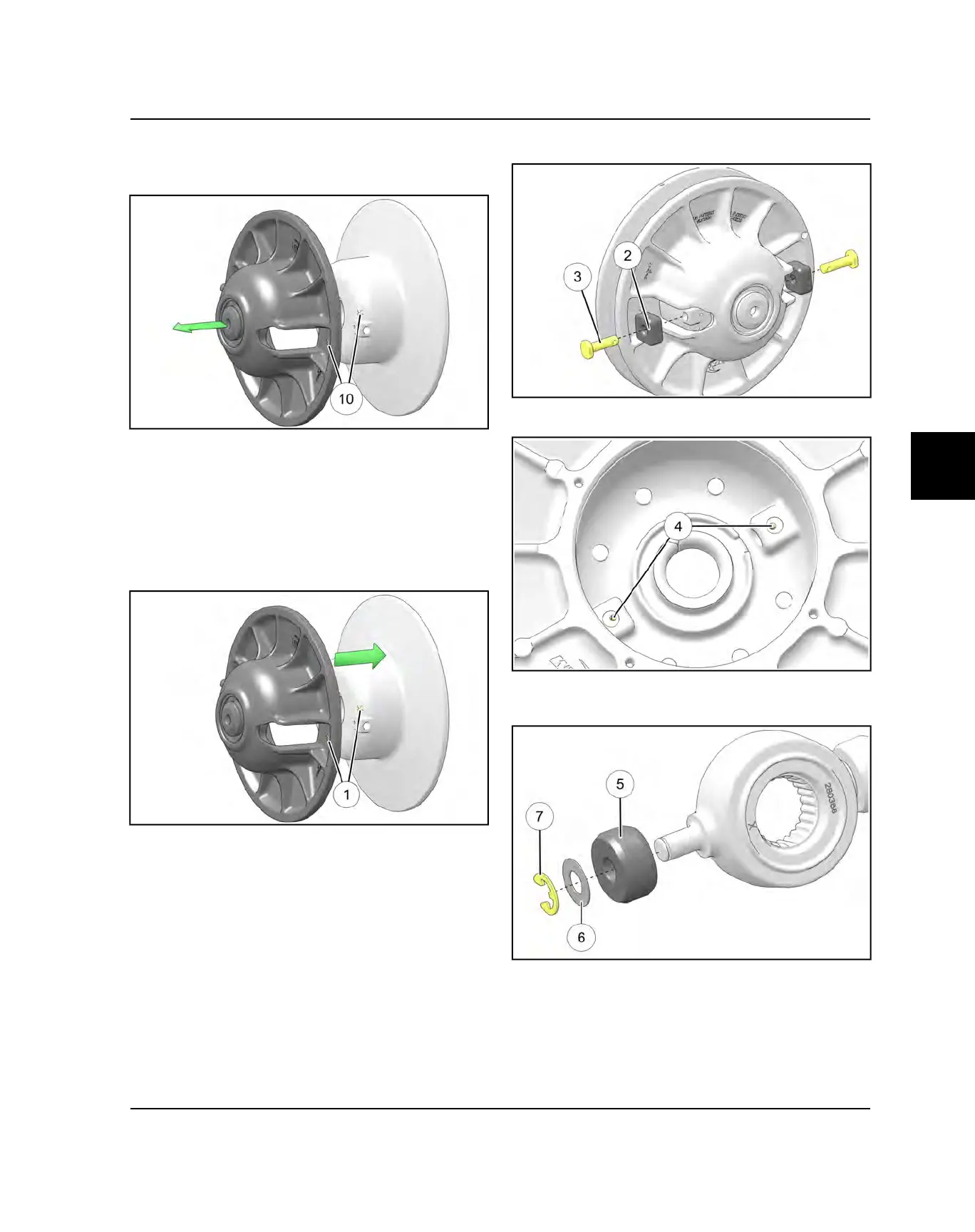

10.Separate the stationary sheave from the moveable
sheave. Note the X’s
a
on the stationary and fixed
sheaves for reassembly.
11. Inspect the clutch bushings for wear. If there is heavy
wear on the bushings, replace the clutch assembly.
12.Inspect the sheaves for excessive wear or damage.
DRIVEN CLUTCH ASSEMBLY
1. Align the X’s
q
on the moveable and stationary
sheaves.
2. Install the square sliders
w
and slider pins
e
.
3. Install the spring pins
r
to retain the slider pins.
4. If removed, install the rollers
t
, washers
y
and E-
clips
u
onto the spider.
PVT SYSTEM
To Next Page
